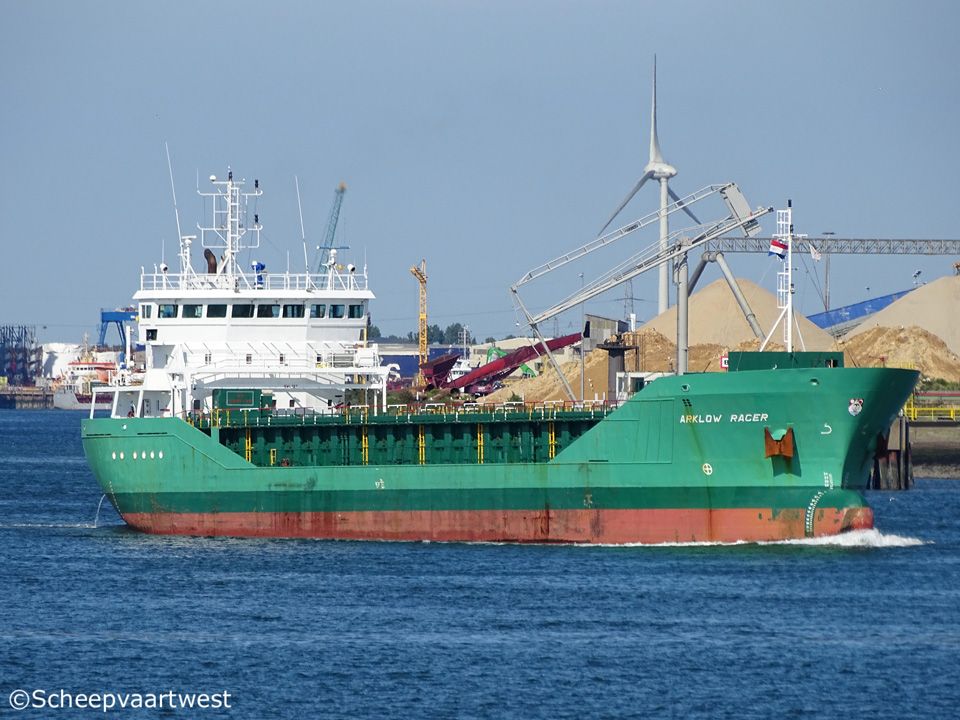

Arklow Racer 01

Vlissingen 17 July 2017

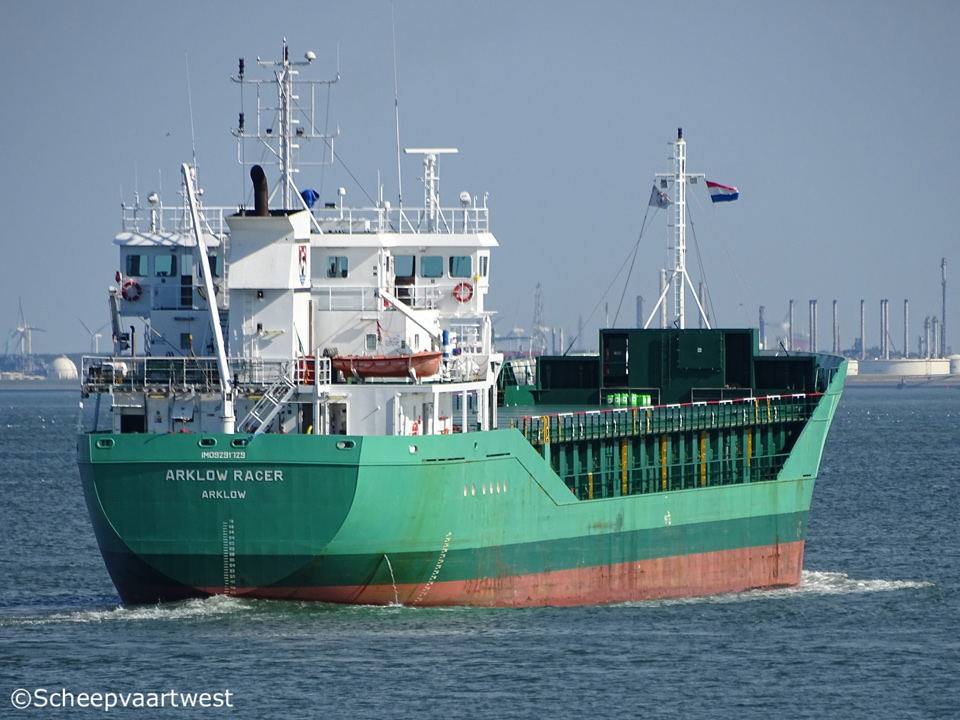

Arklow Racer 04
17/07/17



Name

ARKLOW RACER

Type

General cargo ship - Heavycargo

IMO-number

9291729

Call sign

EIQM

Flag

Ireland

Port of registry

Arklow

GT

2.999 t

DWT

Summer: 4.485 m

NT

1.639 t

Number of 20ft containers

In hold: 102

On deck: 36

Total: 138

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,18 m extreme

Draught

Summer: 6,10 m

Air draft

Min: 20,60 m

Freeboard

800 mm

Depth

7,15 m moulded

Speed

11,5 knots

Built

2004

Date of completion

18/11/2004

Builder

Barkmeijer Stroobos B.V.
Strooibos

The Netherlands

Yard number

305

Hull material

Steel

Watertight compartments

5

Movable bulkheads

2x Portable bulkheads may be placed in 9 positions for cargo separation

Continuous decks

1

Main engine

1x Mak 6M25 - 4 stroke 6cylinder 255 x 400 mm combustion engine 1.499 kW at 750 rpm

Built: 2004

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x HCM534D2 - 435 kVA - 348 kW

Generators

2x Valmet 634 DSG main diesel generatorsets each 175 kVA - 140 kW - 204 hp

Bow thruster

1x 250 kW

Number of holds

2

Total capacity of holds

Grain & Bale

5.873 m³ / 207.391 ft³ inc. bulkheads

5.849 m³ / 206.541 ft³ bulkhead stowed midships

Hatch type

Roden steel pontoon system

Max permitted loads

Maximum hatch top loading: 1,5 t/m²

Maximum tank top loading: 15,0 t/m²

Tank capacities

Ballast: 1.945 m³

HFO: 121,28 m³

Gas oil: 35,84 m³

Fresh water: 88 m³

Lub oil: 8,0 m³

Manager

Arklow Shipping
N Quay, Ferrybank, Arklow
Co. Wicklow
Ireland

Registered owner

Invermore Shipping Ltd.
North Quay

Arklow

Ireland

Latest data adjustment

28 March 2018
