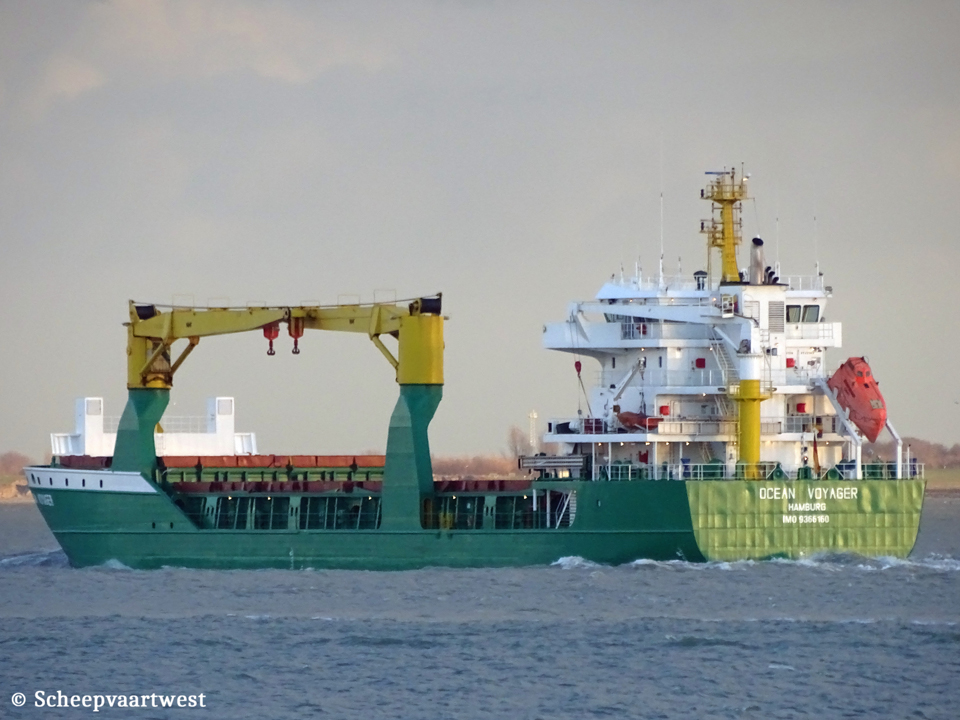

Terneuzen, The Netherlands 21 August 2017 |
 |
 |
|
| Terneuzen 21/08/17 | Westerschelde 19/01/18 | |
|
Name |
OCEAN VOYAGER |
|
Previous names |
2012 - 2012 Ou Zho Hang Huai 2012 - 2013 Ou Zhou Hang Hua Jia 2013 - 2013 Bremer Fortuna 2013 - 05/2014 European Voyage |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo MPC 68 type |
|
IMO-number |
9366160 |
|
Call sign |
DJFS2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
Previous flags |
2012 - 2013 Republic of Panama, Panama City |
|
GT |
6.668 t |
|
DWT |
Summer: 9.321 t |
|
NT |
3.625 t |
|
Number of 20ft containers |
132 |
|
Length |
107,08 m overall 102,97 m between perpendiculars |
|
Breadth |
18,20 m |
|
Draught |
8,00 m |
|
Depth |
10,50 m |
|
Speed |
Max: 15,0 knots |
|
Built |
2012 |
|
Keel laid |
10/06/2008 |
|
Launch date |
12/12/2011 |
|
Date of completion |
29/06/2012 |
|
Builder |
Zhejiang Zhenyu Shipbuilding Co., Ltd. Xiangshan China |
|
Yard number |
MPC68-5 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 8M32C - 8 cylinder combustion engine 3.840 kW / 5.220 hp at 600 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller Manufacturer: Schottel Schiffsmaschinen GmbH |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
2x MAN D2840LE 301 main diesel generatorsets |
|
Emergency generator |
1x MAN D0824LE 201 diesel generatorset |
|
Cargo hold capacity |
12.120 m³ |
|
Tank capacities |
Fuel oil: 705 m³ Fresh water: 137 m³ Ballast: 2.985,7 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 46 mm |
|
Cargo gear |
2x Electro-hydraulic NMF board crane TYPE PKL 60014/35024 Arranged at port side: SWL 60 t at 3,00 to 14,00 m outreach SWL 35 t at 2,40 to 24,00 m outreach Lifting height about: 37,50 m |
|
Manager |
Rörd Braren Bereederungs-GmbH & Co. KG Bielenberg 18 25377 Kollmar Germany |
|
Registered owner |
MS "MICHAEL BRAREN" GmbH & Co. KG |
|
Renamed |
05/2019 - 07/2001 Eems Voyager Germany, Hamburg - Call sign: DJFS2 Manager: Amasus Shipping B.V., Delfzijl - The Netnerlands 07/2021 Coe Anna Germany, Hamburg - Call sign: DJFS2 Owner: MS "MICHAEL BRAREN" GmbH & Co. KG Manager: Rörd Braren Bereederungs-GmbH & Co. |
|
Latest data adjustment |
20 March 2018 |
