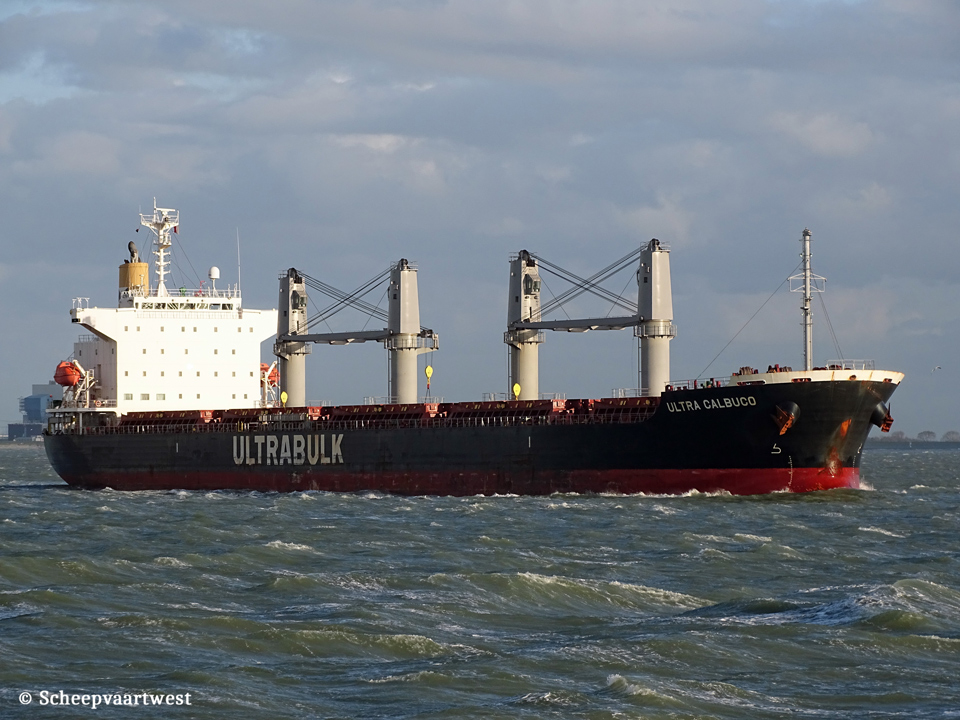

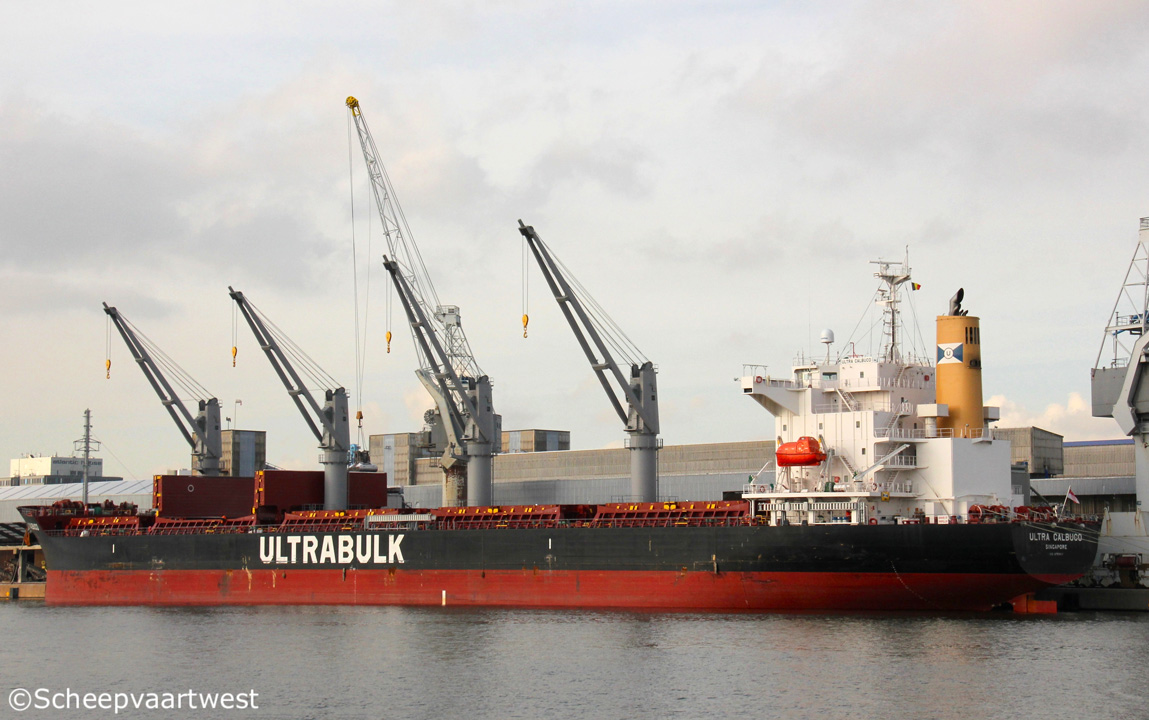

Ultra Calbuco 01

Antwerpen 20 January 2018



Name

ULTRA CALBUCO

Type

Bulk carrier - Strengthened for heavy cargo loading - handysize

IMO-number

9791937

Call sign

9V5368

Flag

Republic of Singapore

Port of registry

Singapore City

GT

23.234 t registered

DWT

37.981 t

NT

12.101 t registered

Length

180,00 m

Breadth

29,80 m

Draught

Summer: 10,54 m

Moulded L x B x D

173,00 x 29,80 x 15.00 m

Registered L x B x D

173,52 x 29,80 x 15.00 m

Freeboard

Summer: 4.500 mm

Speed

Max: 15,9 knots

Built

2017

Keel laid

19/05/2015

Launch date

24/12/2016

Date of completion

24/02/1017

Builder

I-S Shipyard Co., Ltd. Head Office (Imabari Shipbuilding Co. Ltd.)
332 Honjo, Yoshiumi-cho
Imabari, Ehime

Japan

Yard number

A111

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 6.780 kW at 108,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 450 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler- 8,0 bar

Evaporation: 1,94 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.715 kVA

Cargo hold capacity

Bale: 45.238,33 m³

Grain: 46.994,86 m³

Tank capacities

Fuel oil: 1.945,85 m³

Fresh water: 294,84 m³

Manager

Ultraship ApS
Smakkedalen 6
2820 Gentofte
Denmark

Registered owner

Ultrabulk Shipholding (Singapore) Pte Ltd.

Latest data adjustment

06 March 2018
