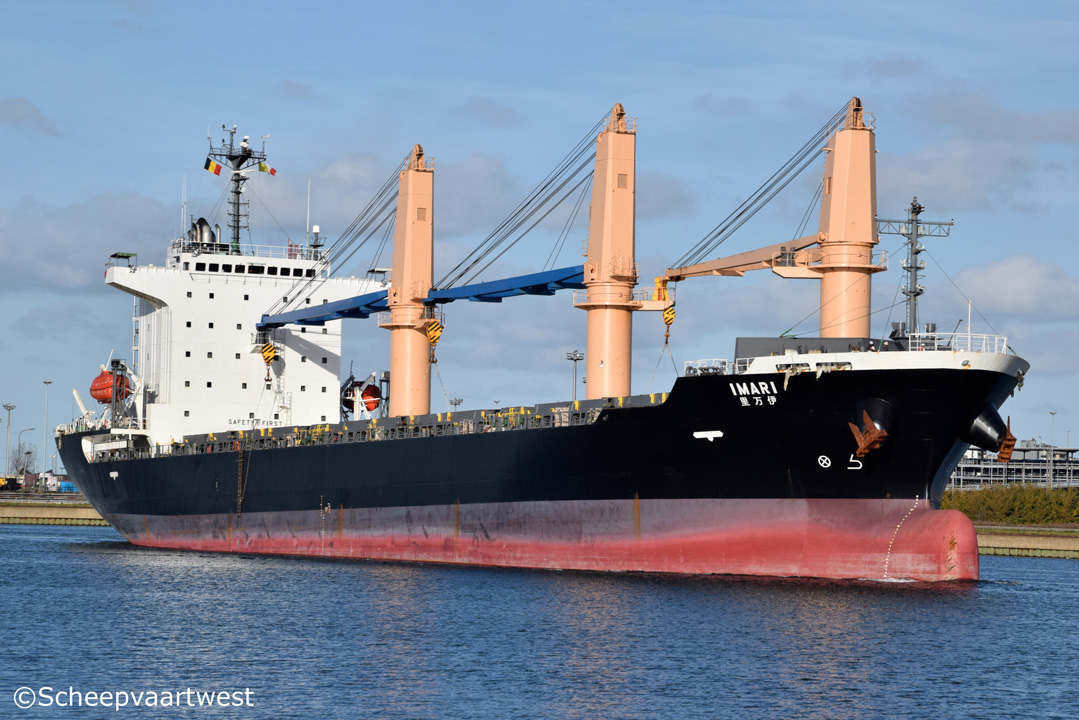

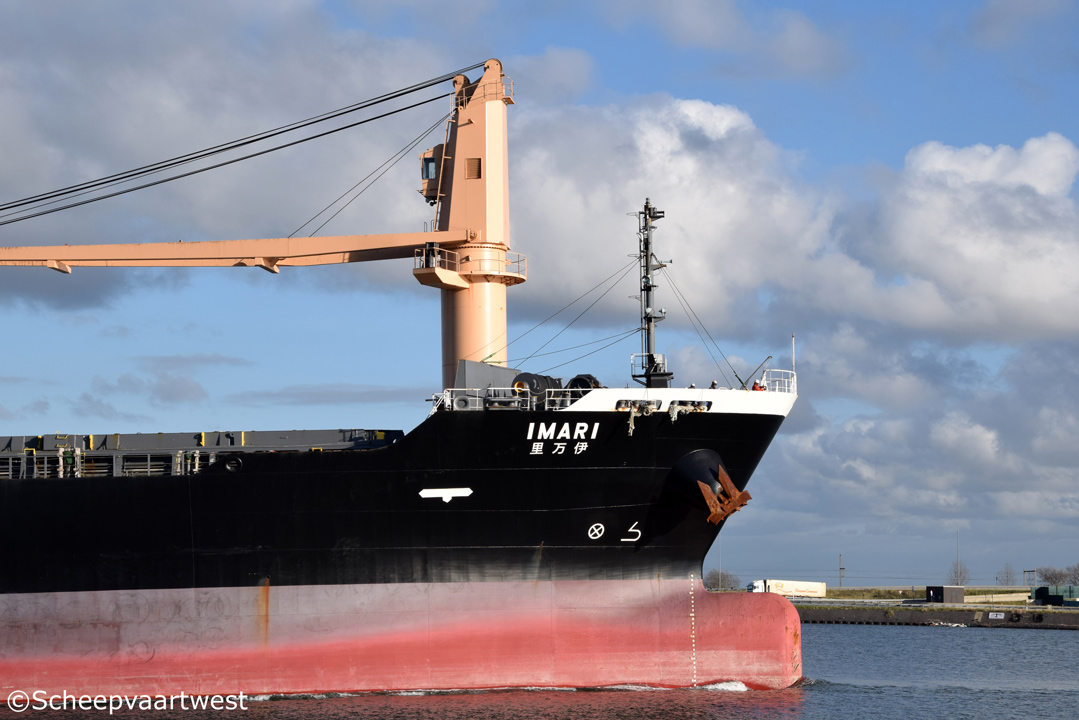

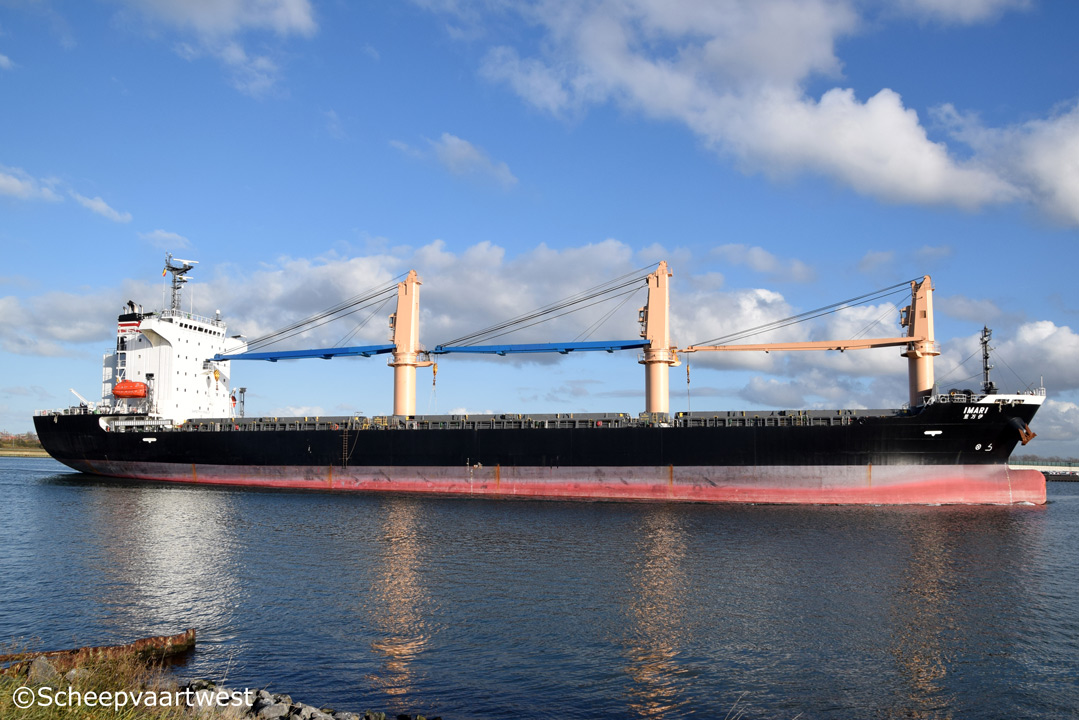

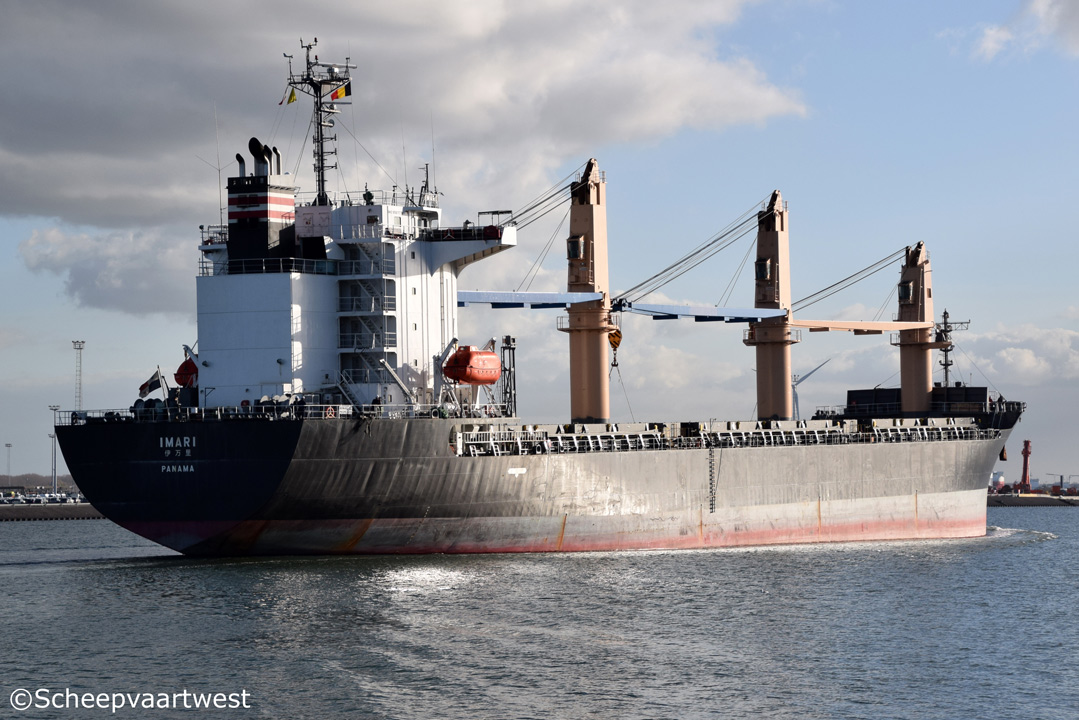

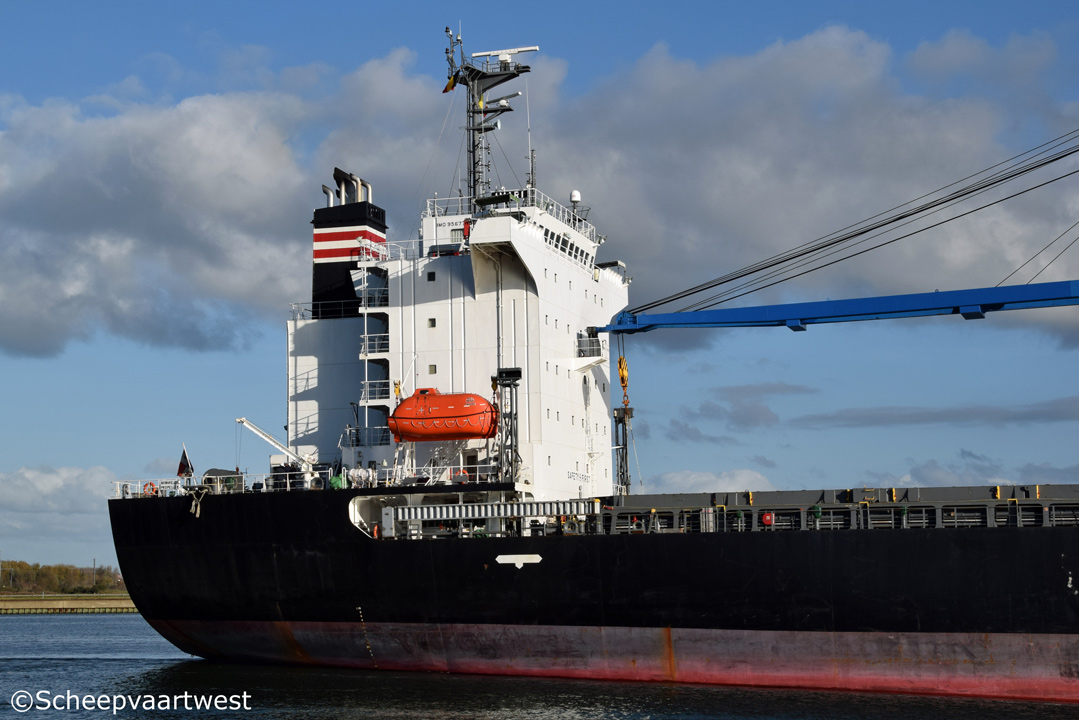

Zeebrugge 17 November 2017 |
 |
 |
 |
 |
|||
| Zeebrugge 17/11/17 | Zeebrugge 17/11/17 | Zeebrugge 17/11/17 | Zeebrugge 17/11/17 |
|
Name |
IMARI |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9567776 |
|
Call sign |
3EZI9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
14.122 t registered |
|
DWT |
Summer: 20.360 t |
|
NT |
7.145 t registered |
|
Number of 20ft containers |
568 |
|
Length |
145,00 m overall |
|
Breadth |
25,00 m |
|
Draught |
9,66 m |
|
Moulded L x B x D |
136,00 x 25,00 x 14,30 m |
|
Registered L x B x D |
137,02 x 25,00 x 14,30 m |
|
Freeboard |
Summer: 4.666 mm |
|
Depth |
14,30 m moulded |
|
Speed |
Max.: 17,0 knots Service: 14,5 knots |
|
Built |
2012 |
|
Keel laid |
27.12.2010 |
|
Launch date |
14.12.2011 |
|
Date of completion |
17.04.2012 |
|
Builder |
Shitanoe Zosen K.K. (Shitanoe Shipbuilding Co., Ltd.) |
|
Yard number |
1300 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine 6.480 kW / 8.813 hp at 136,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x oil lubrication shaft without monitoring device Diameter: 430 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,14 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 544 kW |
|
Cargo hold capacity |
Bale: 27.764 m³ Grain: 29.457 m³ |
|
Tank capacities |
Fuel oil: 1.321 m³ Fresh water: 331 m³ |
|
Cargo gear |
2x Cranes - SWL 50,0 t each 1x Crane - SWL 30,0 t |
|
Manager |
Trimaran Ship Management Ltd. Japan |
|
Registered owner |
Mercury Navigation S.A. Panama City |
|
Latest data adjustment |
07 December 2017 |
