Westerschelde 02 July 2016 |
 |
 |
|
| Antwerpen 29/07/19 | Westerschelde 24/09/18 |
|
Name |

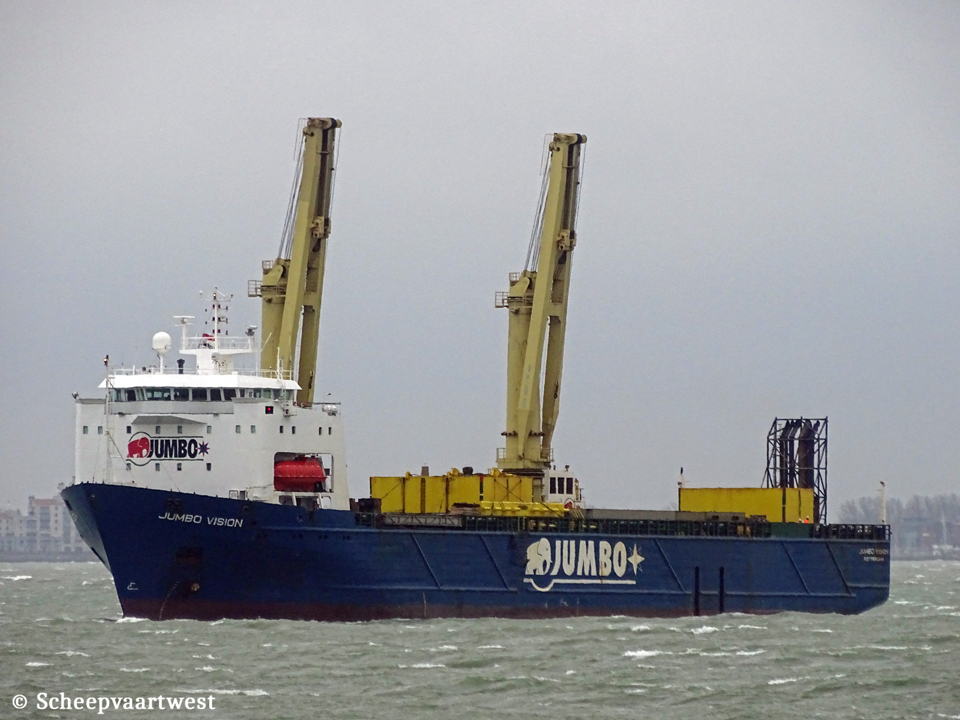

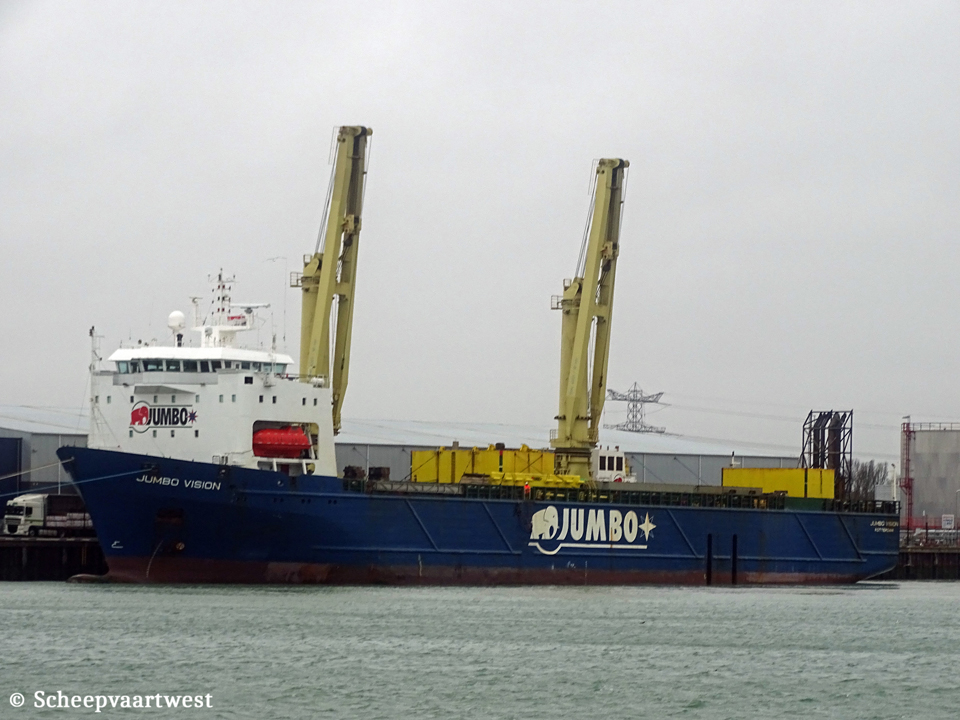

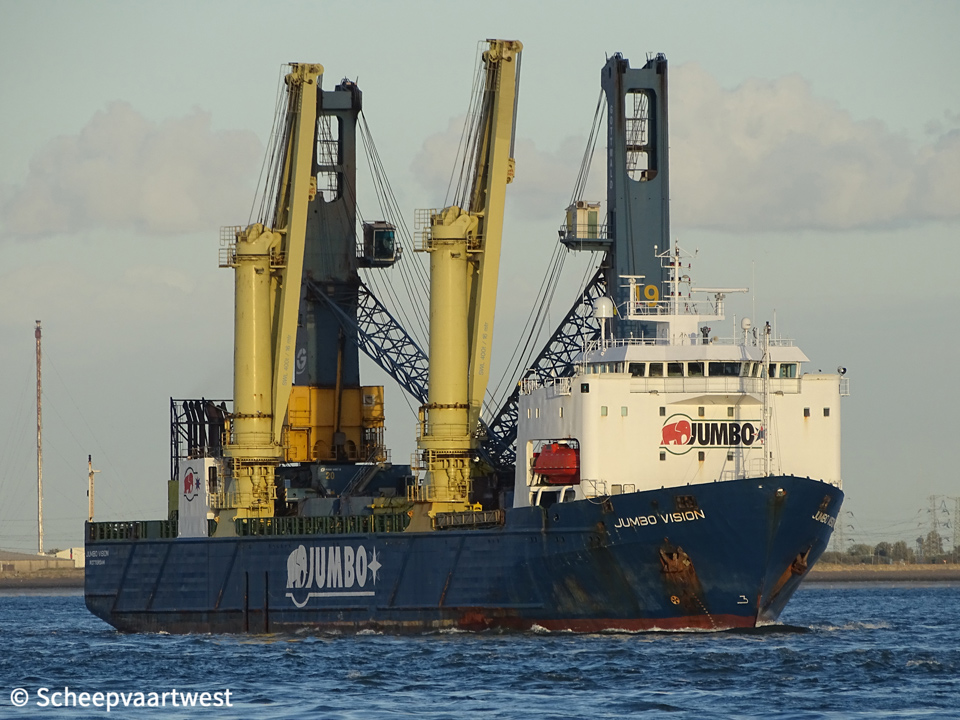

JUMBO VISION |
|
Type |
General cargo ship - Heavy load carrier - Strengthened for heavy cargoes - Bottom strengthened for loading Type H800 class |
|
IMO-number |
9153642 |
|
Call sign |
PBBG |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
7.966 t Suez: 8.111 t |
|
DWT |
Summer: 6.993 t |
|
NT |
2.389 t Suez: 6.726 t Panama: 6.741 t |
|
Number of 20ft containers |
340 |
|
Length |
110,49 m overall 102,50 m between perpendiculars |
|
Breadth |
20,90 m extreme |
|
Draught |
Max: 7,72 m |
|
Air draft |
36,40 m above keel, jibs & derricks down |
|
Depth |
13,50 m moulded |
|
Speed |
14,50 knots |
|
Built |
2001 |
|
Keel laid |
01/12/1999 |
|
Launch date |
29/04/2000 |
|
Date of completion |
21/02/2001 |
|
Builder |
Madenci Gemi Sanyii Karadeniz-Eregli Turkey |
|
Yard number |
17 |
|
Hull material |
Steel |
|
Continuous decks |
3 |
|
Main engine |
1x MAN B&W 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm combustion engine 4.900 kW / 6.664 bhp Manufacturer: MAN-B&W Diesel A/S, Copenhagen - Denmark |
|
Propellers |
1x Fixed propeller |
|
Bow thruster |
1x Lips 610 kW |
|
Number of holds |
1 Lower hold: 58,65 x 15,18 x 7,28 m Tween deck: 72,75 x 15,18 x 4,09 m Hold total height: 12,17 m |
|
Cargo hold capacity |
Bale: 11.576 m³ Bale: 10.977 m³ with tween decks in holds |
|
Number of hatches |
1 |
|
Number of tween decks |
1x (flush) adjustable in height |
|
Free deck space |
1.500 m² |
|
Max. permitted loads |
Tanktop: 12,0 t/m² Tween deck: 4,25 t/m² Hatch covers: 4,25 t/m² |
|
Tank capacities |
HFO: 800 t MGO: 115 t Fresh water: 167 t |
|
Cargo gear |
2x Huisman cranes - SWL 400 t each Combined: 800 t Auxiliary hoist: 2x 25 t each |
|
Manager |
Kahn Special Transport B.V. Rotterdam The Netherlands |
|
Previous managers |
2001 - 2008 Kahn Scheepvaart B.V., Rotterdam - The Netherlands |
|
Owner |
Jumbo Maritime Rotterdam The Netherlands |
|
Registered owner |
Jumbo Vision B.V. Rotterdam The Netherlands |
|
Previous names & owners |
2001 - 2008 Kahn Special Transport B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
22 Janaury 2020 |
