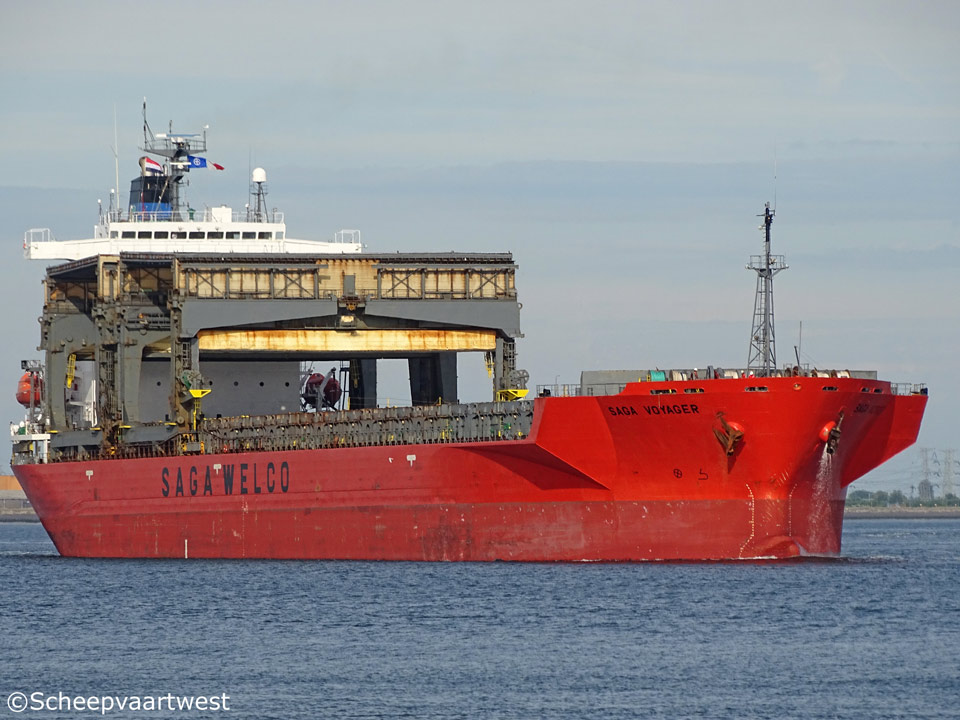

Saga Voyager 01

Westerschelde 02 June 2017

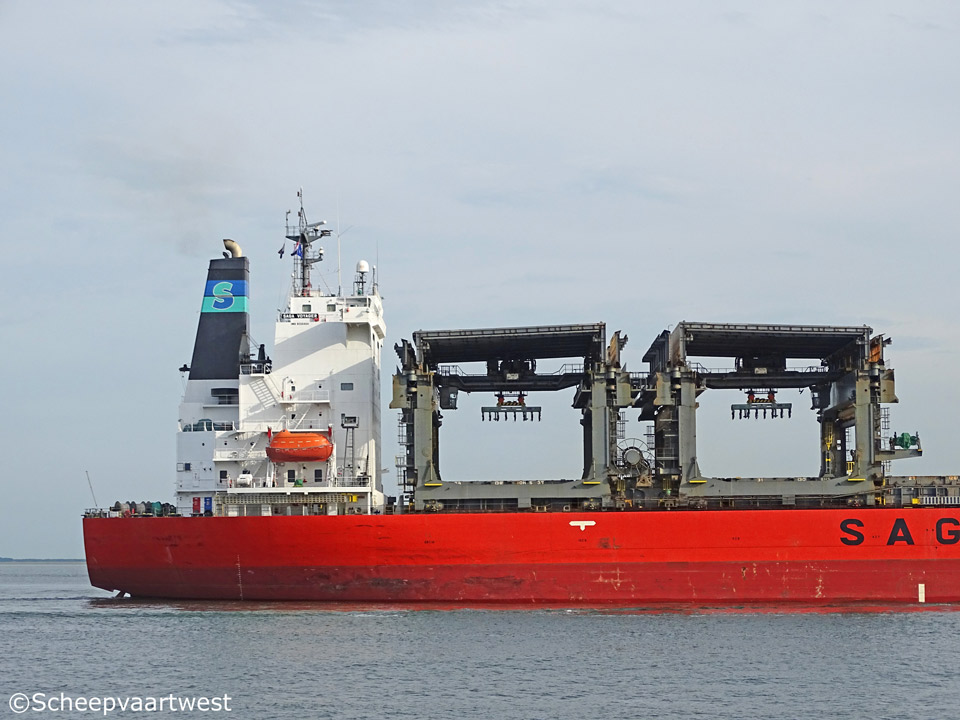

Saga Voyager 02
Westerschelde 02/06/17



Name

SAGA VOYAGER

Type

General Cargo - Single deck

IMO-number

9233454

Call sign

VRXL8

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

29.967 t

DWT

Summer: 46.882 t

NT

14.882 t

Number of 20ft containers

On deck: 400

In hold 360

Total: 760

Length

199,20 m overall

190,00 m between perpendiculars

Breadth

30,57 m extreme

Draught

11,82 m

Depth

16,40 m

Speed

Max.: 18,3 knots

Built

2001

Keel laid

30.05.2001

Launch date

19.09.2001

Date of completion

13.12.2001

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10307

Hull material

Steel

Bulkheads

Transverse: 13

Longitudinal: 2

Main engine

1x Wärtsilä 7RTA52 - 7 cylinder diesel engine

Manufacturer: Wärtsilä NSD Switzerland Ltd.

Propellers

1x Mono-block propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler, composite

Manufacturer: Aalborg Industries A/S

Generators

3x Daihatsu 6DK-20 main diesel generatorsets

Manufacturer: Daihatsu Diesel Mfg. Co., Ltd.

Emergency generator

1x Mitsui diesel generatorset

Number of cargo holds

10

Cargo hold capacity

Hold 1: 3.607 m³ / 127.380 ft³
Hold 2: 5.099 m³ / 180.069 ft³
Hold 3: 5.659 m³ / 199.846 ft³
Hold 4: 5.659 m³ / 199.846 ft³
Hold 5: 5.659 m³ / 199.846 ft³
Hold 6: 5.659 m³ / 199.846 ft³
Hold 7: 5.659 m³ / 199.846 ft³
Hold 8: 5.659 m³ / 199.846 ft³
Hold 9: 5.659 m³ / 199.846 ft³
Hold 10: 4.913 m³ / 173.501 ft³

Total: 53.232 m³ / 1.879.872 ft³

Number of hatches covers

10

Tank capacities

Ballast: 16.626,2 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Cargo gear

2x Travelling gantry cranes with weather protection - SWL 42,0 t each

Crew size

27

Manager

Anglo-Eastern Ship Management Ltd.

Operator

Saga Welco

Tenvikveien 373-375
3140 Nøtterøy
Norway

Owner

Saga Forest Carriers International
Notteroy
Norway

Registered owner

Saga Shipholding (Norway) AS

Latest data adjustment

26 July 2017
