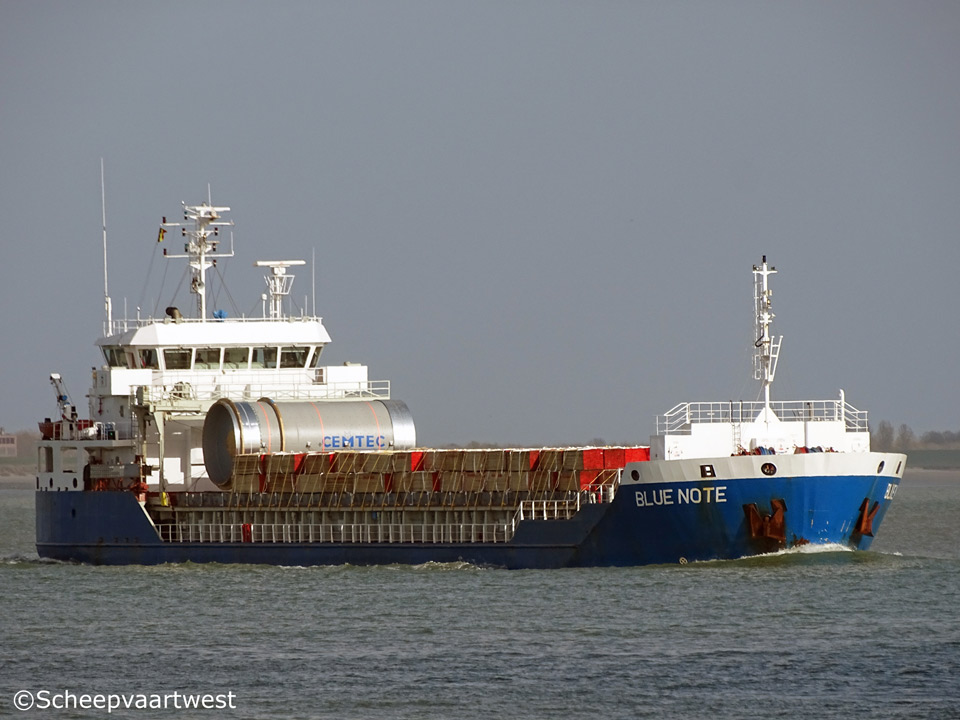

Blue Note 01

Westerschelde 06 April 2017



Name

BLUE NOTE

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo
Box-shaped - Single decker

IMO-number

9491915

Call sign

V2EU8

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.845 t

DWT

Summer: 5.203,06 t

DWCC

Summer: 4.950 t

Winter: 4.785 t

NT

1.590 t

Number of 20ft containers

In hold: 120

On deck: 70

Total: 190

Length

89,97 m overall

84,95 m between perpendiculars

Breadth

15,64 m extreme

15,40 m moulded

Draught

Summer: 6,13 m

Winter: 6,00 m

Air draft

22,30 m in ballast

Depth

7,61 m moulded

Speed

11,8 knots

Built

2010

Keel laid

01.12.2008

Launch date

09.08.2009

Date of completion

27.05.2010

Builder

Israel Shipyards Ltd.

Haifa
Israel

Yard number

2026

Hull material

Steel

Movable bulkheads

2x Movable bulkheads (can be put as part tweendeck at after end of hold)

Main engine

1x MAN 6L27/38 - 4 stroke 6 cylinder diesel engine 2.040 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

Shaft generator

1x 430 kVA

Generators

2x MAN D2866 LXE30 main diesel generatorsets each 250 kVA

Emergency generator

1x MAN D0824 LE201 diesel generatorset 130 kVA

Bow thruster

1x 250 kW

Number of holds

1

54,60 x 12,6 x 8,40 m height - 53,60 m clear length with bulkheads aft

Hold capacity

Grain / Bale: 198.216 ft³ - 5.946 m³

Number of hatches

1

54,60 x 12,60 m

Max. Permitted loads

Tanktop: 15,0 t/m²

Deck: 1,75 t/m²

Tank capacities

Ballast: 2.146 m³

Anchor equipment

Length: 467,35 m

Diameter: 38 mm

Cargo gear

Gearless

Crew

8

Manager

Mastermind Shipmanagement d.o.o.
Šuranj 248
85330 Kotor
Montenegro

Operator

Pool-Carriers schiffahrtsgesellschaft mbH & Co. KG

Zirkusweg 1
20359 Hamburg
Germany

Registered owner

Blue Note GmbH & Co. KG

Latest data adjustment

30 July 2017
