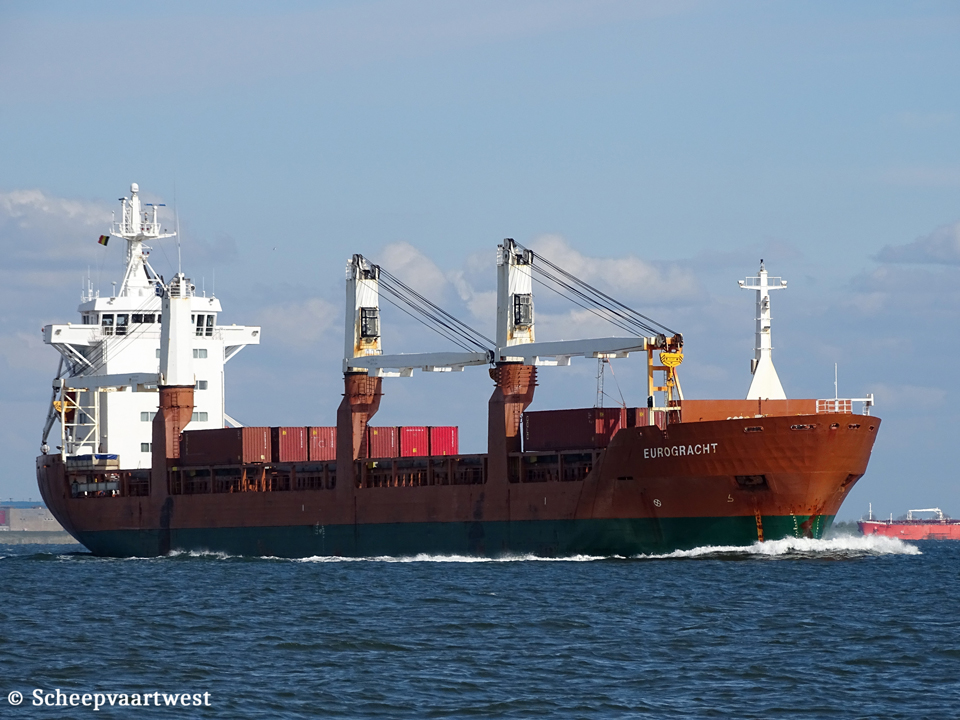

Eurogracht IMO 9086253 02

Westerschelde 27 April 2017

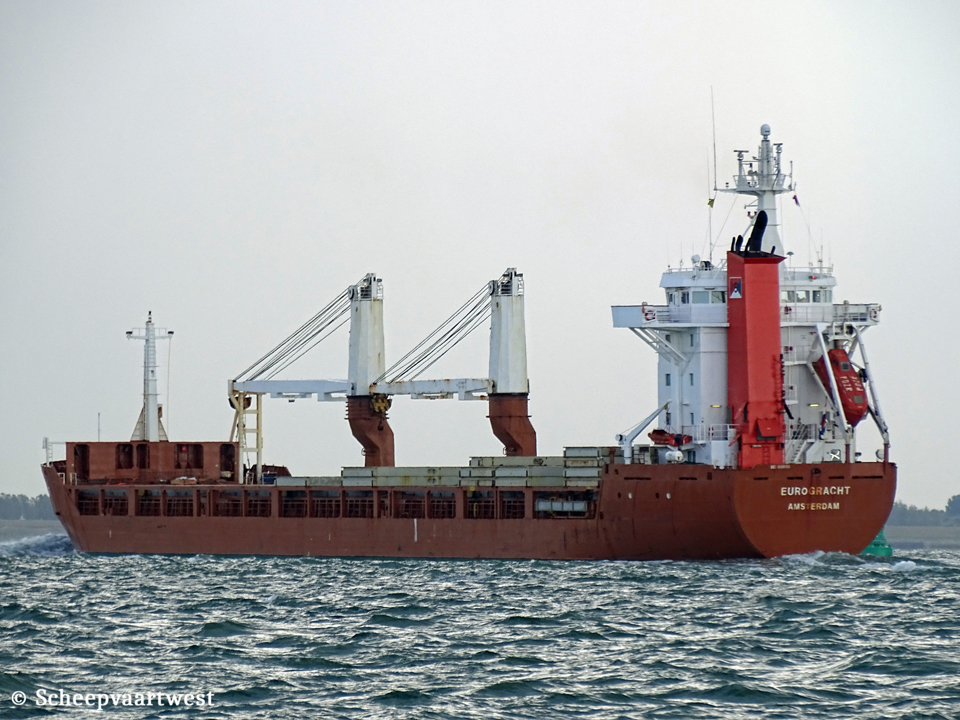

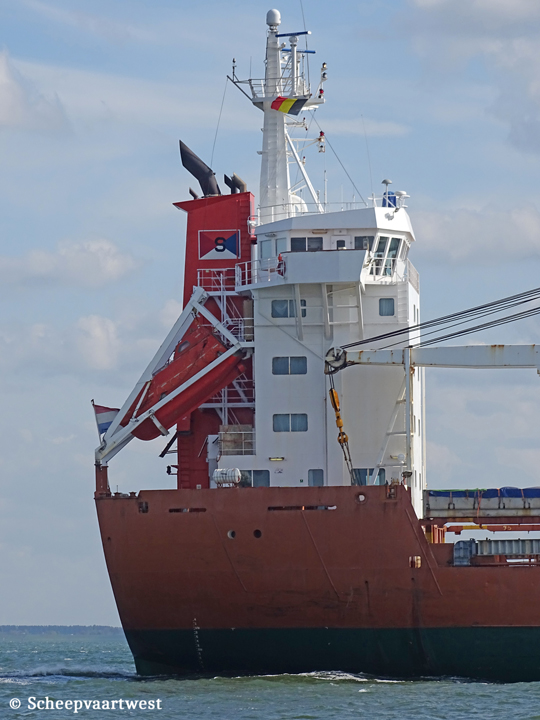

Eurogracht IMO 9086253 03   Eurogracht 01   Eurogracht IMO 9086253 04
WS 27/04/17   Anrwerpen 15/02/17   Westerschelde 01/10/16


Name

EUROGRACHT

Type

Multi-purpose cargo vessel

IMO-number

9086253

Call sign

PDZR

Flag

The Netherlands

Port of registry

Amsterdam

GT

8.448 t

DWT

12.754 t excl. tweendeck

12.324 t incl. tweendeck

NT

4.651 t

Number of 20ft containers

In hold: 296

On deck: 434

Total: 730

Number of 40ft containers

In hold: 136 + 24 TEU

On deck: 186 + 62 TEU

Total: 322 + 86 TEU

Reefer capacity

50

Length

137,16 m overall

127,14 m between perpendiculars

Breadth

19,01 m extreme

18,90 m moulded

Draught

Summer: 8,52 m

Depth

11,75 m moulded

Height lower hold as TWD

3,19 or 6,35 or 8,85 m

Height tween deck as TWD

7,85 or 4,70 or 2,20 m

Speed

14,5 knots

Max.: 16,0 knots

Built

1995

Keel laid

08/1994

Launch date

26/01/1995

Date of completion

13/03/1995

Builder

Ulstein Mek. Verksted A/S

Ulsteinvik

Norway

Yard number

245

Hull material

Steel

Hull type

Single hull

Bulkheads / Compartments

Removable pontoons for up to 11 compartments

at TEU interval

Number of decks

2

Main engine

1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 hp

Manufacturer: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland

Propellers

1x Fixed pitch propeller

Shaft generator

1x 600 kW

Generators

3x Main diesel generatorset each 320 kW

Bow thruster

1x 500 kW / 700 hp

Cargo hold capacity

Grain/Bale: 558.678 ft³ - 15.820 m³

Timber

17.500 m³ length packages

Hold ventilation

30x Air changes p/h

Number of hatches

Weather deck:

Hatch 1: 26,60 x 15,80 m

Hatch 2: 31,74 x 15,80 m

Hatch 3: 26,60 x 15,80 m

hatch type: Steel, end folding type

Tween deck:

Hatch 1: 28,00 x 15,80 m

Hatch 2: 61,84 x 15,80 m

Consisting: 17 steel pontoons

11x 6,35 x 15,80 m

2x 4,36 x 15,80 m

3x 3,19 x 15,80 m

1x 1,92 x 15,80 m

Floor space

Tanktop: 1.280 m²

Tween deck: 1.430 m²

Weather deck: 1.617 m²

Max. permitted loads

Weather deck hatch covers: 1,75 t/m²

Tweendeck hatch covers: 4,0 t/m²

Tanktop: 20,0 t/m²

Tank capacities

Fuel oil: 1.338 m³

Diesel oil: 173 m³

Ballast water 4.044 m³

Cargo gear

3x Deck cranes on starboard side

60 t SWL/16,00 m each

40 t SWL/24,00 m each

Manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Registered owner

Rederij Eurogracht

Care of Spliethoff's Bevrachtingskantoor BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Previous owners

03/1995 - 07/2004 Briki Shipping N.V., Amsterdam - The Netherlands

07/2004 - 07/2012 C.V. Scheepvaartonderneming Eurogracht, Amsterdam - The Netherlands

Renamed

07/2021 Taibola

Russia, Archangel (Arkhangelsk) - Call sign: UBLW5

Owner & manager: TK Nord Project LLC, Archangel (Arkhangelsk) - Russia

Latest data adjustment

06 August 2023
