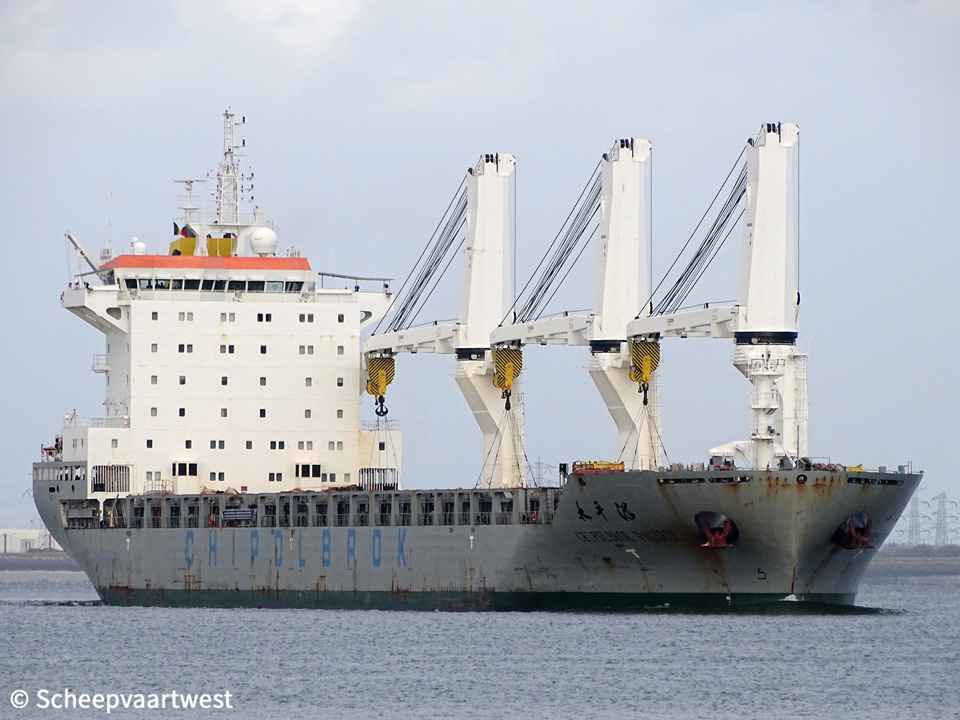

Chipolbrok Pacific 02

Westerschelde 22 June 2018

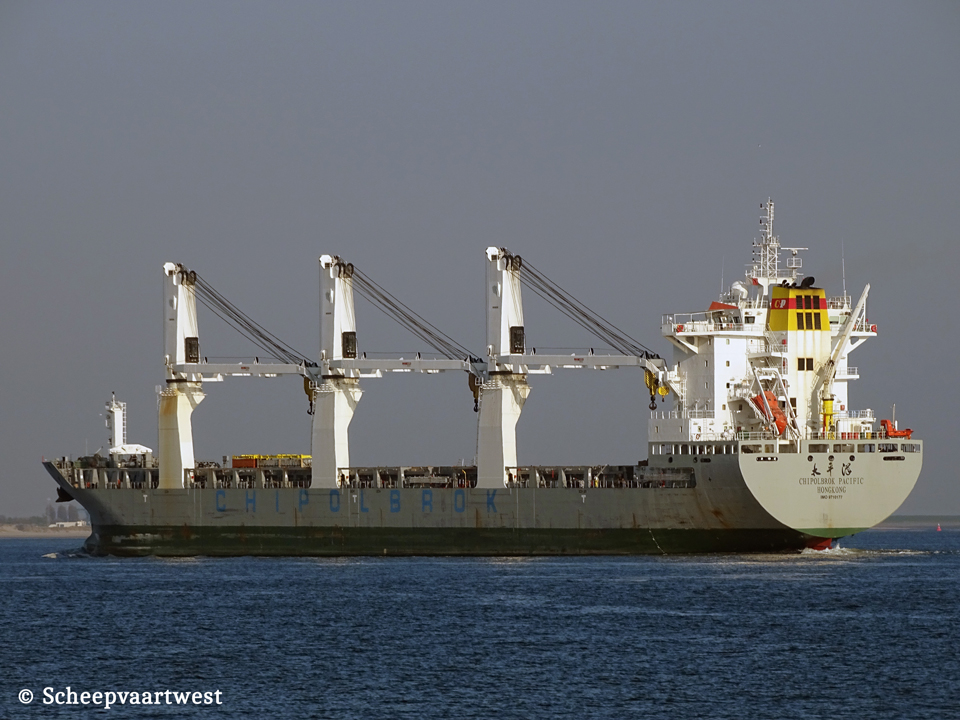

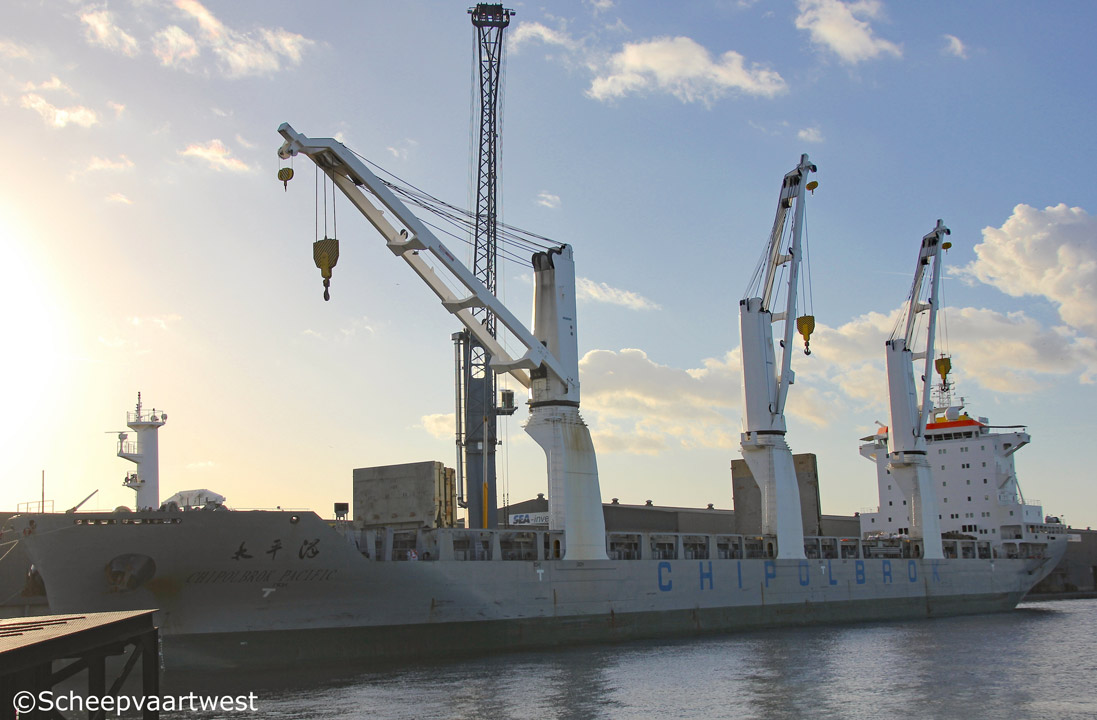

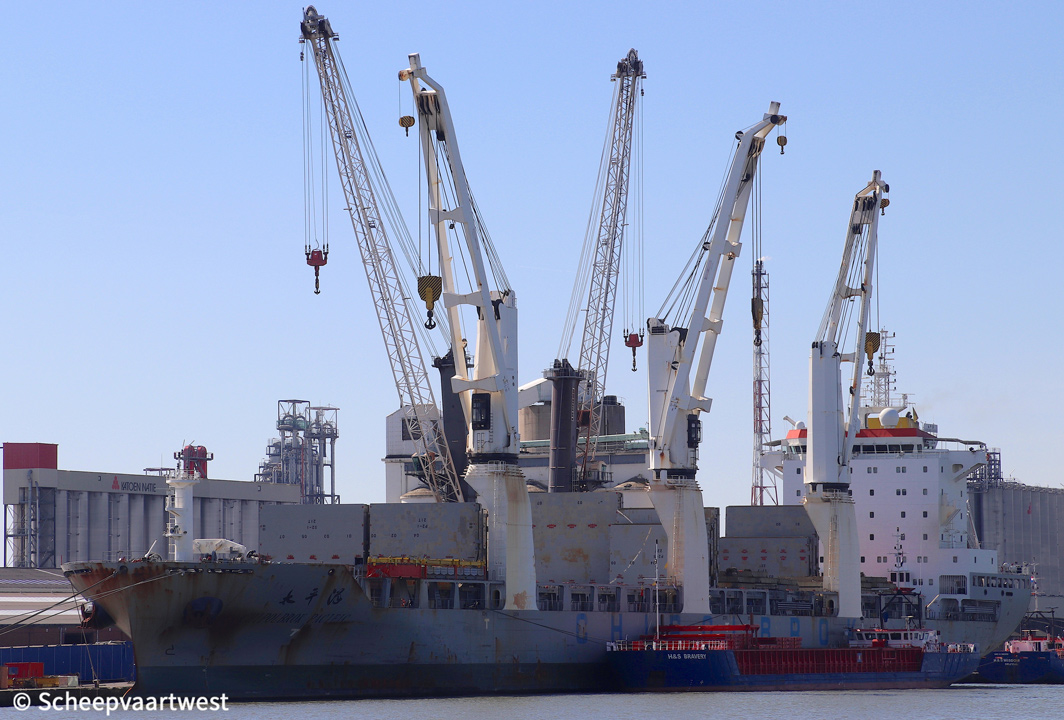

Chipolbrok Pacific 01   Chipolbrok Pacific 03   Chipolbrok Pacific IMO 9710177 04
Antwerpen 05/01/17 Antwerpen 24/03/20   Westerschelde 20/04/17


Name

CHIPOLBROK PACIFIC

Type

General cargo ship - Containership

IMO-number

9710177

Call sign

VRPC3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

24.778 t

DWT

Summer: 31.615,5 t

NT

10.318 t

Displacement

Summer: 44.991,3 t

Light ship

13.375,8 t

Number of 20ft containers

In hold: 595

On deck: 1.028

Total: 1.923

Length

189,90 m overall

184,00 m between perpendiculars

Breadth

28,00 m moulded

Draught

Summer: 10,50 m

Winter: 10,28 m

Height

52,04 m keel to top of folding mast

15,50 m keel to Main deck

47,56 m without folding mast

Freeboard

Summer: 5.017 mm

Winter: 5.236 mm

Depth

15,50 m moulded

Speed

Max.: 19,0 knots

Service: 15,8 knots

Built

2015

Keel laid

28/01/2015

Launch date

07/2015

Date of completion

08/12/2015

Builder

Shanghai Chengxi Shipyard

Shanghai

China

Yard number

SS1224

Hull material

Steel

Number of decks

1

Main engine

1x Wärtsilä 6RT-Flex 50 - 6 cylinder combustion engine 8.350 kW / 11.356 hp at 99,0 rpm

Propellers

1

Number of holds

3

Number of hatches

5

Hatch 1: 25,28 x 20,56 m

Hatch 2: 2x 50,56 x 11,25 m

Hatch 3: 2x 50,56 x 11,25 m

Tank capacities

Fresh water: 253,5 m³

Fuel oil: 16.693,3 m³

Diesel oil: 530,4 m³

Ballast: 13.357,1 m³

Lifting equipment

1x Provision crane - SWL 3,0 t

Cargo gear

3x Cranes - SWL 350 t each, max. lifting capacity up to 700 t

Accommodation

28 Persons

Manager

Chinese-Polish JSC (Chinsko-Polskie Towarzystwo Okretowe SA) (Chipolbrok)

Shanghai

China

Operator

Chinese Polish Joint Stock Shipping Company

26th Floor, 55 Yan An Road(East)

Shanghai 200002

China

Owner

Chipolbrok Pacific Maritime Company Limited

26th-34th Floors,Gongshanglian Building 55, Yan'an Donglu, Huangpu Qu

Shanghai 200002

China

Latest data adjustment

04 April 2023
