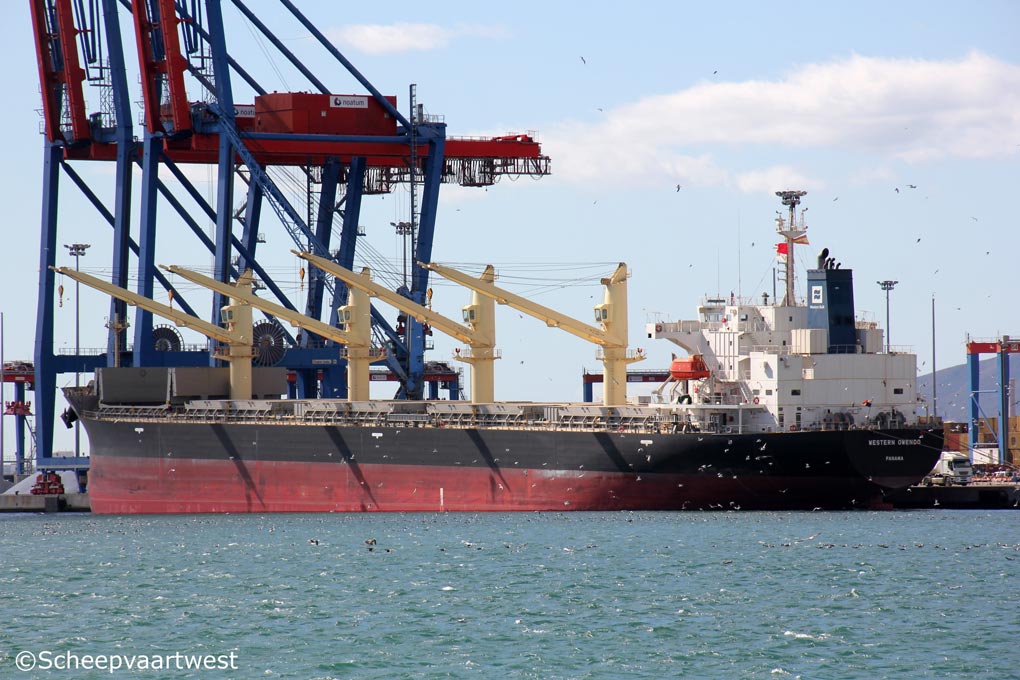

Western Owendo 01

Malaga - Spain 25 February 2016



Name

WESTERN OWENDO

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9687136

Call sign

3EMH4

Flag

Republic of Panama

Port of registry

Panama City

GT

22.385 t registered

DWT

37.614 t

NT

12.178 t registered

Length

179,99 overall

Breadth

30,00 m moulded

Draught

Summer: 10,33 m

Moulded L x B x D

175,60 x 30,00 x 14,63 m

Registered L x B x D

175,77 x 30,00 x 14,63 m

Freeboard

4.352 mm

Depth

14,63 m moulded

Speed

15,5 knots

Built

2015

Keel laid

26.01.2015

Launch date

03.03.2015

Date of completion

03.04.2015

Builder

Oshima Shipbuilding Co., Ltd.

Nagasaki
Japan

Yard number

10709

Hull material

Steel

Main engine

1x MAN B&W 5S60MC-C8 - 2 stroke single acting 5 cylinder 500 x 2.000 mm diesel engine 5.650 kW at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 420 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 1,82 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.975 kVA

Number of holds

5

Hold capacity

Bale: 46.436 m³

Grain: 46.834 m³

Tank capacities

Fuel oil: 1.521 m³

Fresh water: 256 m³

Water ballast: 14.769 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

New Century Overseas Management, Inc.

Operator

Western Bulk
Norway

Registered owner

Berlian Maritime Steamship Inc. for Orix Maritime Corp.
Japan

Latest data adjustment

25 April 2016
