Westerschelde 10 April 2015 |
 |
| Westerschelde 21/04/15 |
|
Name |

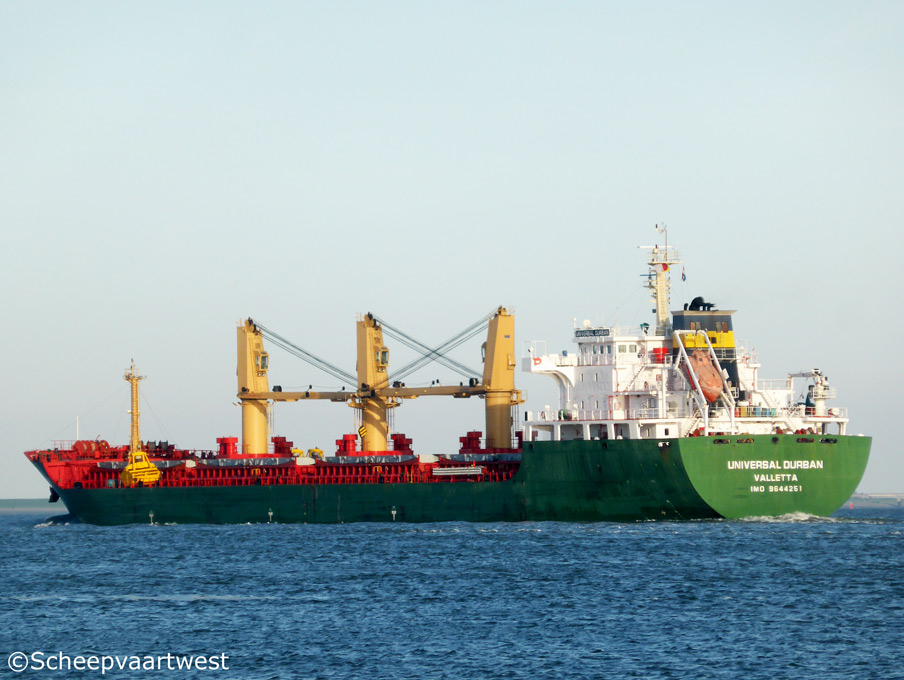

UNIVERSAL DURBAN |
|
Type |
Bulk carrier - Strengthened for heavy cargo Single deck, double hull, grabs fitted, bulk carrier |
|
IMO-number |
9644251 |
|
Call sign |
9HA3061 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
15.732 t |
|
DWT |
Summer: 22.844 t Winter: 22.149 t |
|
NT |
7.660 t Suez: 14.399 t Panama: 13.180 t |
|
Length |
159,60 m overall 149,80 m between perpendiculars |
|
Breadth |
24,40 m moulded |
|
Draught |
9,80 m |
|
Air draft |
40,00 m from keel |
|
Forecastle |
15,43 m |
|
Bridge |
9,00 m |
|
Poop |
28,95 m |
|
Freeboard |
4.220 mm |
|
Depth |
14,00 m to main deck |
|
Speed |
13,2 knots |
|
Built |
2012 |
|
Keel laid |
29/06/2010 |
|
Launch date |
27/02/2012 |
|
Date of completion |
19/06/2012 |
|
Builder |
Zhejiang Hongxin Shipbuilding Co., Ltd. Taizhou Zhejiang China |
|
Yard number |
HX200711 |
|
Hull material |
Steel |
|
Hull type |
Double side skin |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W /7S35MC-MK7 - 2 stroke 7 cylinder 350 x 1.400 mm combustion engine 5.180 kW at 173,0 rpm Built: 01.08.2009 Builder: STX Engine Co.,Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Oil fire boiler - 8,0 bar Built: 17/11/2011 Builder: Jiangyin Sanjie Industry Co.,Ltd. |
|
Generators |
3x Hyundai HFC6 456-84K diesel generatorsets each 440 kVA - 450 Volt at 900 rpm |
|
Emergency / harbour gen. |
1x Diesel generatorset 132 kW |
|
Number of holds |
4 Hold 1: 23,40 x 3,80 / 19,00 m Hold 2: 27,60 x 19,20 / 21,80 m Hold 3: 27,60 x 21,80 / 19,60 m Hold 4: 27,60 x 19,40 / 10,00 m |
|
Floorspace |
Hold 1: 368 m² Hold 2: 604 m² Hold 3: 612 m² Hold 4: 422 m² |
|
Hold capacity |
Grain/bale: Hold 1: 6.564,36 m³ Hold 2: 7.988,34 m³ Hold 3: 7.975,65 m³ Hold 4: 7.357,95 m³ 29.886,3 m³ |
|
Hold ventilation |
Mechanical, 6 changes/hour |
|
Number of hatches |
4 1x 21,00 x 13,00 m 3x 21,00 x 15,00 m |
|
Hatch type |
All cargo holds are provided with four hydraulic folding steel covers Underside closed |
|
Max. permitted loads |
Tanktop: 20 t/m² |
|
Tank capacities |
Water ballast: 8.580 m³ Freshwater: 142 m³ Bunkers IFO380: 1.287 m³ Gas oil: 168 m³ Lubrication oil: 70 m³ |
|
Cargo gear |
3x Cranes - SWL 30,0 t each Grabs: 3x 10,0 m³ |
|
Manager |
Universal Shipping B.V. Griendstraat 10 2921 LA Krimpen aan den IJssel The Netherlands |
|
Owner |
Universal Participaties II B.V |
|
Renamed |
12/2020 Transocean Liberia, Monrovia - Call sign: D5ZJ49644251 Owner: Sand One holdings Limited Operator: Sia Rix Shipmanagement |
|
Latest data adjustment |
01 March 2021 |
