Westerschelde 08 July 2014 |
|
Name |

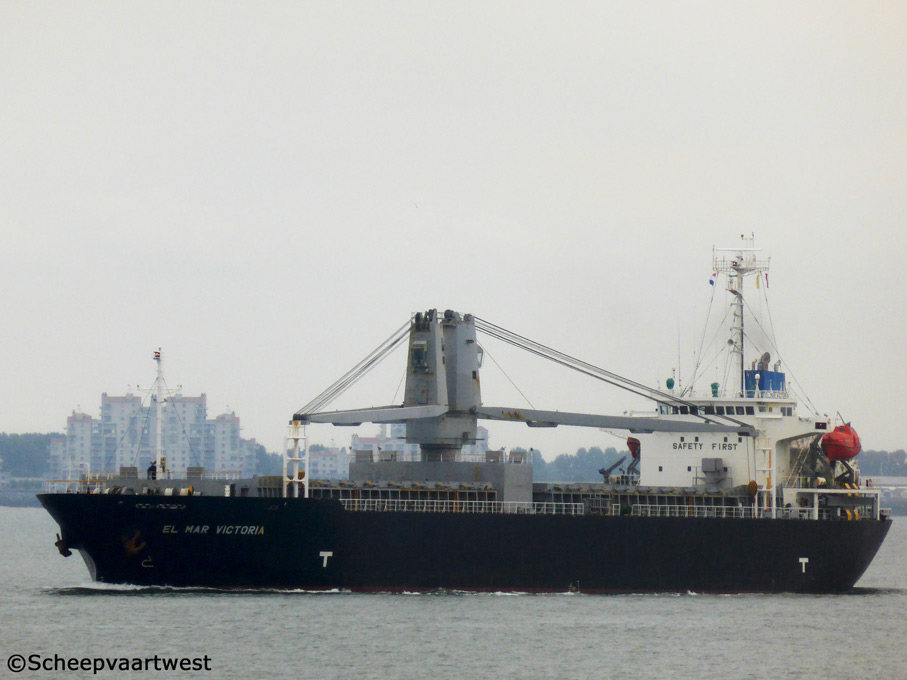

EL MAR VICTORIA |
|
Type |
Multi-purpose general cargo vessel - Flush tween deck - Removable - Semi boxhold - Frames upper part |
|
IMO-number |
9472684 |
|
Call sign |
VRDP2 |
|
Flag |
Hong Kong - Chine |
|
Port of registry |
Hong Kong |
|
GT |
9.593 t |
|
DWT |
Summer: 12.165 t |
|
NT |
3.748 t |
|
Length |
119,99 m |
|
Breadth |
21,20 m |
|
Draught |
8,47 m fully loaded |
|
Moulded L x B x D |
111,50 x 21,20 x 14,30 m |
|
Registered L x B x D |
112,90 x 21,20 x 14,30 m |
|
Air draft |
38,60 m |
|
Freeboard |
Summer: 5.861 mm |
|
Depth |
14,30 m moulded |
|
Speed |
Max.: 15,5 knots |
|
Built |
2008 |
|
Keel laid |
20.08.2007 |
|
Launch date |
31.10.2007 |
|
Date of completion |
14.02.2008 |
|
Builder |
Kanasashi Heavy Industries Co. Ltd. |
|
Yard number |
8117 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 350 x 1.050 mm diesel engine - 3.900 kW at 210 rpm Manufacturer: The Hanshin Diesel Works, Ltd. Akashi Factory |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 350 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 0,9 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Generators - 750 kVA |
|
Number of hold |
2 |
|
Cargo hold capacity |
Cargo hold 1: Tank top: 683,00 m² Tweendeck: 739,20 m² Hatchcover: 424,00 m² Total: 1.846,20 m² Cargo hold 2: Tank top: 676,90 m² Tweendeck: 740,90 m² Hatchcover: 424,00 m² Total: 1,841.80 m² |
|
Cargo hold volume |
Hold 1: Bale / grain: 9.903,00 / 10.490,00 m³ Hold 2: Bale / grain: 9.942,00 / 10.352,00 m³ Total: 19.845,00 / 20.842,00 m³ |
|
Hatch type |
Folding hatches |
|
Permissible loads |
Tanktop: 11,78 t/m² Tweendeck: 3,7 t/m² Hatchcover: 1,50 t/m² |
|
Tank capacity |
HFO 96%: 781,00 m³ MGO 96%: 162,51 m³ Water ballast: 2.316,00 m³ Fresh Water: 548,64 m³ |
|
Cargo gear |
2x Electro hydraulic cranes Cranes SWL 1 & 2: 30,7 t Cranes combinable: 60,0 t |
|
Technical manager |
P&F Marine Co., Ltd. |
|
Commercial manager |
Thorco Shipping A/S |
|
Registered owner |
El Mar Victoria Limited |
|
Latest data adjustment |
08 January 2015 |
