Westerschelde 03 October 2014 |
 |
 |
 |
 |
 |
||||

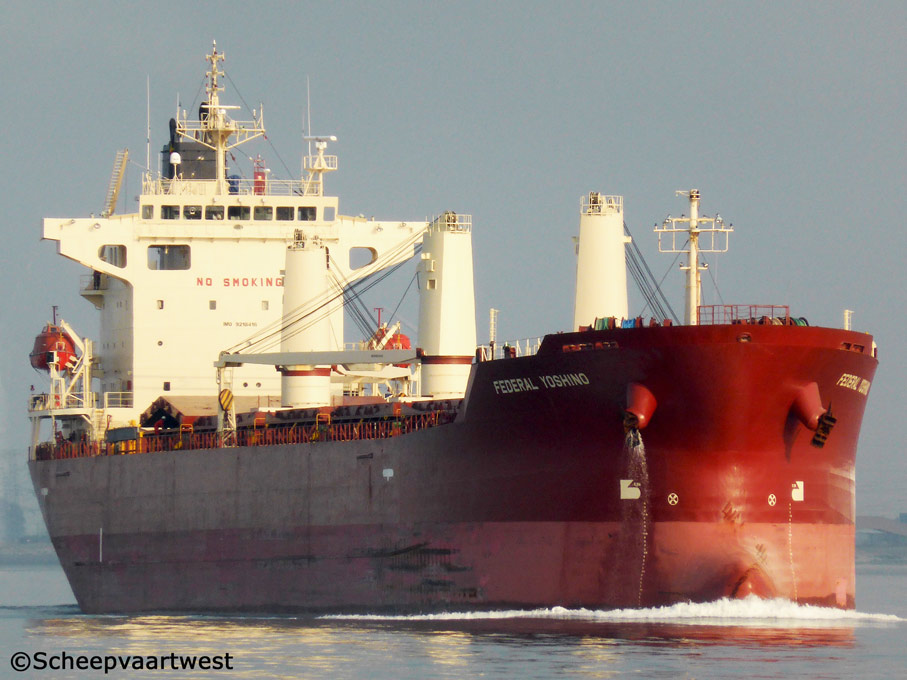

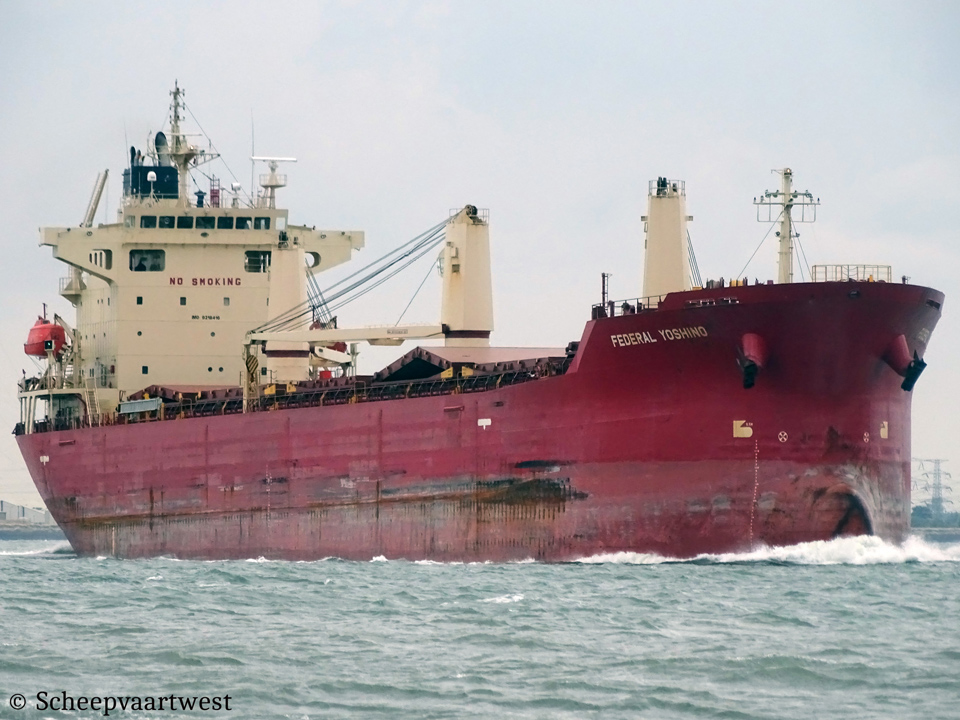

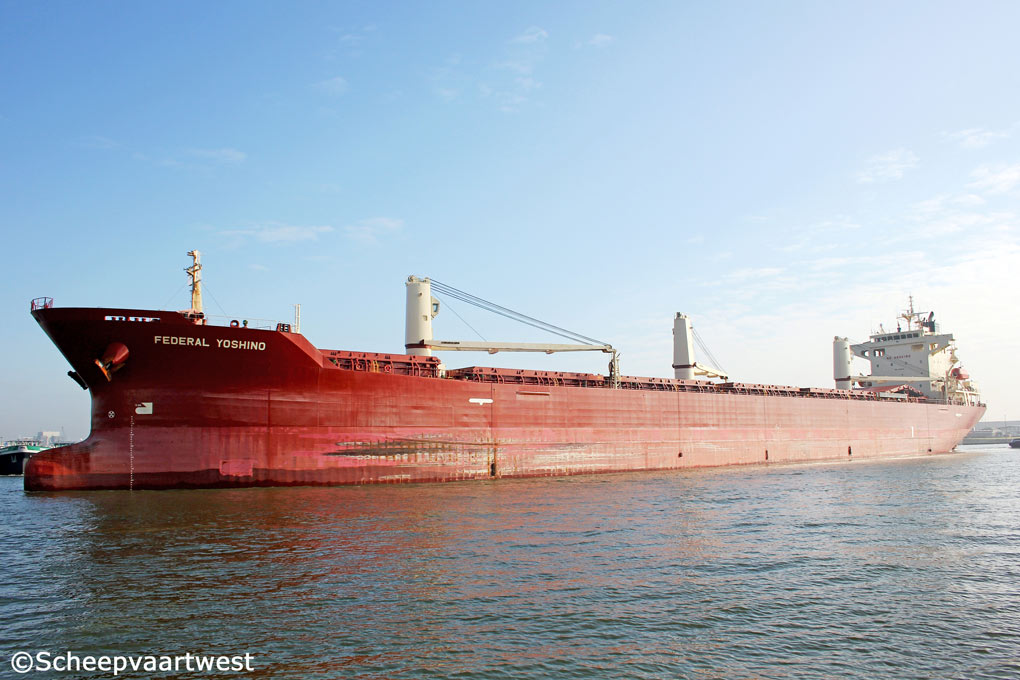

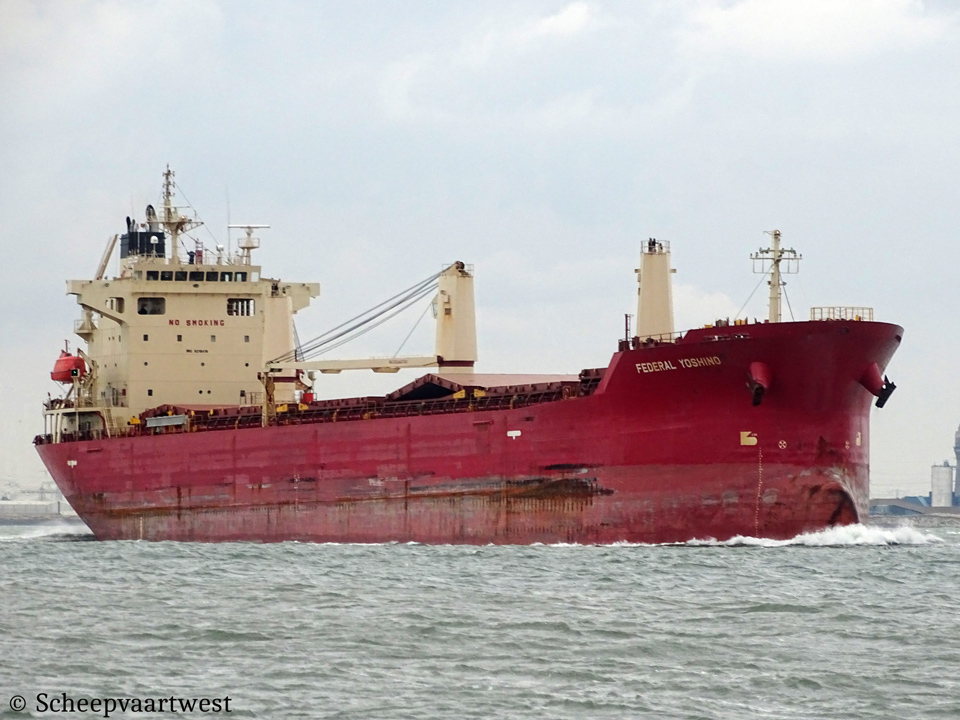

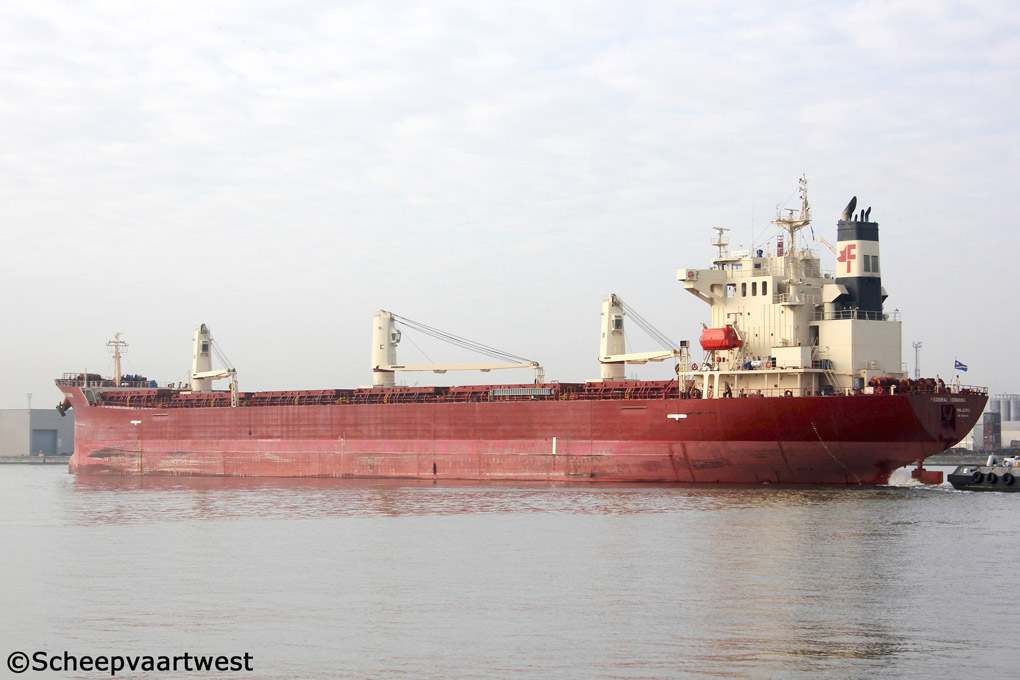

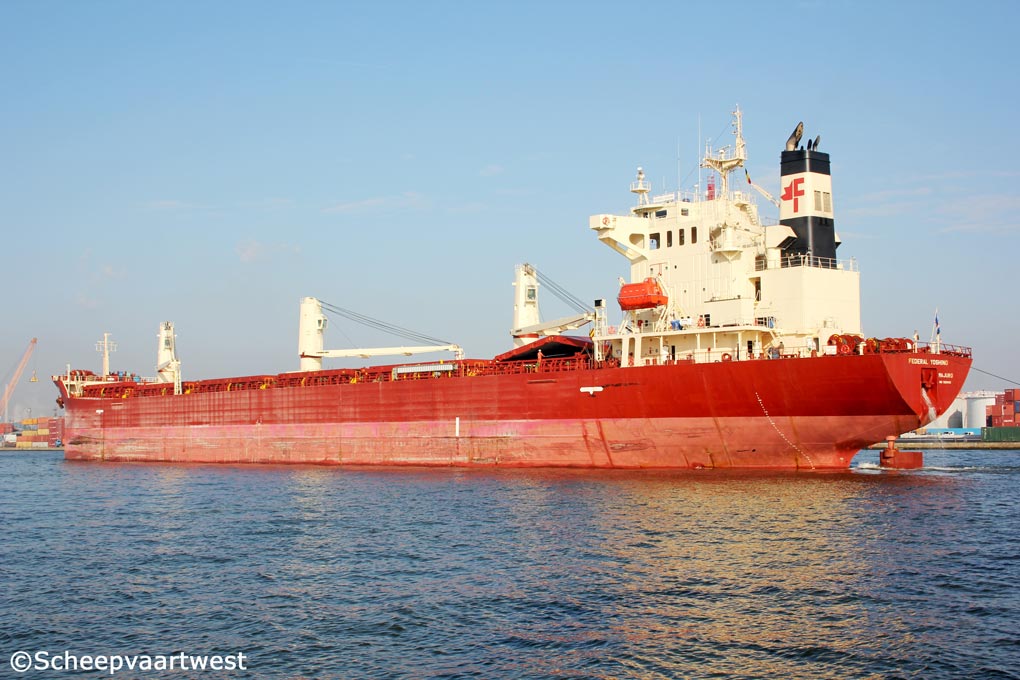

| Antwerpen 03/10/14 | Antwerpen 03/10/14 | Antwerpen 03/10/14 | Westerschelde 14/08/18 | Westerschelde 14/08/18 |
|
Name |
FEDERAL YOSHINO |
|
Type |
Bulk carrier |
|
IMO-number |
9218416 |
|
Call sign |
V7VY9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
19.125 t registered |
|
DWT |
Summer: 32.845 t Winter: 31.951 t |
|
NT |
10.377 t registered Panama: 15.976 t Suez: 18.082 t |
|
Length |
190,43 m overall 181,00 between perpendiculars |
|
Breadth |
23,60 m moulded |
|
Draught |
10,67 m |
|
Freeboard |
4.430 mm |
|
Depth |
15,20 m moulded |
|
Speed |
Max.: 16,9 knots Service: 14,4 knots laden |
|
Built |
2001 |
|
Keel laid |
25.09.2000 |
|
Launch date |
01.2001 |
|
Date of completion |
21.02.2001 |
|
Builder |
Kanasashi Heavy Ind. Co., Ltd. |
|
Yard number |
3528 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC52LS diesel engine - 7.162 kW / 9.600 hp at 133,0 rpm Builder: Mitsubishi Heavy Industries, Ltd., Kobe Shipyard & Machinery Works - Japan |
|
Propellers |
1x Kurushima fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite MKSC-900/800 Builder: Tortoise Engineering |
|
Generators |
3x Daihatsu 3DK(M)-20 diesel generatorsets Builder: Daihatsu Diesel Mfg. Co. Ltd Moriyama Division |
|
Emergency generator |
1x Mitsui F6L912 diesel generatorset |
|
Bow thruster |
1x 900 hp |
|
Number of hold |
6 Hold 1: 28 x 5,52 forward / 18,00 aft Hold 2: 23,20 x18,00 m Hold 3: 23,20 x18,00 m Hold 4: 19,20 x18,00 m Hold 5: 25,60 x18,00 m Hold 6: 23,20 x 18,00 aft / 6,52 forward |
|
Cargo capacity |
Grain: Hold 1: 7.525 m³ Hold 2: 6.737 m³ Hold 3: 6.728 m³ Hold 4: 6.012 m³ Hold 5: 7.397 m³ Hold 6: 6.117 m³ Total: 40.516 m³ Bales: Hold 1: 7.049 m³ Hold 2: 6.479 m³ Hold 3: 6.481 m³ Hold 4: 5.781 m³ Hold 5: 7.138 m³ Hold 6: 5.950 m³ Total: 38.878 m³ |
|
Number of hatches |
6x Folding hydraulic covers Hatch 1: 16,80 x 12,90 m Hatch 2: 18,40 x 12,90 m Hatch 3: 18,40 x 12,90 m Hatch 4: 16,00 x 12,90 m Hatch 5: 20,00 x 12,69 m Hatch 6: 16,80 x 12,90 m |
|
Tank capacities |
Ballast: 18.245,86 m³ Fuel oil: 1.425 m³ Diesel oil: 184 m³ Fresh water: 471 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
2x Cranes - SWL 3,0 t each 3x Cranes electro hydraulic - SWL 30,0 t each |
|
Manager |
FEDNAV Ltd. |
|
ISM manager |
Intership Navigation Inc Geismar LA 70737-3246 USA |
|
Registered owner |
MV Baffin Investments Ltd. 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
13 November 2014 |
