Westerschelde 30 May 2014 |
|
Name |

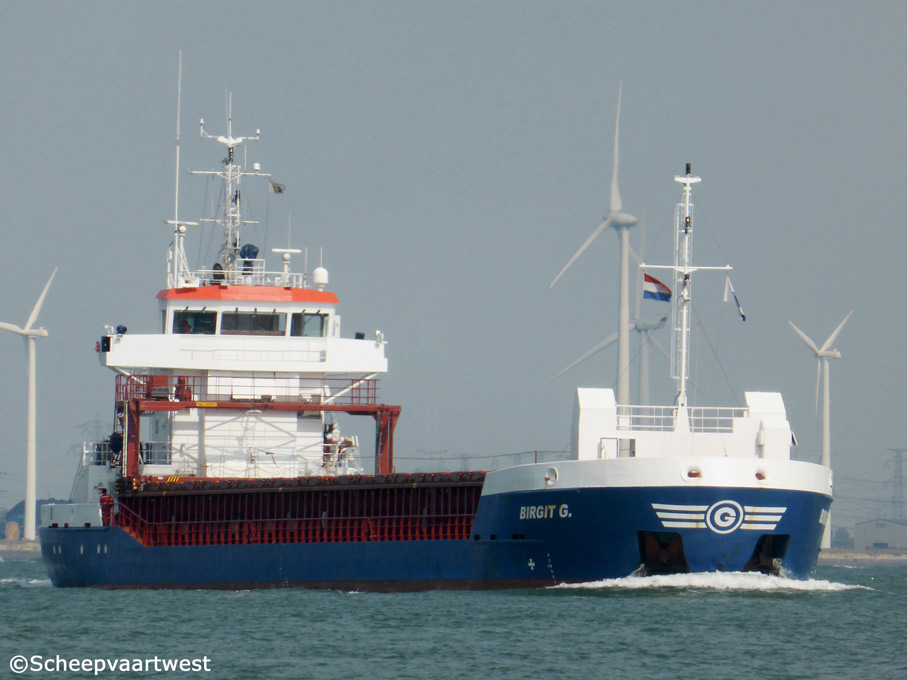

BIRGIT G |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9536064 |
|
Call sign |
V2QD5 |
|
Flag |
St. John's |
|
Port of registry |
Antigua & Barbuda |
|
GT |
2.545 t |
|
DWT |
Summer: 3.850 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
188 |
|
Length |
88,60 m overall 84,99 m registered |
|
Breadth |
12,50 m registered |
|
Draught |
5,42 m |
|
Depth |
7,00 m moulded |
|
Speed |
12,5 knots |
|
Built |
2010 |
|
Keel laid |
14.08.2008 |
|
Launch date |
08.04.2009 |
|
Date of completion |
22.02.2010 |
|
Builder casco |
Brodogradiliste "Tito" Sava Macvanska Mitrovica |
|
Builder completion |
Damen Shipyard Bergum BV |
|
Yard number |
9402 |
|
Hull material |
Shipbuilding steel (standard) |
|
Bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.520 kW at 1.000 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 226 rpm |
|
Electric installations |
1x Plant 400 V - 175 kVA 1x Plant 400 V - 324 kVA |
|
Shaft generator |
1x 324 kVA |
|
Generators |
1x Main diesel generatorset 175 kVA |
|
Emergency generator |
1x Diesel generatorset 77 kVA |
|
Compressed air receivers |
2x Receivers each 150 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster 220 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
Bales: 185.000 ft³ |
|
Number of hatches |
2 |
|
Max. permitted loads |
Tanktop: 15,0 t/m² |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Manager |
Gerdes Bereederungs- und Verwaltungs GmbH |
|
Registered owner |
Birgit G. Shipping Co. Ltd. |
|
Latest data adjustment |
08 July 2014 |
