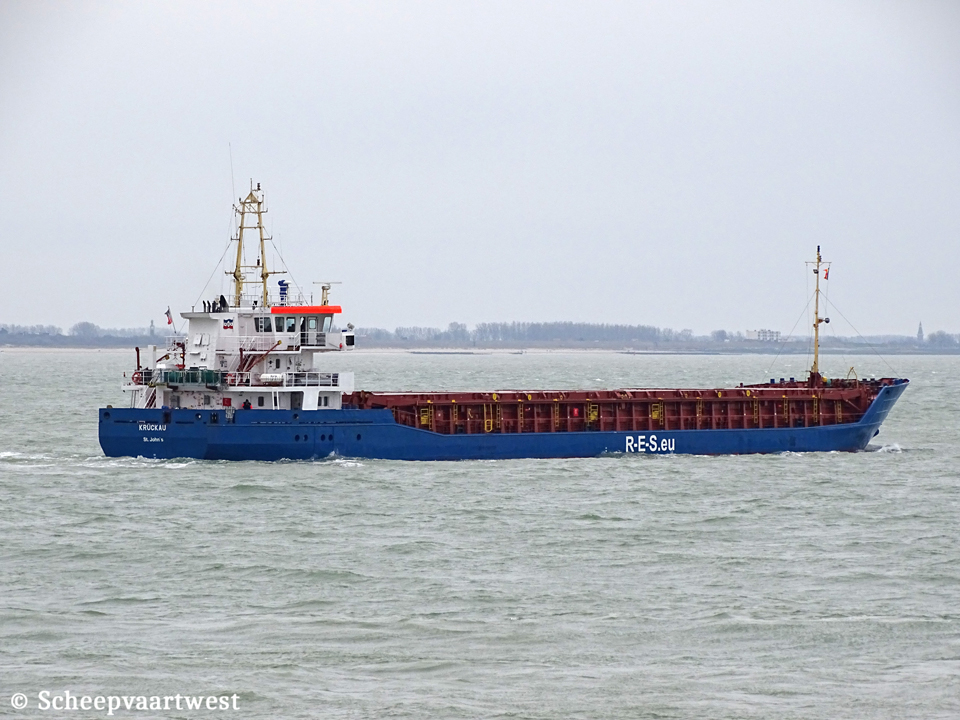

Westerschelde 07 March 2020 |
 |
 |
 |
||
| Westerschelde 07/03/20 | Terneuzen 21/08/17 | Westerschelde 26/09/13 |
|
Name |
KRÜCKAU |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers |
|
IMO-number |
9199141 |
|
Call sign |
V2LO |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.461 t |
|
DWT |
Summer: 3.683 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
In hold: 108 On deck: 36 Total: 144 |
|
Length |
87,90 m overall 82,10 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,49 m |
|
Forecastle |
6,28 m |
|
Depth |
7,10 m to maindeck 4,55 m to tweendeck |
|
Speed |
12,1 knots |
|
Built |
2003 |
|
Keel laid |
12/06/1998 |
|
Launch date |
09/05/2003 |
|
Date of completion |
31/07/2003 |
|
Builder |
Slovenske Lodenice Komarno a.s. Rolnickej Skoly 1519 945 01 Komarno Slovak Republic |
|
Yard number |
2951 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke 8 cylinder 240 x 280 mm combustion engine 1.500 kW at 900 rpm Year of manufacture: 2002 Manufacturer: Deutz AG Werk Mannheim Carl-Benz-Str. 5 68167 Mannheim Federal Republic of Germany |
|
Propellers |
1x Solid propeller - aft at 228 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar |
|
Electric installations |
3x Plants each 380/220 V - 130 kVA 1x Plant 380 V - 49 kVA |
|
Generators |
3x MAN type D2866 E main diesel each 115 kW at 1.500 rpm connected with generators each 130 kVA - 380/220 V, 50 Hz |
|
Emergency generator |
1x KHD diesel type F6L912 diesel engine 47 kW at 1.500 rpm connected with generator 49 kVA - 380/220 V, 50 Hz |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 185 kW, forward |
|
Number of holds |
1 |
|
Total hold capacity |
Grain: 4.650 m² Bales: 4.620 m³ |
|
Number of hatches |
1 56,55 x 10,20 m |
|
Hatch type |
Kvaerner |
|
Water ballast |
1.533 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m Diameter: 32 mm |
|
Manager |
Reederei Erwin Strahlmann e.K. Schleusenstr. 10 25541 Brunsbüttel Federal Republic of Germany |
|
Owner |
Erwin Strahlmann MS Krueckau - Germany |
|
Registered owner |
Roland Ship Administration GmbH & Co. KG Schleusenstr. 10 25541 Brunsbüttel Federal Republic of Germany |
|
Renamed |
02/2021 Neckartal Antigua and Barbuda, St. John’s - Call sign: V2LO Manager: Interscan Schiffahrtsgesellschaft mbH, Hamburg - Germany Reg. owner: Schiffahrts UG (haftungsbeschränkt) & Co. KG MS "Neckartal" |
|
Latest data adjustment |
03 April 2021 |
