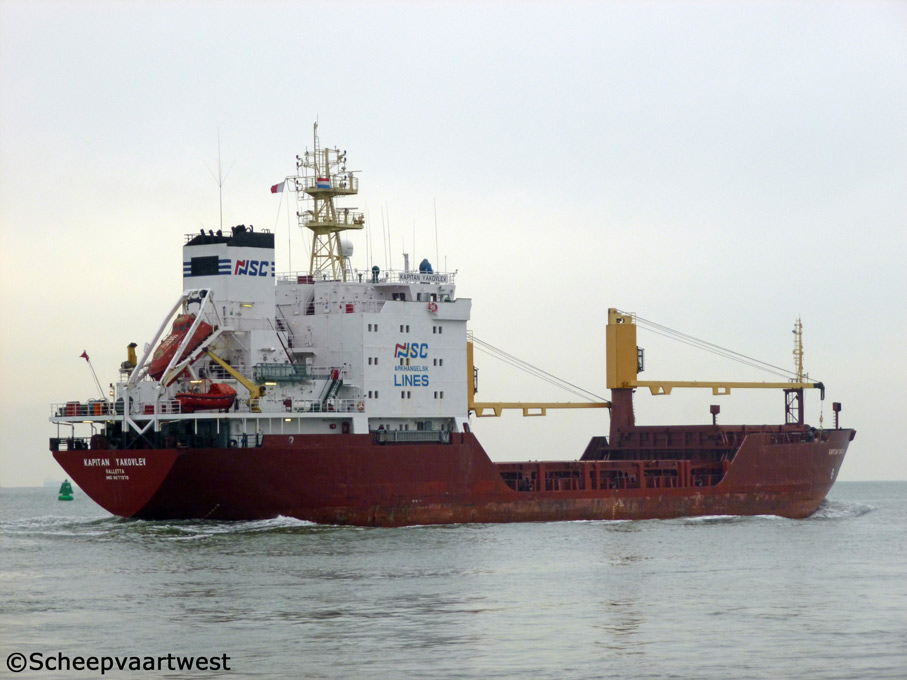

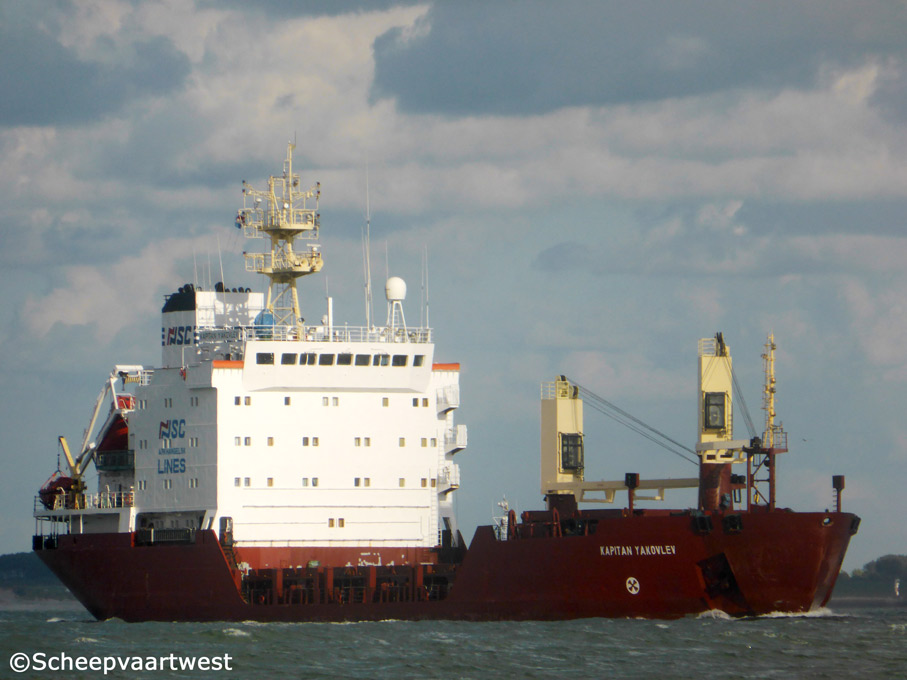

Westerschelde 11 October 2013 |
 |
 |
 |
 |
 |
 |
|||||

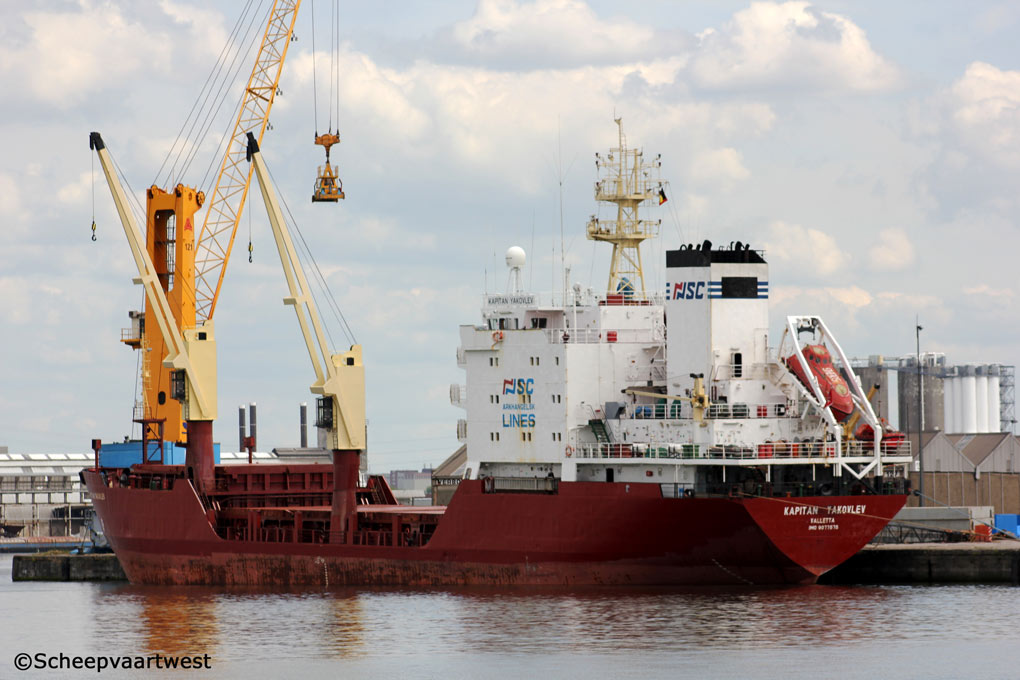

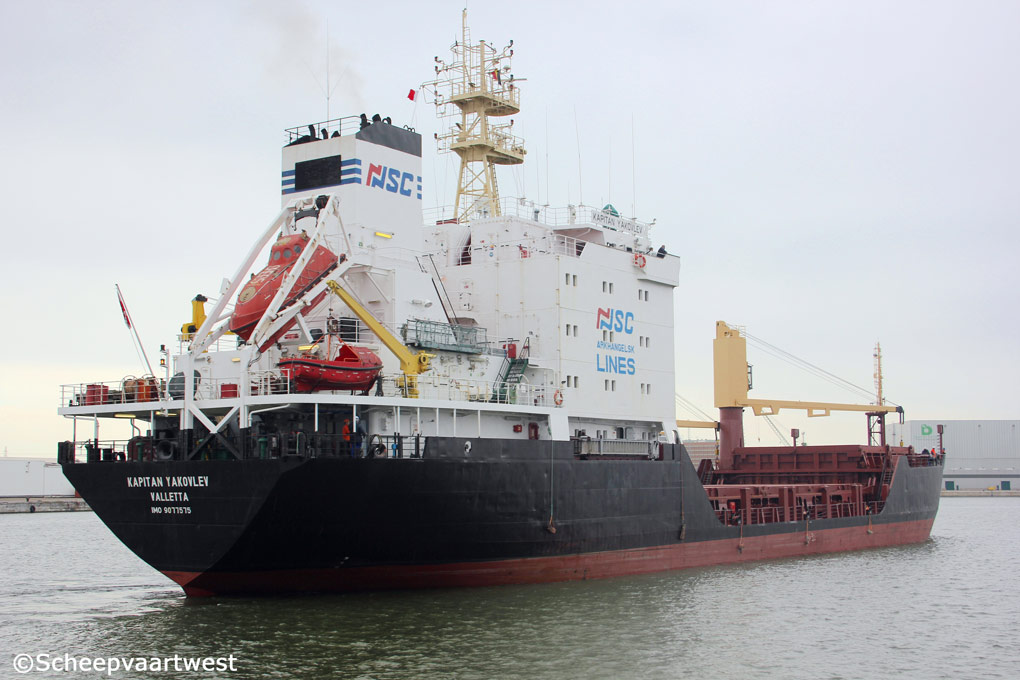

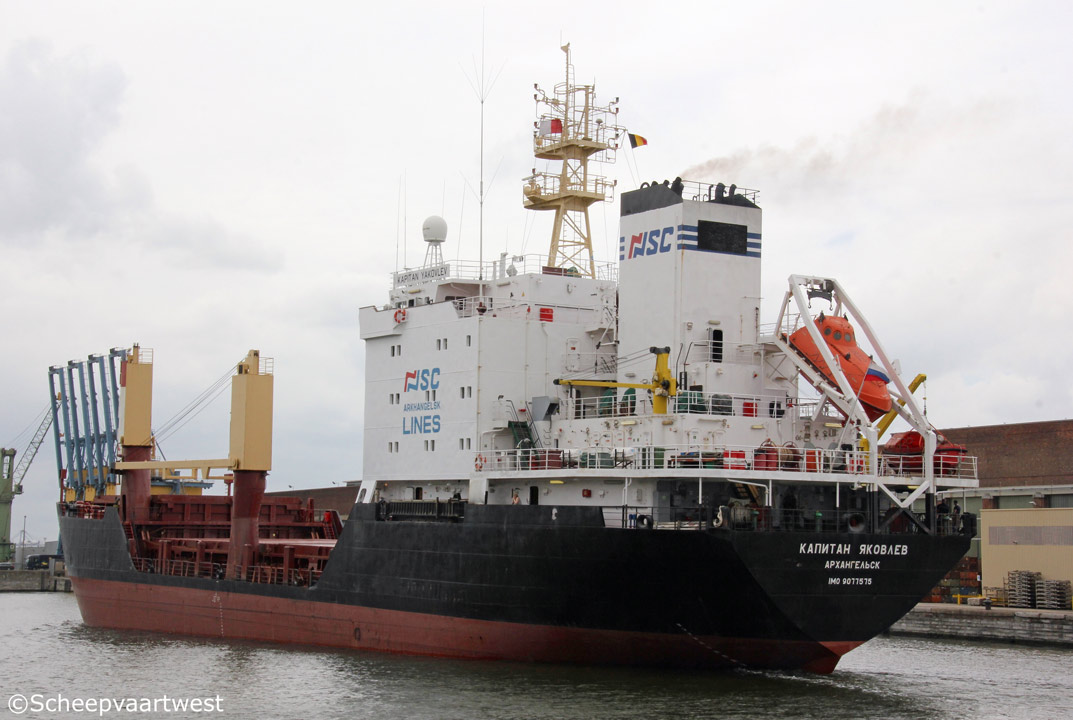

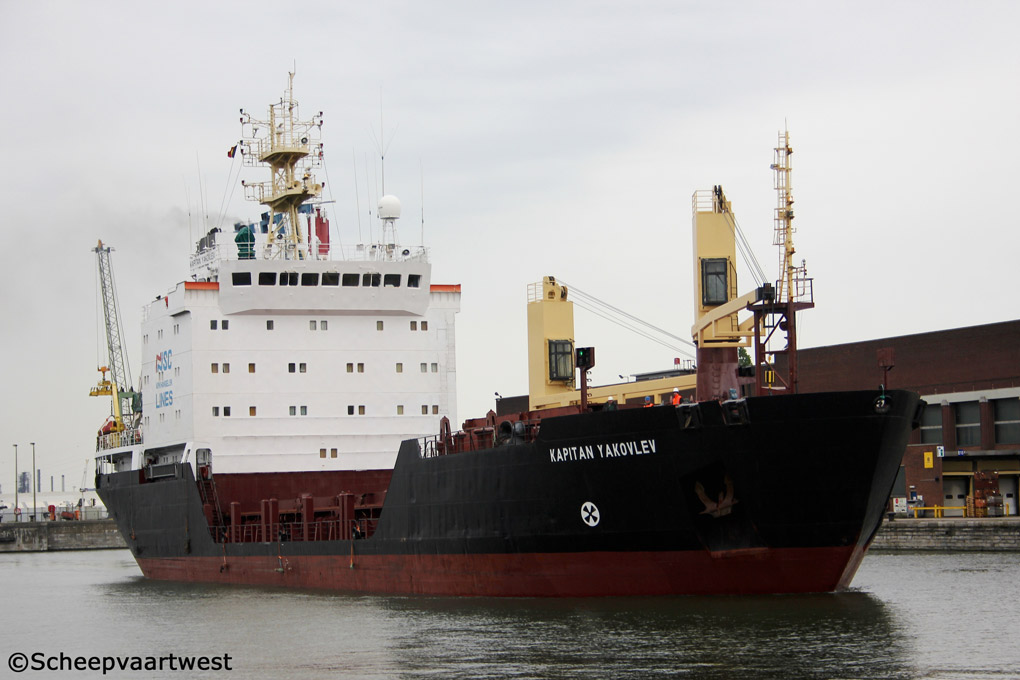

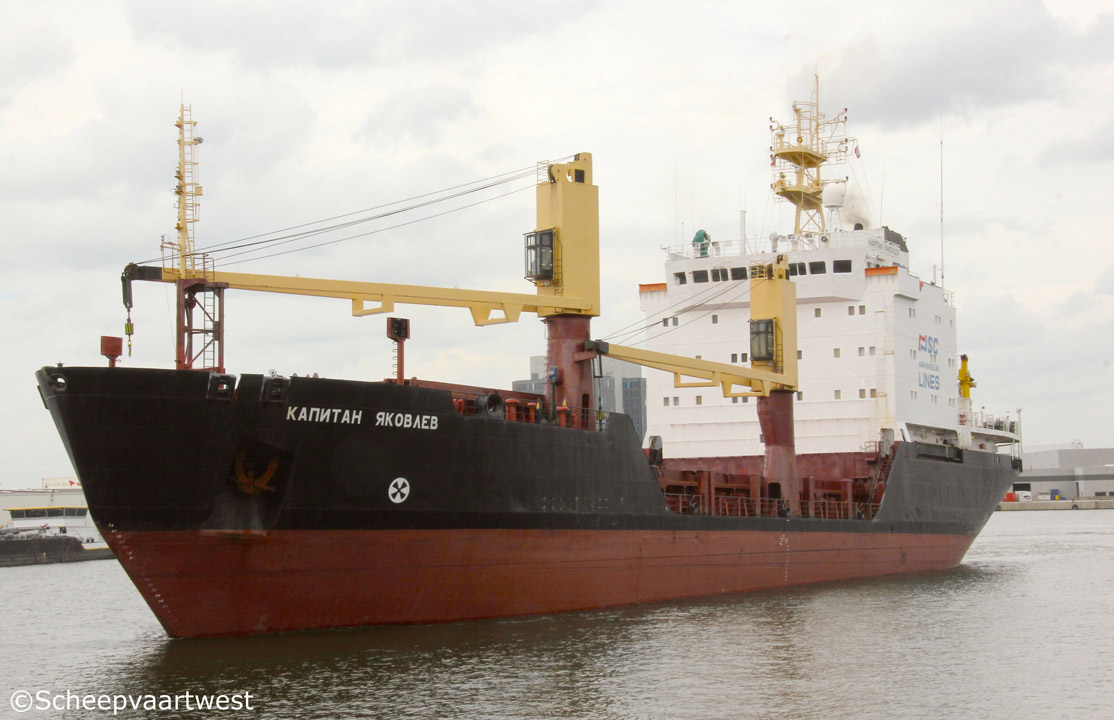

| Westerschelde 11/10/13 | Westerschelde 19/08/14 | Antwerpen 07/07/14 | Antwerpen 14/05/15 | Antwerpen 14/05/14 | Antwerpen 27/07/17 |
 |
 |
 |
||

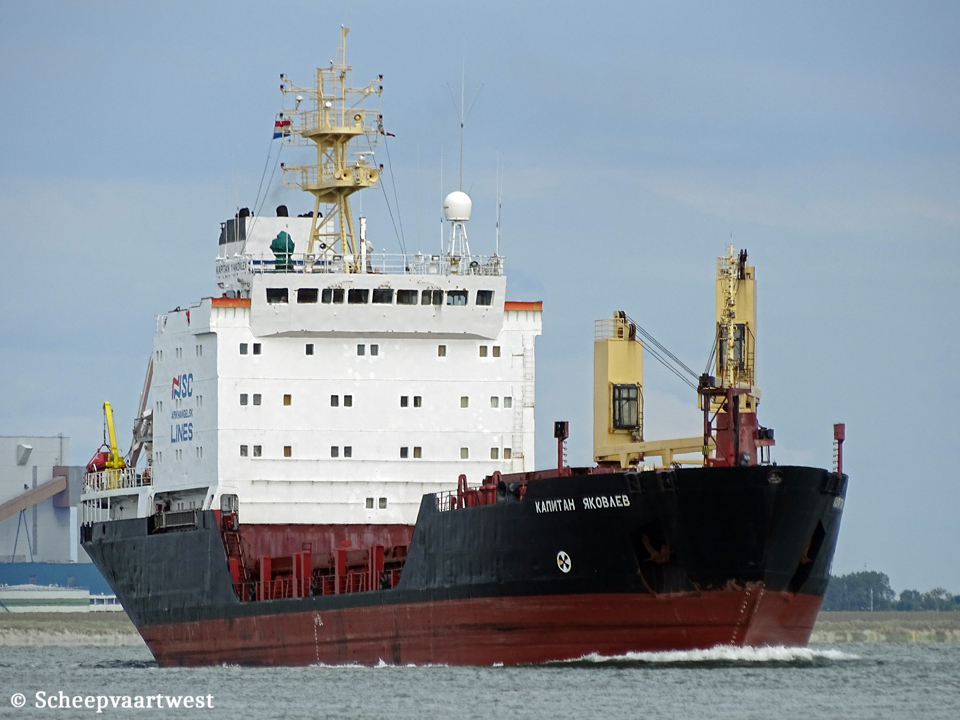

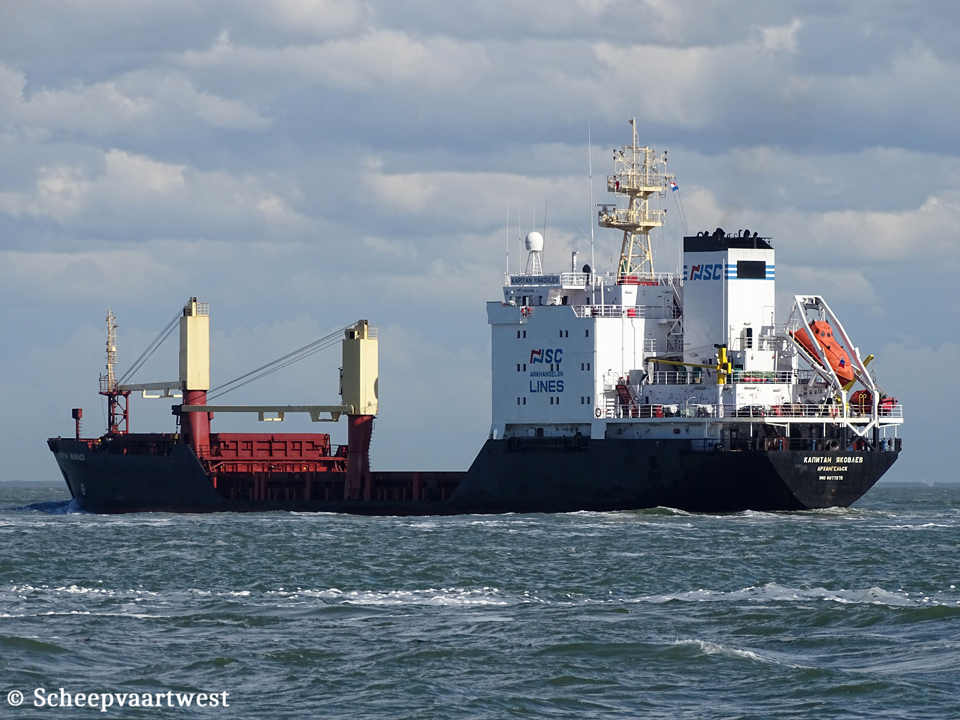

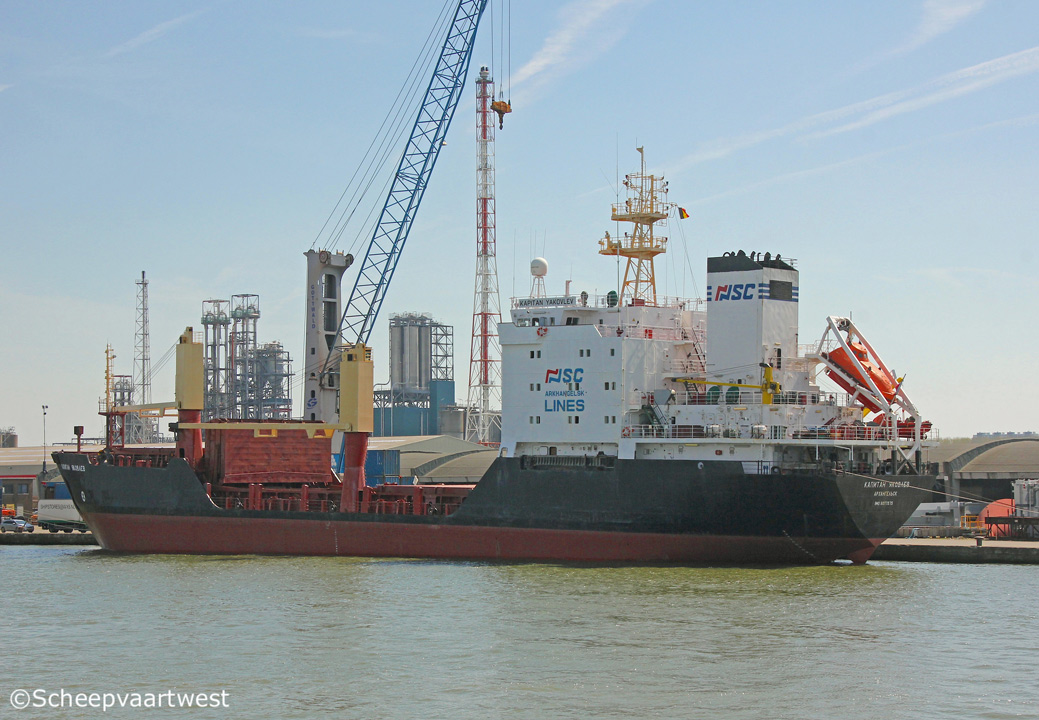

| Antwerpen 27/07/17 | Antwerpen 19/04/18 | Westerschelde 08/05/19 |
|
Name |
KAPITAN YAKOVLEV |
|
Russian name |
КАПИТАН ЯКОВЛЕВ |
|
Type |
General cargo |
|
Subtypes |
Container facility - Wood packaged - Grain - Coal |
|
IMO-number |
9077575 |
|
Call sign |
UBDO2 |
|
Flag |
Russia |
|
Port of registry |
Arkhangelsk |
|
Previous flag |
Malta, Valletta - Call sign: 9HER5 |
|
GT |
4.998 t Suez: 5.265,82 t |
|
DWT |
Summer: 4.678 t |
|
NT |
1.651 t Suez: 3.322,53 t |
|
Displacement |
7.911 t full load |
|
Number of 20ft containers |
173 |
|
Reefer capacity |
15 |
|
Length |
98,20 m overall 89,40 m between perpendiculars |
|
Breadth |
17,60 m overall |
|
Draught |
Summer: 6,70 m |
|
Keel to top antenna |
36,80 m |
|
Depth |
7,80 m |
|
Speed |
12,4 knots |
|
Built |
1996 |
|
Keel laid |
23/09/1993 |
|
Date of completion |
04/11/1996 |
|
Builder |
Vyborg Shipyard Vyborg Russia |
|
Yard number |
203 |
|
Number of bulkheads |
7 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Burmeister & Wain 6DKRN 35/105-10 combustion engine 3.356 kW at 200,0 rpm Built: 1992 Russia Builder: Bryanskiy MSZ |
|
Propellers |
1x Controllable pitch propeller - 4 blades |
|
Generator |
3x 6Н25/34-2 diesel generatorsets each 320 kVA 1x Generator 500 kVA |
|
Emergency generator |
1x Diesel generatorset 100 kW |
|
Bow thruster |
1x 360 kW |
|
Number of holds |
3 Hold 1: 15,80 x 7,70 /14,00 x 9,60 m Hold 2: 20,80 x 14,00 x 8,40 m Hold 3: 15,20 x 14,00 x 8,40 m |
|
Hold capacity |
Hold 1: Grain: 1.728 m³ / Bale: 1.692 m³ Hold 2: Grain 2.290 m³ / Bale: 2.244 m³ Hold 3: Grain 1.636 m³ / Bale 1.636 m³ Total: Grain: 5.654 m³ / Bale: 5.539 m³ |
|
Number of hatches |
3 Hatch 1: 12,80 x 10,40 m Hatch 2: 19,20 x 13,20 m Hatch 3: 13,20 x 13,20 m |
|
Deck space for cargo |
150 m² |
|
Max permissible loading |
Tanktop: 10,0 t/m² |
|
Tank capacities |
Fuel oil: 289 m³ Water ballast: 1.692 m³ Fresh water: 70,0 t |
|
Lifting equipment |
2x Derricks - SWL 8,0 t each |
|
Crew |
16 |
|
Manager |
Northern Shipping Company |
|
ISM manager |
Northern Shipping Company, Joint-Stock Company JSC NSC |
|
Registered owner |
Northern Shipping Company, Joint-Stock Company JSC NSC Nab. Severnoy Dviny, 36 163000, Arkhangelsk Russia |
|
Latest data adjustment |
02 April 2021 |
