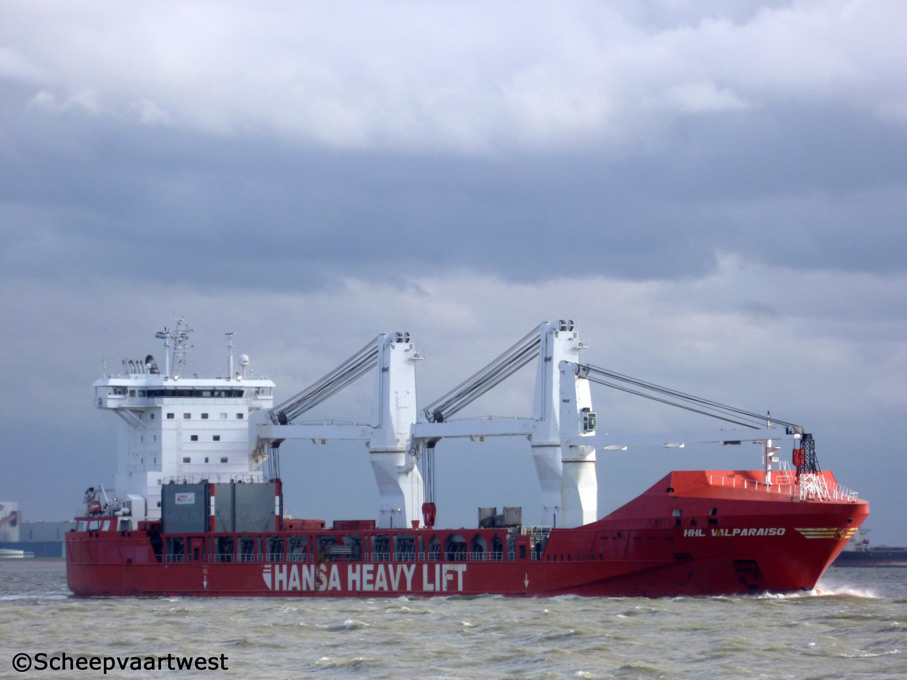

HHL Valparaiso 02

Westerschelde 05 February 2014



Name

HHL VALPARAISO

Previous names

10/2009 Launch as: Beluga Perfection

2010 - 11/2011 Beluga Bremen

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

IMO-number

9424558

Call sign

D5AU3

Flag

Liberia

Port of registry

Monrovia

GT

17.634 t

DWT

19.413 t

NT

6.617 t

Number of 20ft containers

On deck: 488

Under deck: 424

Total: 912

Reefer capacity

100

Length

168,54 m overall

155,79 m registered

Breadth

25,20 m registered

Draught

9,50 m

Air draft

45,15 m to bottom of keel

Forecastle

15,77 m

Poop

16,20 m

Depth

13,85 m moulded

Speed

Eco: 14,0 knots

Max.: 17,5 knots

Built

2010

Keel laid

10/07/2009

Launch date

22/10/2009

Date of completion

15/03/2010

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.

2851, Pudong Dadao Shanghai

226361 Shanghai

People's Republic of China

Yard number

H1527A

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAN 7L58/64 - 4 stroke single acting 7 cylinder 580 x 640 mm combustion engine 9.800 kW at 428 rpm

Year of Manufacture: 2009

Manufacturer: MAN Diesel & Turbo SE

Stadtbachstr. 1

86153 Augsburg

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at146 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 114,8 m²

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 32,0 m²

Year of manufacture: 2009

Manufacturer: Alfa Laval Aalborg A/S

Gasvaerksvej 24

9100 Aalborg

Kingdom of Denmark

Electric installations

3x Plant each 450 V - 1.063 kVA

1x Plant 450 V - 1.500 kVA

1x Plant 450 V - 187,5 kVA

2x Plants each 24 V - 170 Ah

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 200 Ah

Shaft generator

1x 1.500 kVA

Generators

3x Main diesel generatorsets each 1.063 kVA

Emergency generator

1x Diesel generatorset 187,5 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for UPS radio each 200 Ah

2x Batteries for automation each 170 Ah

Compressed air receivers

2x Receivers each 1.500 litres - 30 bar

2x Receivers each 1.000 litres - 30 bar

1x Receiver 500 litres - 30 bar

1x Receiver 1.000 litres - 8 bar

1x Receiver 400 litres - 8 bar

1x Receiver 100 litres - 8 bar

Bow thruster

1x Transverse thruster 800 kW, forward

Number of holds

2x Double skin boxshaped

Hold 1: 4,275 m³ /. 150.993 ft³

Hold 2: 22,062 m³ /. 779.230 ft³

Total: 26.337 m³ / 930.223 ft³

Hold ventilation

Mechanical ventilation

6x Air changes per hour

Number of hatches

2

No. 1 hatch opening 22,94 x 13:76 m

No. 2 hatch opening 82,40 x 18,66 m

Hatch cover area

1.956 m²

Hatch covers type

Hydraulic folding

Type of tween deck

Moveable, pontoon type

Max permitted loads

Tank top: 18,0 t/m²

Hatch covers: 4,0 t/m²

Tween deck: 3,5 t/m²

Tank capacities

Ballast: 12.000 m³

Freshwater: 200 m³

HFO: 1.500 m³

MGO: 200 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Cargo gear

2x NMF cranes - SWL 700 t

Combinable to 1.400 t SWL

Diameter: 66 mm

Crew size

27

Manager

Hansa Heavy Lift GmbH

Oberbaumbrücke 1

20457 Hamburg

Federal Republic of Germany

Operator

Hansa Heavy Lift GmbH

Registered owner

Hansa Heavy Lift GmbH & Co. KG MS "HHL VALPARAISO"

Auf der Muggenburg 30

28217 Bremen

Federal Republic of Germany

Renamed

11/2018 Treasury One

Liberia, Monrovia - Call sign: DAU3

Manager: Marlow Ship Management, Monrovia - Liberia

Owner: Treasury One UG, Monrovia - Liberia

Latest data adjustment

02 February 2022
