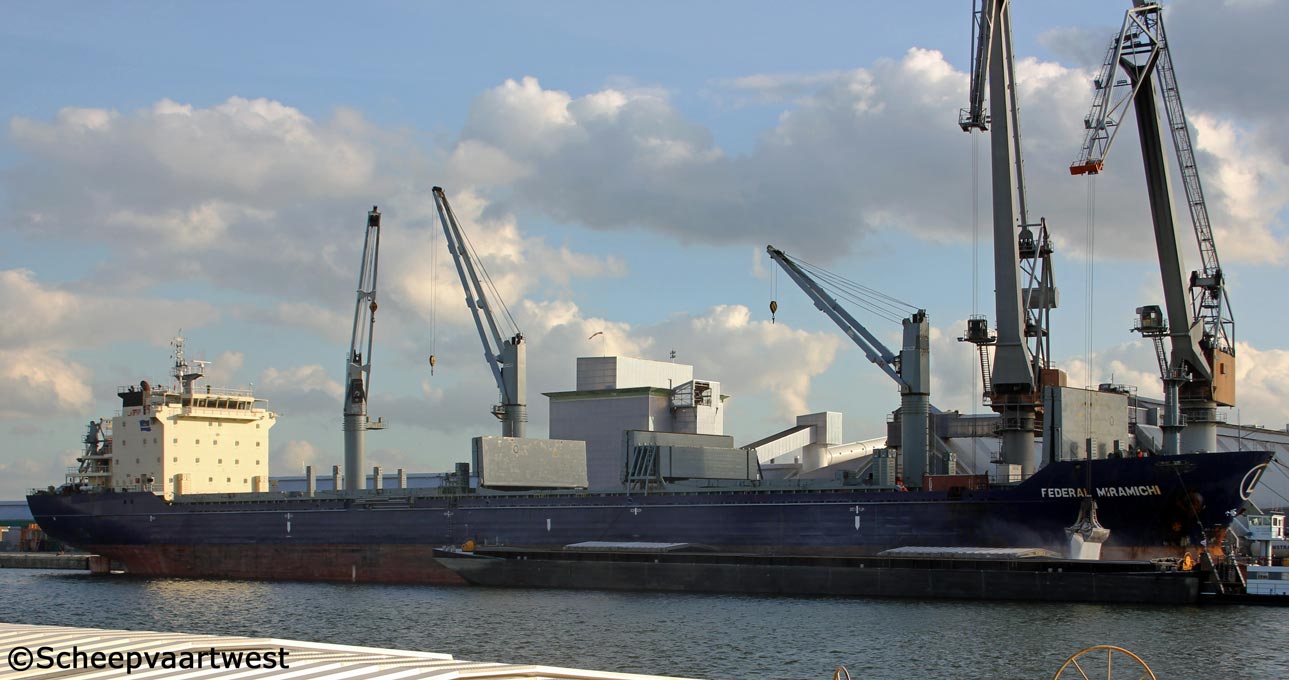

| Antwerpen 30 October 2013 |
|
Name |
FEDERAL MIRAMICHI |
|
Previous names |
2005 Launch as: Lake St. Clair |
|
Type |
Bulk carrier |
|
IMO-number |
9315549 |
|
Call sign |
V2BN9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
18.825 t |
|
DWT |
Summer: 27.783 t |
|
NT |
8.565 t |
|
Length |
185,09 m overall 177,04 m registered |
|
Breadth |
23,50 m registered 23,70 m extreme |
|
Draught |
Summer: 9,80 m |
|
Forecastle |
12,84 m |
|
Poop |
23,73 m |
|
Freeboard |
4.332 mm |
|
Depth |
14,10 m |
|
Speed |
14,0 knots |
|
Built |
2005 |
|
Keel laid |
01.12.2004 |
|
Launch date |
02.09.2005 |
|
Date of completion |
10.11.2005 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. |
|
Yard number |
GWS309 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Movable bulkhead |
1x Movable bulkhead, 3 positions |
|
Continuous decks |
1 |
|
Main engine |
1x HHM MAN-B&W 6 S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW at 129,0 rpm Year of manufacture : 2005 Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 129,0 rpm 4 blades - Diameter: 5.500 mm |
|
Boilers |
1x Steam boiler, oil fired - 9,00 bar Heating surface: 34,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 200,0 m² Year of manufacture: 2005 Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Electric installations |
1x Plant 450/220 V - 131 kVA 3x Plants each 450/220 V - 750 kVA 1x Plant 24 V - 73 Ah 1x Plant 24 V - 200 Ah 4x Plants each 24 V - 200 Ah |
|
Generators |
3x ZJMD MAN-B&W 5L 23/30H main diesel generatorsets each 750 kVA |
|
Emergency generator |
1x SISU Diesel 620 DSRG diesel generatorset 131 kVA |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 2x Receivers each 250 litres - 10,0 bar 1x Receiver 100 litres - 9,0 bar |
|
Bow thruster |
1x Brunvoll FU-63-LTC-1550, transverse variable pitch propeller thruster 680 kW, forward |
|
Number of holds |
5 Hold 1: abt. 24,80 x 8,80 x 13,00 m Hold 2: abt. 27,20 x 19,00 m Hold 3: abt. 28,80 x 19,00 m Hold 4: abt. 27,20 x 19,00 m Hold 5: abt. 28,80 x 19,00 x 13,00 m |
|
Hold capacity |
Grain x Bales Hold 1: 4.898 m³ / 4.720 m³ Hold 2: 7.203,5 m³ / 7.050 m³ Hold 3: 7.628,8 m³ / 7.030 m³ Hold 4: 7.190,4 m³ / 7.030 m³ Hold 5: 7.456,6 m³/ 6.900 m³ Total: Grain: 34.308,60 m³ / 1.214.023 ft³ Bale: 31.489,61 m³ / 1.155.849 ft³ |
|
Number of hatches |
5 Hatch 1: abt. 15,20 x 15,20 m Hatch 2: abt. 20,80 x 19,00 m Hatch 3: abt. 20,80 x 19,00 m Hatch 4: abt. 20,80 x 19,00 m Hatch 5: abt. 20,80 x 19,00 m |
|
Hatch covers |
Hydraulic folding type, steel, watertight |
|
Strength |
Tanktop: 20,0 t/m² Weatherdeck: 2,0 t/m² |
|
Hold ventilation |
3 times/h per hold |
|
Tank capacities |
Ballast: 10.851,7 m³ HFO: 1.317 m³ MDO: 167,6 m³ Fresh water: 244,3 m³ |
|
Anchor equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Lifting equipment |
3x Cranes - SWL 30,0 t outreach 22,00 m each |
|
Accommodation |
23 Persons + 6 Suez Canal crew |
|
Manager |
Sunship Schiffahrtskontor KG |
|
Registered owner |
Reederei M. Lauterjung GmbH & Co. KG MS "LAKE ST. CLAIR" |
|
Last data update |
28 January 2014 |
