| Westerschelde 08 July 2012 |
 |
| Westerschelde 08/07/12 |
|
Name |

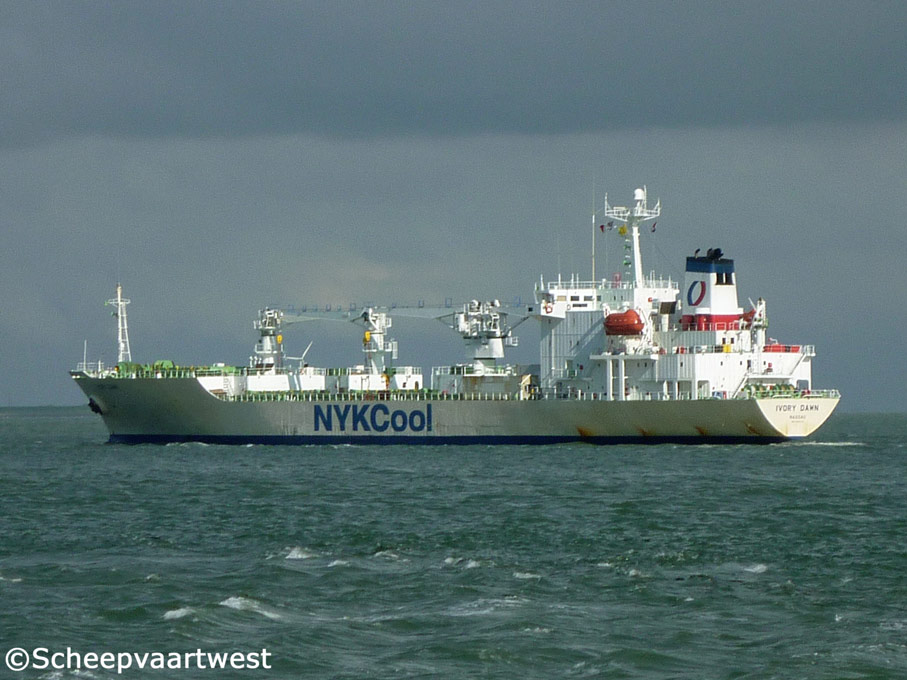

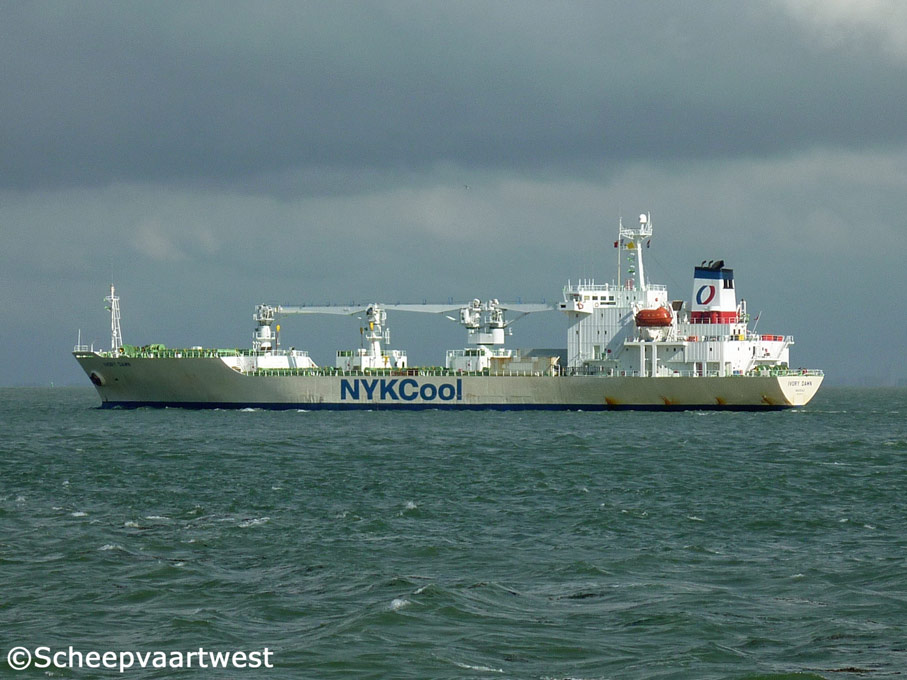

IVORY DAWN |
|
Type |
Refrigerated cargo carrier |
|
IMO-number |
9008732 |
|
Call sign |
C6OU9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
10.412 t |
|
DWT |
Summer: 10.713 t |
|
NT |
5.253 t |
|
Number of 20ft containers |
162 |
|
Number of 40ft containers |
54 |
|
Reefer capacity |
30 |
|
Length |
150,01 m |
|
Breadth |
22,00 m |
|
Draught |
Summer: 9,07 m |
|
Moulded L x B x D |
141,00 x 22,50 x 13,20 m |
|
Registered L x B x D |
142,13 x 22,50 x 13,20 m |
|
Freeboard |
4.168 mm |
|
Depth |
13,20 m moulded |
|
Speed |
Service: 21,0 knots Max.: 23,3 knots |
|
Built |
1991 |
|
Keel laid |
26.04.1991 |
|
Launch date |
11.08.1991 |
|
Date of completion |
28.11.1991 |
|
Builder |
Shikoku Dockyard |
|
Yard number |
862 |
|
Hull material |
Steel |
|
Main engine |
1x B&W-Mitsui 6S60MC - 2 stroke single acting 6 cylinder 600 x 2.292 mm diesel engine - 10.100 kW at 102,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 540 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,93 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
5x Diesel generatorsets - 3.100 kVA |
|
Refrigerated cargo capacity |
14.934 m³ |
|
Tank capacity |
Fuel oil: 1.693 m³ Fresh water: 249 m³ Water ballast: 1.484 m³ |
|
Cargo gear |
2x Cranes - SWL 18,0 t 2x Cranes - SWL 8,0 t |
|
Crew |
25 |
|
Manager |
Masumoto Shipping |
|
Operator |
NYKCool |
|
Registered owner |
Prosper World Marine Co., Ltd. |
|
Last data update |
06 December 2014 |
