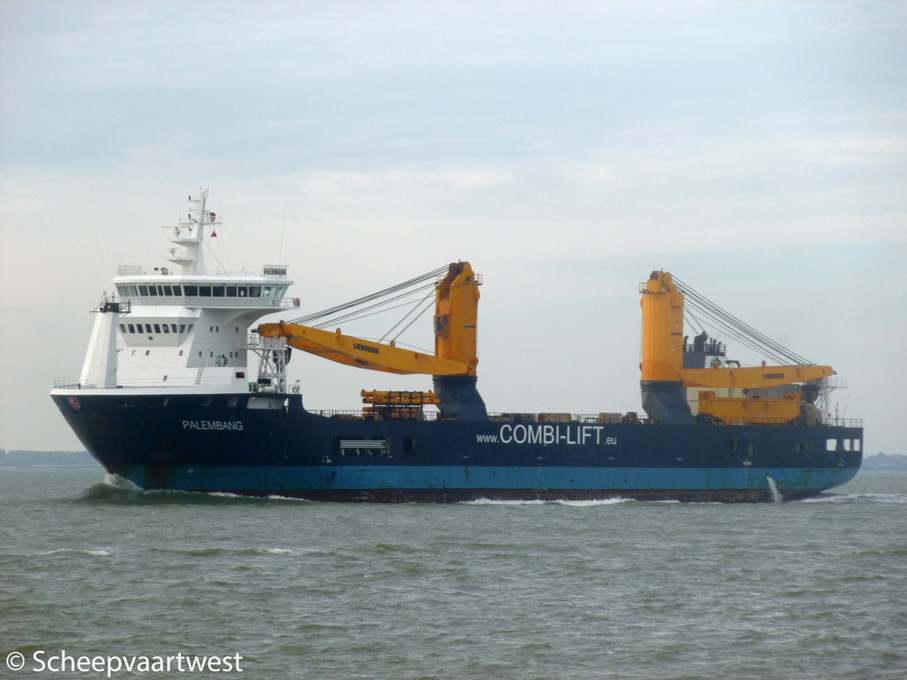

| Westerschelde 20 October 2013 |
 |

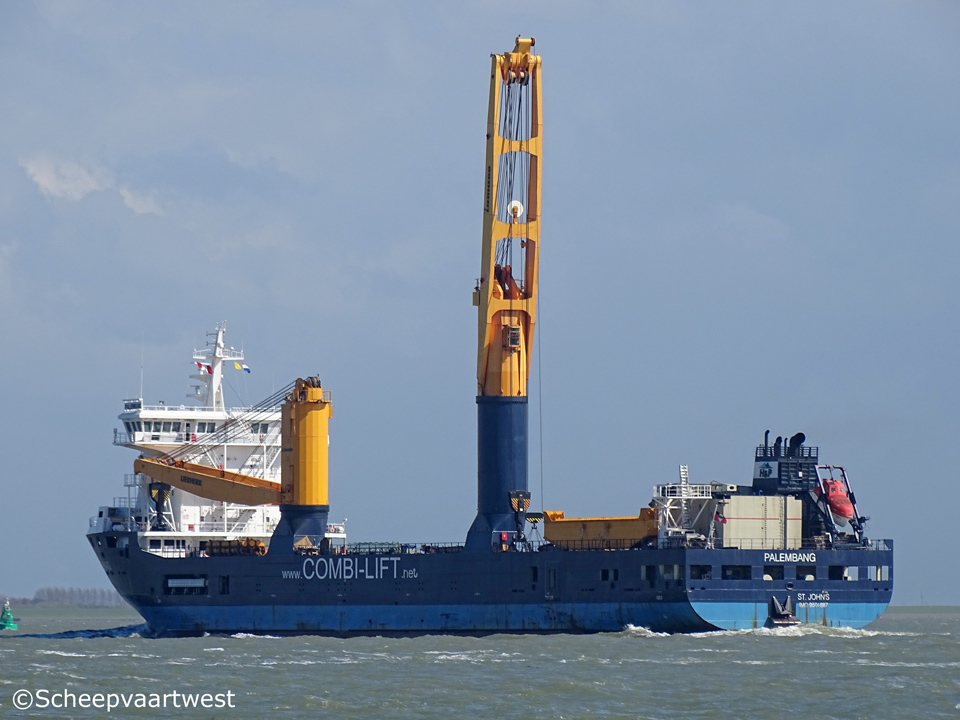

| Westerschelde 07/04/16 |
|
Name |
PALEMBANG |
|
Type |
Multi-purpose dry cargo ship - Heavy lift carrier - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9501887 |
|
Call sign |
V2ET3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
11.473 t Suez: 12.209,91 t |
|
DWT |
Summer: 10.040,6 t |
|
NT |
3.834 t Suez: 11.317,04 t Panama: 8.915 t |
|
Displacement |
17.013 t |
|
Number of 20ft containers |
On deck : 340 in hold: 256 Total: 596 |
|
Length |
134,00 m overall 122,85 m between perpendiculars 123,91 m registered |
|
Breadth |
23,04 m extreme |
|
Draught |
7,80 m |
|
Air draft |
33,57 m |
|
Freeboard |
3.612 mm |
|
Depth |
11,40 m moulded |
|
Speed |
16,5 knots |
|
Built |
2010 |
|
Keel laid |
17/12/2008 |
|
Launch date |
02/02/2010 |
|
Date of completion |
25/05/2010 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. 66, Longwo (S) Road, Gaogang Dist. Taizhou, 225321 Jiangsu People's Republic of China |
|
Yard number |
TK0303 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine -7.200 kW at 500 rpm Year of manufacture: 2010 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 141 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 23,1 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 76,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 450 V - 1.081 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 362,5 kVA 2x Plants each 24 V - 80 Ah 2x Plants each 24 V - 135 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 1.400 kVA |
|
Generators |
2x Main diesel generatorsets each 1.081 kVA |
|
Emergency generator |
1x Diesel generatorset 362,5 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for other purpose 200 Ah 2x Batteries for UPS navigation each 135 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 2x Receivers each 100 litres - 11,0 bar 1x Receiver 200 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 600 kW, forward |
|
Number of holds |
1 95,00 x 17,80 m |
|
Hold capacity |
16.450 m³ |
|
Max permitted loads |
Tank top: 16 t/m² Tweendeck: 4,5 t/m² Hatchcover: 2,5 t/m² |
|
Tank capacities |
IFO: 1.187 m³ MGO: 84 m³ Water ballast: 7.951 m³ Fresh water: 171 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain Length: 577,50 m Diameter: 56 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 450 t each Combinable SWL up to max. 900 t Auxiliary hoist: - SWL 35,0 t each |
|
Crew size |
24 |
|
Manager |
Harren & Partner Ship Management GmbH & Co. KG 28355 Bremen Federal Republic of Germany |
|
Registered owner |
PIT Pacific Investment & Trading GmbH & Co. KG Hermann-Hollerith-Str. 10 28355 Bremen Federal Republic of Germany |
|
Renamed |
2018 Anna Antigua & Barbuda, St. John's - Call sign: V2ET3 Owner: SAL Shipping UG (haftungsbeschränkt) & Co. KG MS "ANNA" Manager: SAL Ship Management UG (haftungsbeschränkt) & Co. KG |
|
Last update |
07 August 2022 |
