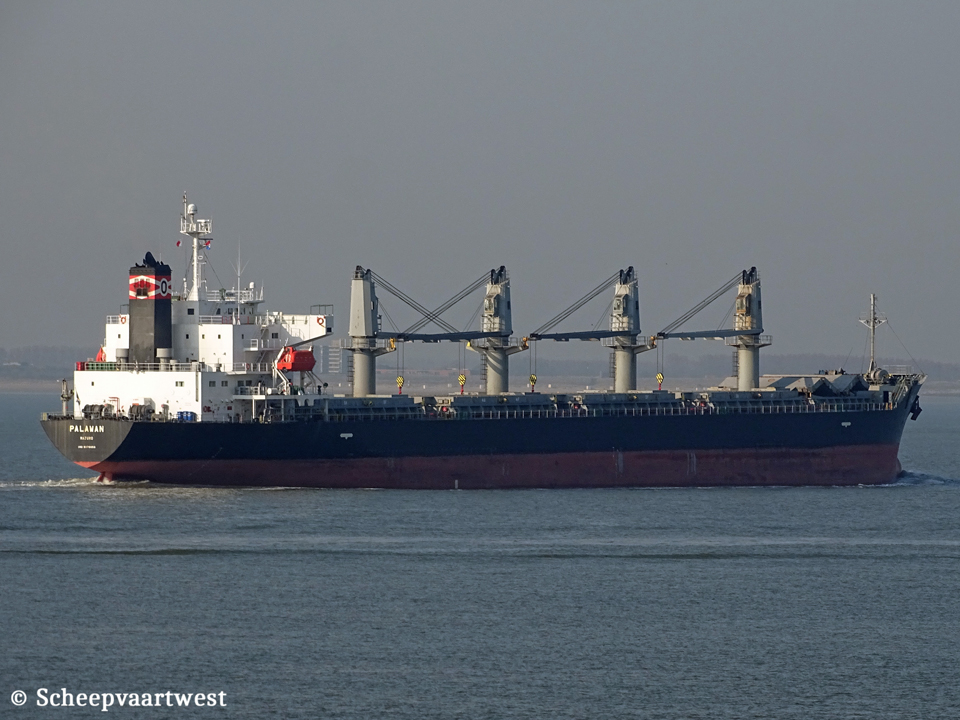

| Westerschelde 18 April 2019 |
|
Name |
PALAWAN |
|
Previous names |
2007 -2010 Palawan 2010 - 2016 Sikyon |
|
Type |
Geared bulk carrier - Handysize |
|
IMO-number |
9379650 |
|
Call sign |
V7UG2 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
2007 - 2010 Liberia, Monrovia - Call sign: A8MG5 |
|
GRT |
19.846 t |
|
DWT |
32.029 t |
|
NRT |
10.514 t |
|
Length |
175,53 m overall |
|
Breadth |
29,40 m moulded |
|
Draught |
Summer: 9,64 m |
|
Moulded L x B x D |
167,00 x 29,40 x 13,70 m |
|
Registered L x B x D |
167,76 x 29,40 x 13,70 m |
|
Keel to mast end |
40,37 m |
|
Freeboard |
4.105 mm |
|
Depth |
13,70 m moulded |
|
Speed |
Service: 14,3 knots Max: 16,3 knots |
|
Built |
2007 |
|
Keel laid |
27/02/2007 |
|
Launch date |
20/04/2007 |
|
Date of completion |
12/06/2007 |
|
Builder |
The Hakodate Dock Co. Ltd. Tokyo Japan |
|
Yard number |
812 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Akasaka 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine 6.840 kW / 9.300 hp at 129,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,97 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 500 kVA |
|
Emergency generator |
1x Diesel generatorset 80 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 39.618 m³ Grain: 40.904 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.481 m³ Fresh water: 226 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew |
24 |
|
ISM & commercial manager |
Orion Reederei GmbH & Co. KG Grosse Elbstrasse 277 22767 Hamburg, Germany |
|
Registered owner |
MS Nova Palawan Schiffahrtsgesellschaft Mbh & Co. KG Care of Orion Reederei GmbH & Co KG Grosse Elbstrasse 277 22767 Hamburg Germany |
|
Latest data adjustment |
13 March 2022 |
