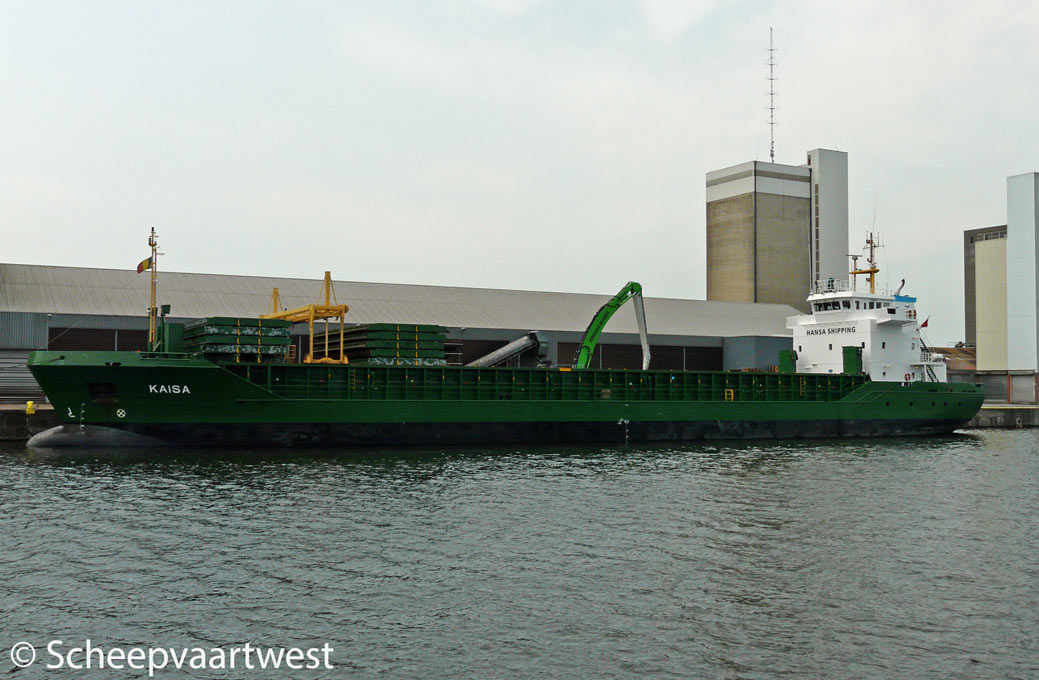

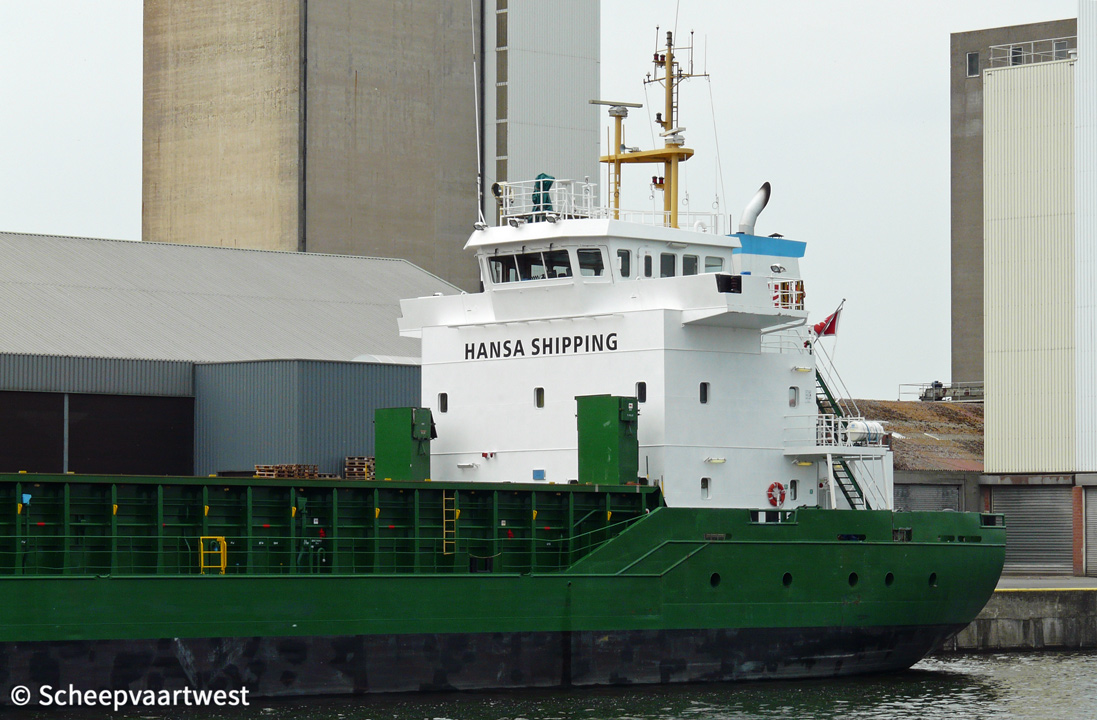

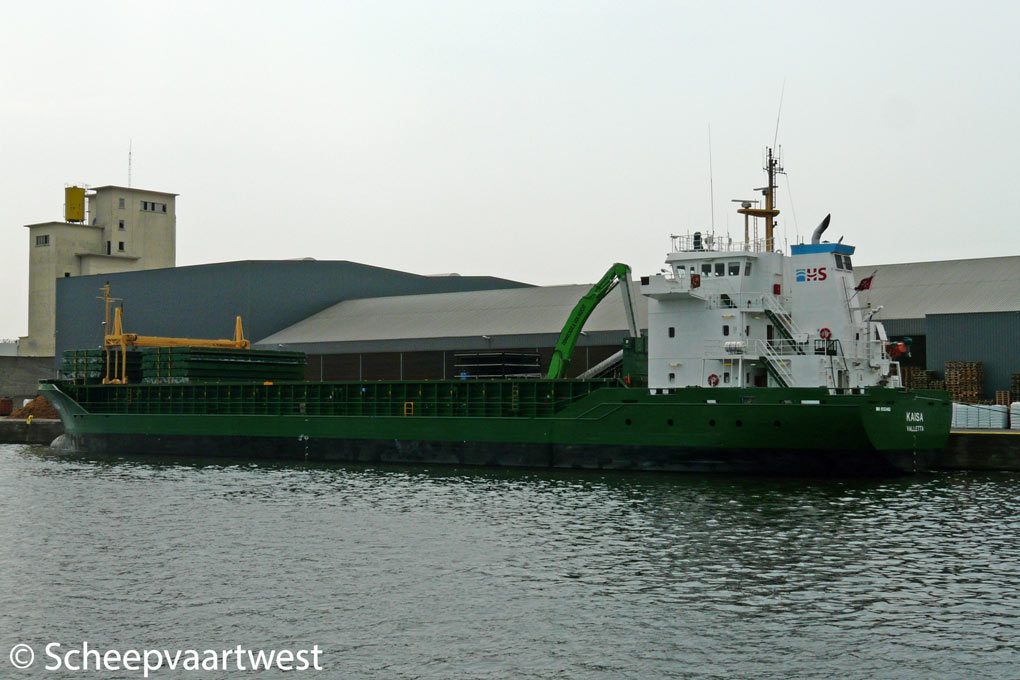

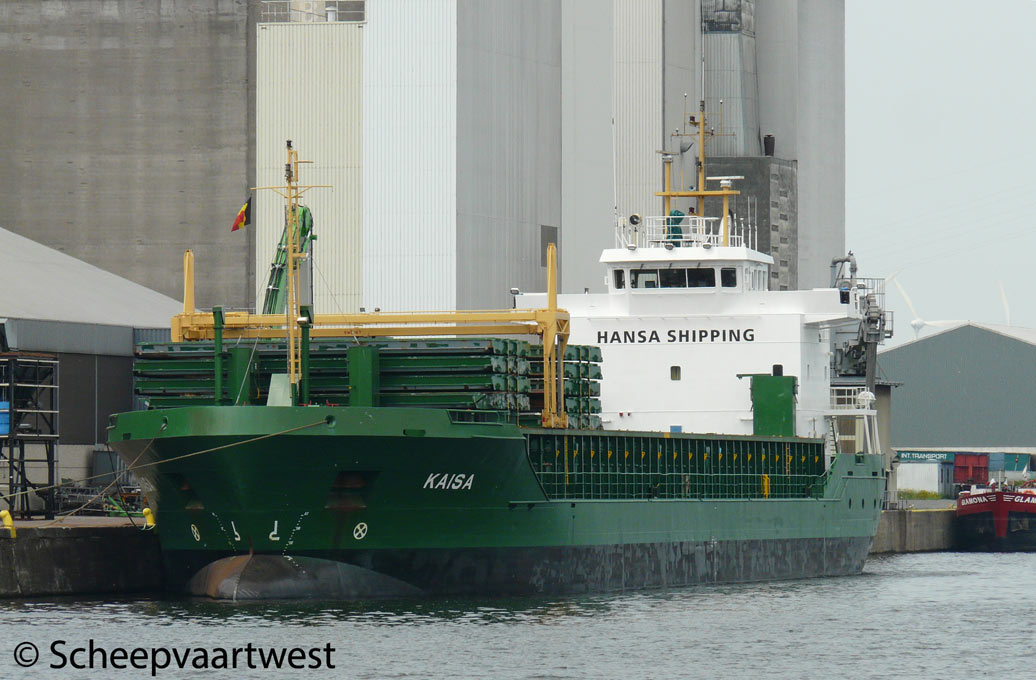

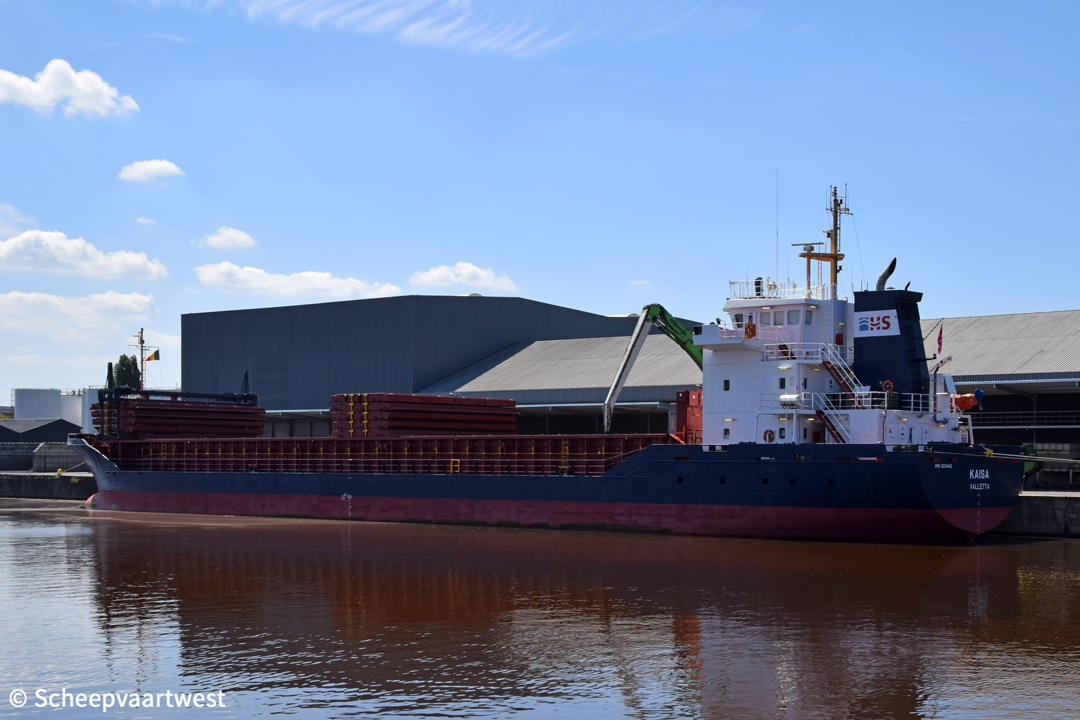

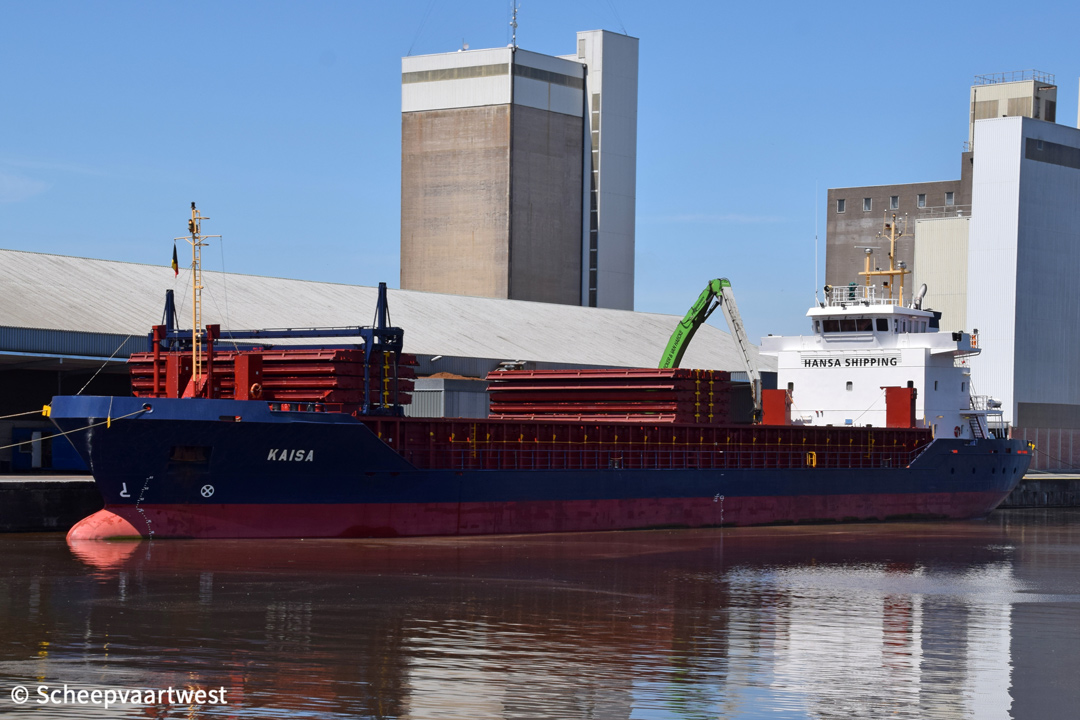

| Brugge, Belgium 13 July 2020 |
 |
 |
 |
 |
 |
||||
| Brugge 13/07/20 | Brugge 14/07/13 | Brugge 14/07/13 | Brugge 14/07/13 | Brugge 14/07/13 |
|
Name |
KAISA |
|
Previous names |
2005 - 09/2008 Aspoe |
|
Type |
Multi-Purpose dry cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9333462 |
|
Call sign |
9HRF9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.183 t |
|
DWT |
Summer: 4.527,5 t |
|
NT |
1.765 t |
|
Number of 20ft containers |
In hold: 126 On hatch: 50 Total: 176 |
|
Length |
89,94 m overall 85,19 m registered 84,98 m between perpendiculars |
|
Breadth |
15,20 m registered |
|
Draught |
5,25 m |
|
Freeboard |
1.358 mm |
|
Depth |
6,90 m moulded |
|
Speed |
12,0 knots |
|
Built |
2005 |
|
Keel laid |
30/06/1994 |
|
Launch date |
06/08/2005 |
|
Date of completion |
22/12/2005 |
|
Builder casco |
Santierul Naval Giurgiu Giurgiu Romania |
|
Builder completion |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
655 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
2x Movable - 4 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.850 kW at 750 rpm Year of manufacture: 2005 Manufacture: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 221 rpm |
|
Boilers |
Water heater, oil fired - 5,0 bar Heating surface: 7,0 m² Year of Manufacture: 2004 Manufacture: Carbofuel Officine Meccaniche S.p.A. Via delle Brughiere angolo Via Sicilia 20020 Bienate di Magnago Italy |
|
Electric installations |
1x Plant 400/220 V - 175 kVA 1x Plant 400 V - 435 kVA 1x Plant 400 V - 175 kVA |
|
Shaft generator |
1x Leroy Somer type LSA.47.1L10 - 348 kW / 435 kVA at 1.500 rpm |
|
Generators |
1x Sisu Diesel 634 DSBIG main diesel generatorset 150 kW / 175 kVA at 1.000 rpm |
|
Emergency + Harbour gen. |
1x Diesel generatorset 175 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse Jastram BU 50F thruster 300 kW, forward |
|
Number of holds |
1 61,50 x 12,65 x8,42 m |
|
Cargo capacity |
225.700 ft³ / 6.392 m³ |
|
Number of hatches |
1 61,50 x 12,65 m |
|
Hatch type |
Pontoon |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m Diameter: 36 mm |
|
Lidting equipment |
1x Gantry crane |
|
Tank capacities |
Ballat: 1.996,1 m³ Fuel oil: 216,1 m³ Diesel il: 39,0 m |
|
Crew |
9 |
|
Manager |
Hansa Ship Management OÜ Ahtri 12 10151 Tallinn Estonia |
|
Registered owner |
Hansa Shipping Ltd. Flat 10, Florida Mansions Enrico Mizzi Street Ta'Xbiex XBX1452 Republic of Malta |
|
Latest data adjustment |
26 August 2020 |
