| Terneuzen 16 August 2019 |
 |
 |
 |
||
| Terneuzen 16/08/19 | Westerschelde 01/12/12 | Westerschelde 25/04/16 | ||
|
Name |

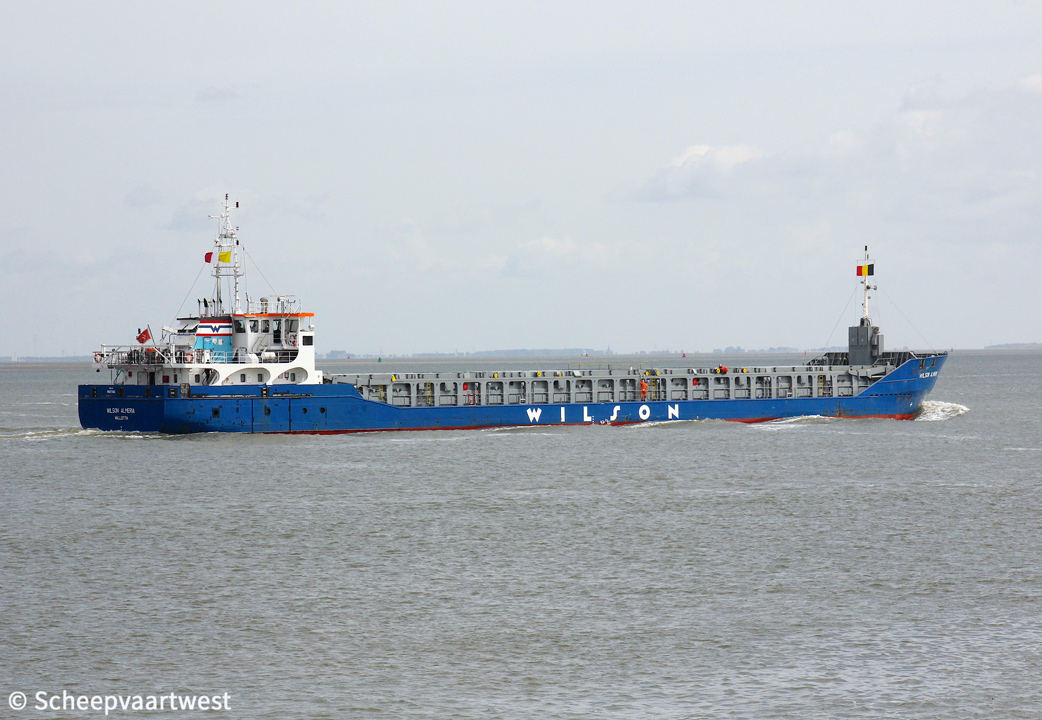

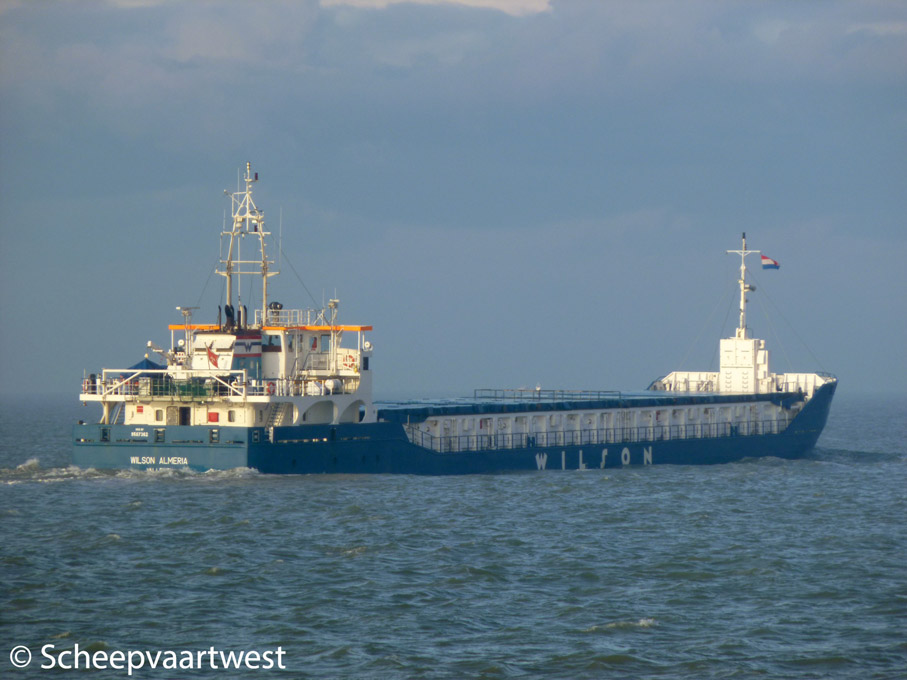

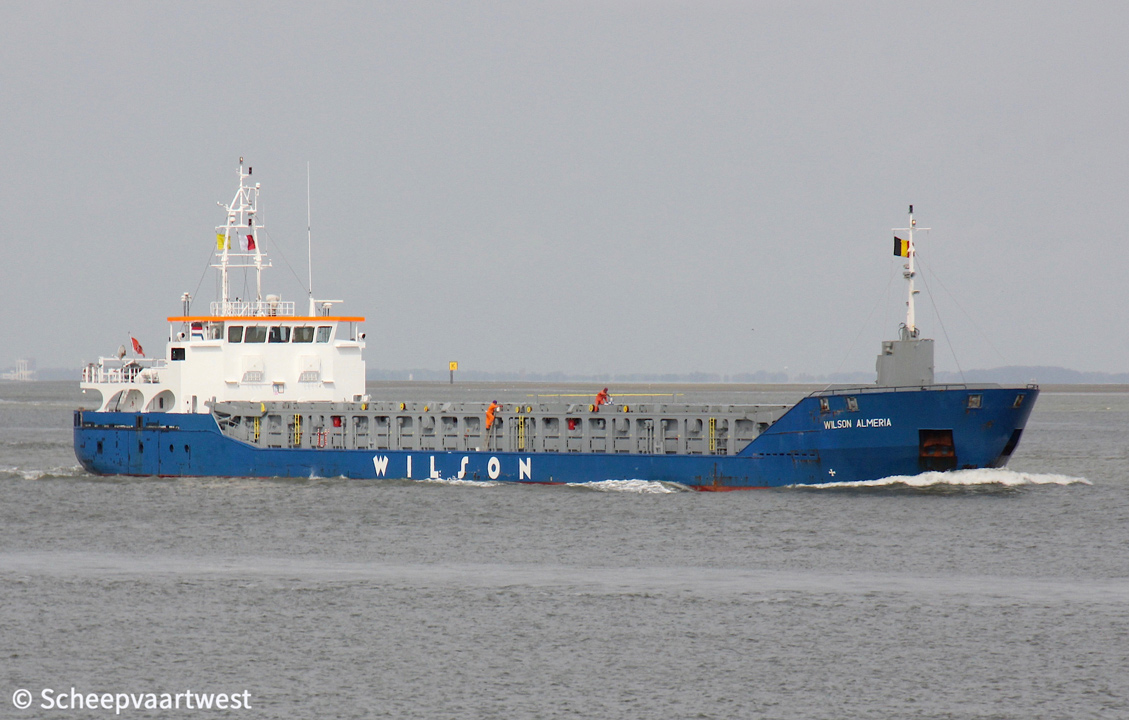

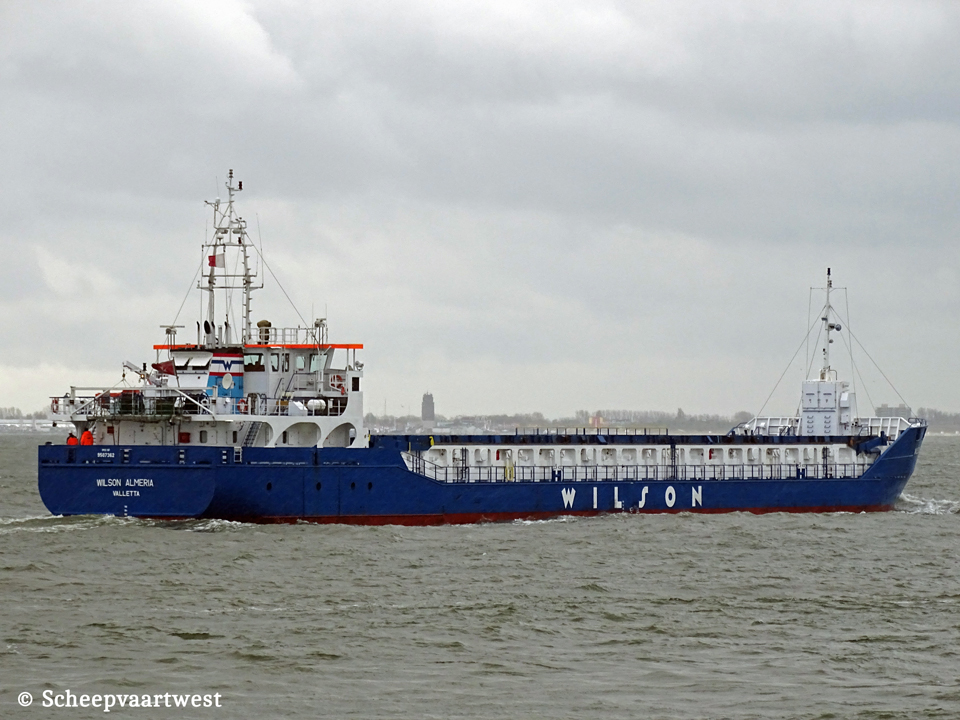

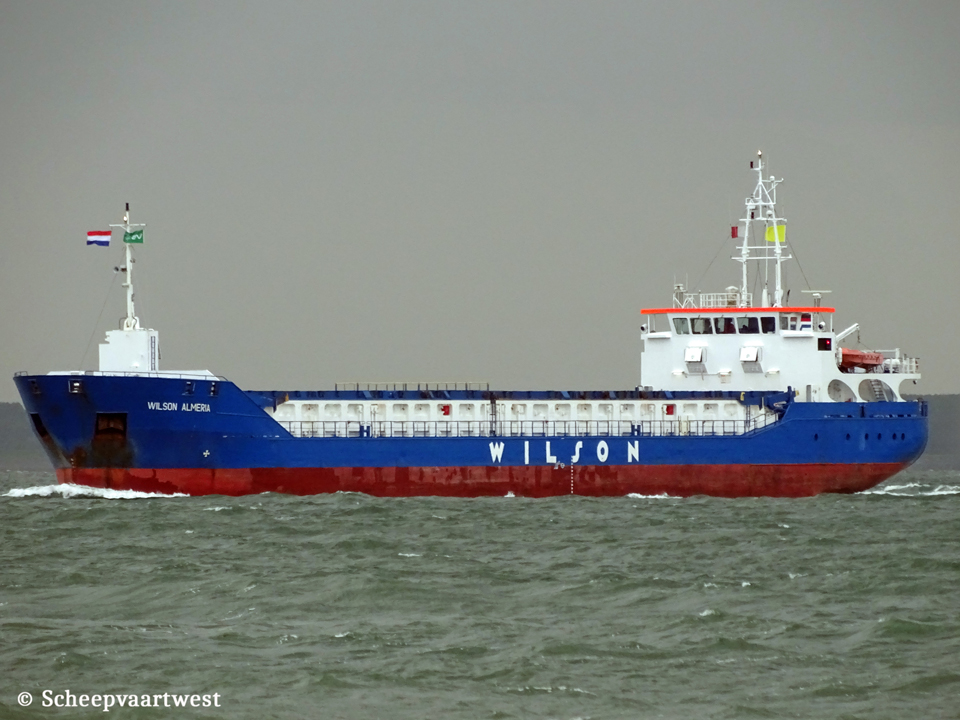

WILSON ALMERIA |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9507362 |
|
Call sign |
LXVY |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flag |
2010 - 2020 Malta, Valletta - Call sign: 9HA2502 |
|
GT |
2.451 t |
|
DWT |
Summer: 3.595 t Winter: 3.483 t |
|
NT |
1.325 t |
|
Number of 20ft containers |
On deck: 20 |
|
Length |
88,23 m overall 84,79 m registered |
|
Breadth |
12,40 m registered |
|
Draught |
4,13 m |
|
Air draft |
22,50 m |
|
Distance keel top antenna |
22,35 m |
|
Forecastle |
6,42 m |
|
Quarterdeck |
16,20 m |
|
Depth |
6,70 m moulded |
|
Speed |
10,5 knots |
|
Built |
2010 |
|
Keel laid |
15/06/2007 |
|
Launch date |
27/08/2010 |
|
Date of completion |
27/10/2010 |
|
Builder |
Slovenske Lodenice Komarno A.S. Rolnickej Skoly 1519 945 01 Komarno Slovak Republic |
|
Yard number |
2120 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Movable bulkhead |
2x Movable bulkheads in 9 different positions making 4 different compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine 1.200 kW at 1.000 rpm Year of manufacture: 2009 Manufacturer: Wärtsilä Finland Oy Tarhaajantie 2 65380 Vaasa Finland |
|
Propellers |
1x Solid propeller (keyless) - aft at 256 rpm |
|
Boilers |
1x Water heater, oil fired - 12,0 bar Year of manufacture: 2009 Manufacturer: Max Weishaupt GmbH Max Weishaupt-Str. 14 88475 Schwendi Federal Republic of Germany |
|
Electric installations |
1x Plant 400 V - 120 kVA 1x Plant 400 V - 215 kVA 1x Plant 400 V - 116 kVA 1x Plant 4 00 V - 90 kVA 2x Plants each 24 V - 50 Ah 2x Plants each 24 V - 50 Ah 1x Plant 24 V - 140 Ah 1x Plant 24 V - 180 Ah 1x Plant 24 V - 180 Ah |
|
Shaft generator |
1x 116 kVA |
|
Generators |
1x Sisu 49.492 CTAG diesel generatorset 215 kVA 1x Sisu 84 CTA diesel generatorset 120 kVA |
|
Emergency generator |
1x Sisu 49.548 DTG diesel generatorset 90 kVA |
|
Batteries |
1x Battery for automation 180 Ah 1x Battery for other purpose 180 Ah 1x Battery for UPS radio 140 Ah 2x Batteries for start auxiliary engine each 50 Ah 2x Batteries for start emergency engine each 50 Ah |
|
Compressed air receivers |
2x Receivers each 125 litres - 30 bar |
|
Bow thruster |
1x Transverse thruster - 130 kW, forward |
|
Number of holds |
2 Hold 1: 24,70 x 10,10 x 7,77 m Hold 2: 31,34 x 10,10 x 7,77 m |
|
Hold capacity |
Bales & grain: Hold 1: 1.991 m³ - 70.392 ft³ Hold 2: 2.509 m³ - 88.605 ft³ |
|
Number of hatch |
2 Hatch 1: 25,20 x 10,10 m Hatch 2: 31,80 x 10,10 m |
|
Hatch type |
System TTS multifold crocodile |
|
Tank capacities |
Fuel oil: 170 m³ Diesel oil: 44 m³ Water ballast: 1.377,3 m³ |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m Diameter: 30 mm |
|
Crew size |
8 |
|
Manager |
Vertom Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Germany |
|
Previous manager |
Bojen Bereederung GmbH & Co. KG Borgwardring 80 26802 Moormerland-Neermoor Federal Republic of Germany |
|
Operator |
Wilson Shipping |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "HAYE IKENSON" GmbH & Co. KG |
|
Previous owner |
Siegfried Bojen Schiffahrtsbetrieb e.K. Borgwardring 80 26802 Moormerland Federal Republic of Germany |
|
Latest data adjustment |
23 June 2023 |
