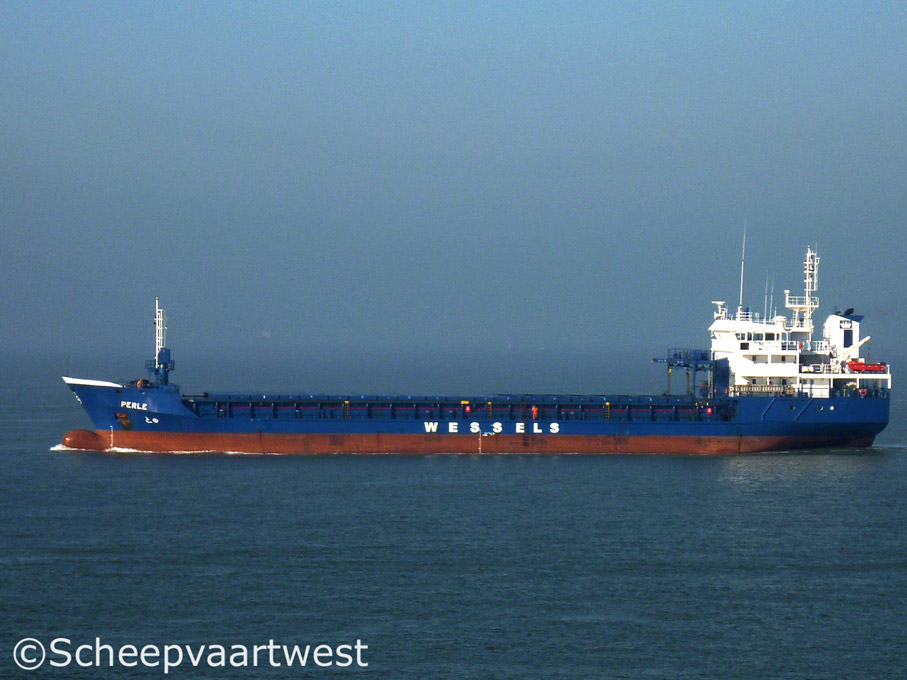

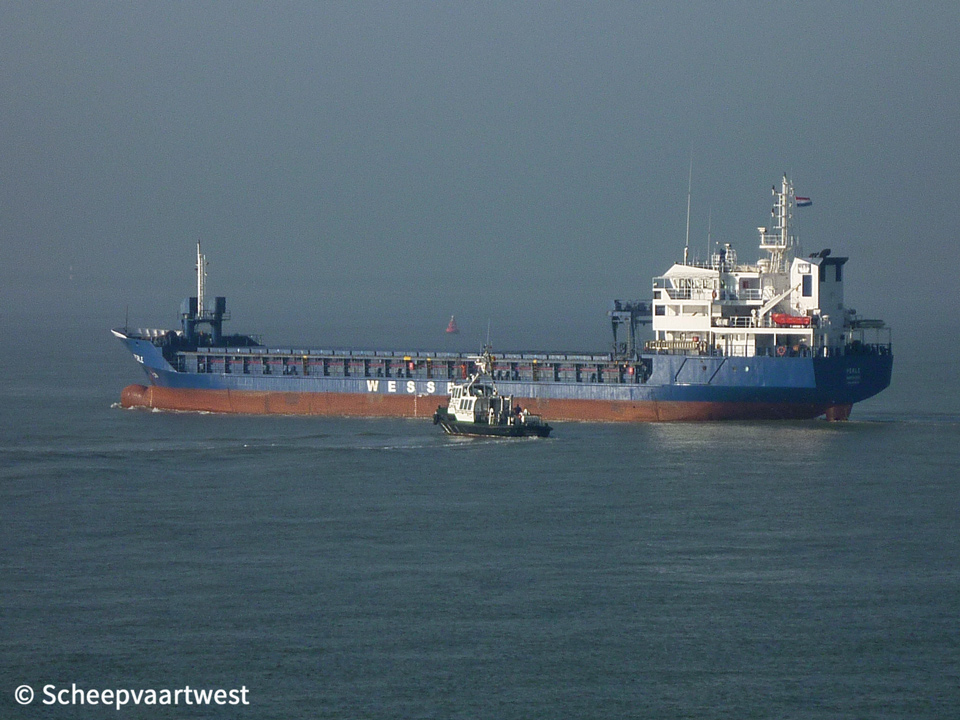

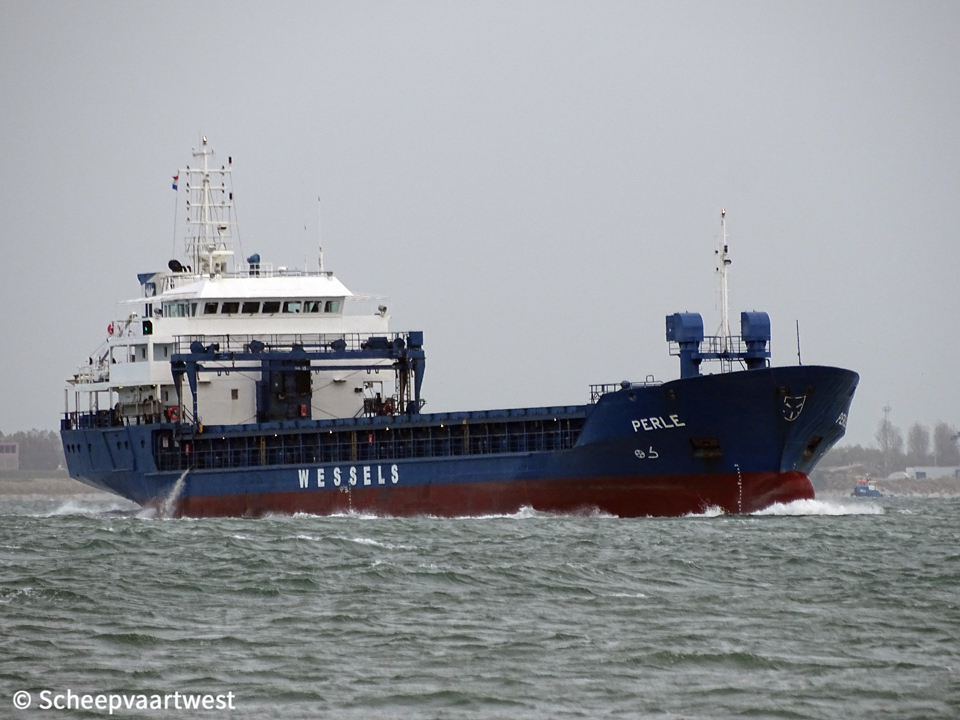

Perle 03
Westerschelde 29 September 2011



Name

PERLE

Type

General cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

Boxshapped seagoing multi-purpose ship

IMO-number

9119579

Call sign

DFRD

Flag

Germany

Port of registry

Haren/Ems

GT

2.981 t

DWT

4.270 t

NT

1.505 t

Number of 20ft containers

114

Length

89,90 m overall

84,90 m registered

Breadth

15,20 m registered

Draught

5,641 m

Forecastle

7,02 m

Poop

15,10 m

Depth

7,10 m

Speed

12,3 knots

Built

1998

Keel laid

26.06.1997

Launch date

22.06.1998

Date of completion

12.1998

Builder

Rousse Industry A.D.
5, Matei Stoikov Street
7000 Ruse
Bulgaria

Yard number

391

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK 6 M 453 C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.080 kW at 600,0 rpm

Year of manufacture: 1995

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

Controllable pitch propeller - aft at 175,0 rpm

Electric installations

1x Plant 380/220 V - 297 kVA

1x Plant 380/220 V - 297 kVA

1x Plant 380 V - 550 kVA

1x Plant 380 V - 103 kVA

Shaft generator

1x 550 kVA

Generators

2x MAN type D2866 LXE30 - 4 stroke 6 cylinder diesel engine each 238 kW at 1.500 rpm coupled with A. vanKaick type DSG 52M1,4 generator each 297 kVA at 1,500 rpm 3x380 Volt 50 Hz

Emergency generator

1x MAN type O226MTE - 4 stroke 6 cylinder diesel engine 85 kW at 1.500 rpm coupled with A. vanKaick type DSG 36L2-4 generator 103 kVA at 1.500 rpm 3x 380 Volt 50 Hz

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 200 kW, forward

Cargo capacity

Grain: 5.519 m³

Number of holds

1

Number of hatches

2

Hatch 1: 26,40 x 12,90 x 8,10 m

Hatch 2: 25,20 x 12,90 x 8,10 m

Separated by King Beam

Deck strength

Tanktop: 12,0 t/m²

Tank capacities

Fuel oil: 257 m³ / 205 t

Water ballast: 1.942 m³ / 1.990 t

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Ventilation

6 times

Manager

Wessels Reederei GmbH & Co. KG
Industriestr. 12
49733 Haren/Ems
Federal Republic of Germany

Operator

Wessels

Registered owner

MS "PERLE" River Liner GmbH & Co. KG
Industriestr. 12
49733 Haren/Ems
Federal Republic of Germany
