| Brugge, Belgium 02 July 2010 |
 |
 |
|
| Brugge 02/07/10 | Brugge 02/07/10 |
|
Name |

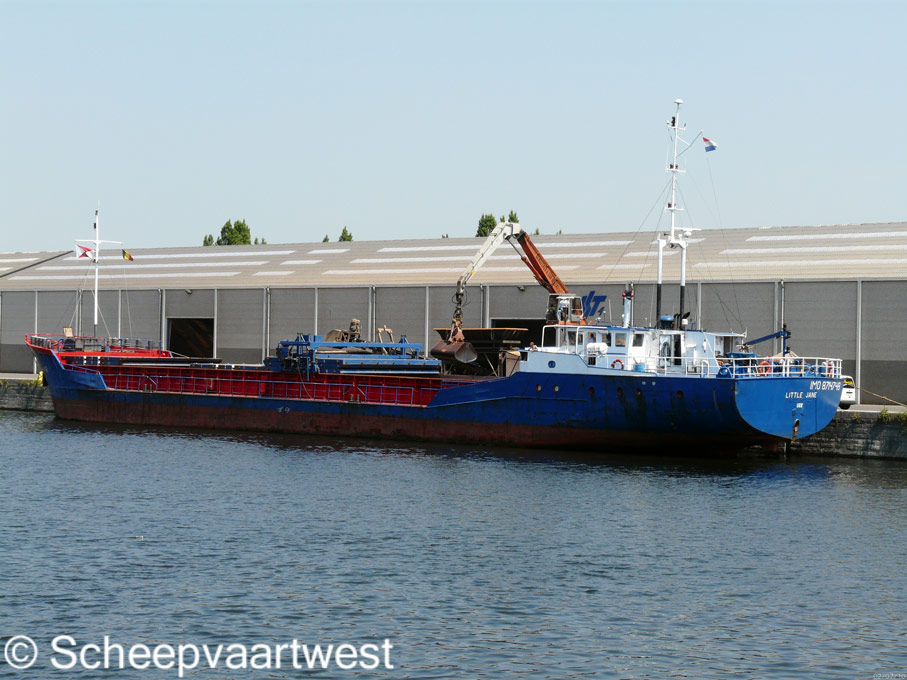

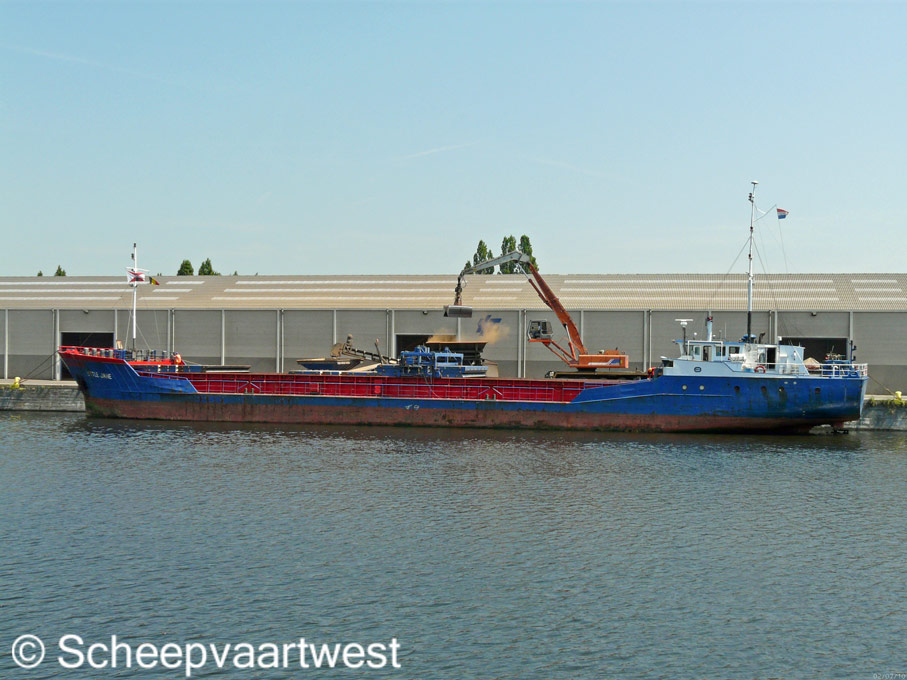

LITTLE JANE |
|
Previous names |
1988 - 1988 Boeran 1988 - 1991 Sirocco 1991 - 1998 Coral 1998 Little Jane |
|
Type |
General cargo - single deck |
|
IMO-number |
8714748 |
|
Call sign |
PHMV |
|
Flag |
The Netherlands |
|
Port of registry |
Urk |
|
Previous port of registry |
Willemstad |
|
GT |
851 t |
|
DWT |
1.276 t |
|
NT |
490 t |
|
Length |
64,33 m overall 60,00 m between perpendiculars |
|
Breadth |
10,55 m |
|
Draught |
Summer: 3,39 m |
|
Freeboard |
626 mm |
|
Depth |
4,00 m |
|
Speed |
10,5 knots |
|
Built |
1988 |
|
Date of completion |
26.04.1988 |
|
Builder |
Ferus Smit Scheepswerf The Netherlands |
|
Yard number |
250 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartment |
4 |
|
Continuous deck |
1 |
|
Main engine |
1x Mak Caterpillar - 4 stroke 6 cylinder 170 x 190 mm internal combustion engine - 578 kW / 785 hp at 1.600 rpm Built: 1988 Licence: Caterpillar, Mossville - USA |
|
Propelling system |
1x Screw Propeller Solid at 280 rpm |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V |
|
Diesel generators |
3x Diesel generatorsets each 31 kVA - 25 kW - 53 hp |
|
Number of holds |
1 |
|
Total capacity of holds |
Grain: 1.811 m³ Bale: 1.726 m³ |
|
Cargo hatchways |
1 Dimension: 40,80 x 8,00 m |
|
Fuel capacity |
56 m³ |
|
Crew |
5 |
|
Manager |
Maritiem Technisch Bureau Foppen |
|
Previous manger |
1988 - 2005 Ewald Müller & Co. GmbH |
|
Owner |
Maritiem Technisch Bureau Foppen |
