| Antwerpen 30 April 2013 |
 |
 |
 |
 |
|||
| Antwerpen 30/04/13 | Westerschelde 05/08/14 | Westerschelde 19/07/12 | Westerschelde 19/07/12 |
|
Name |

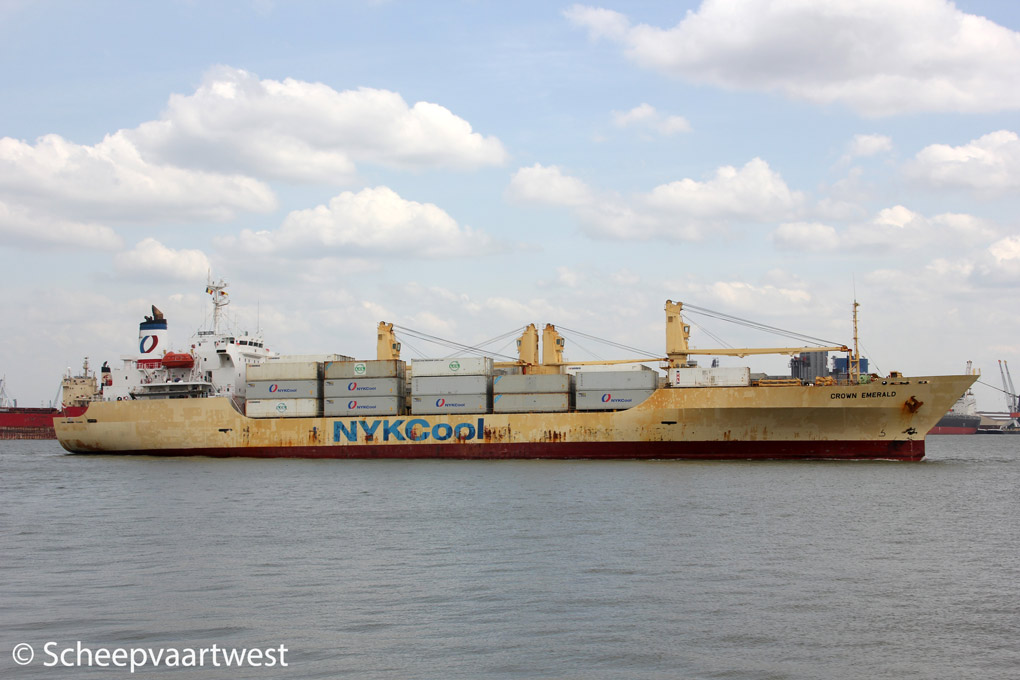

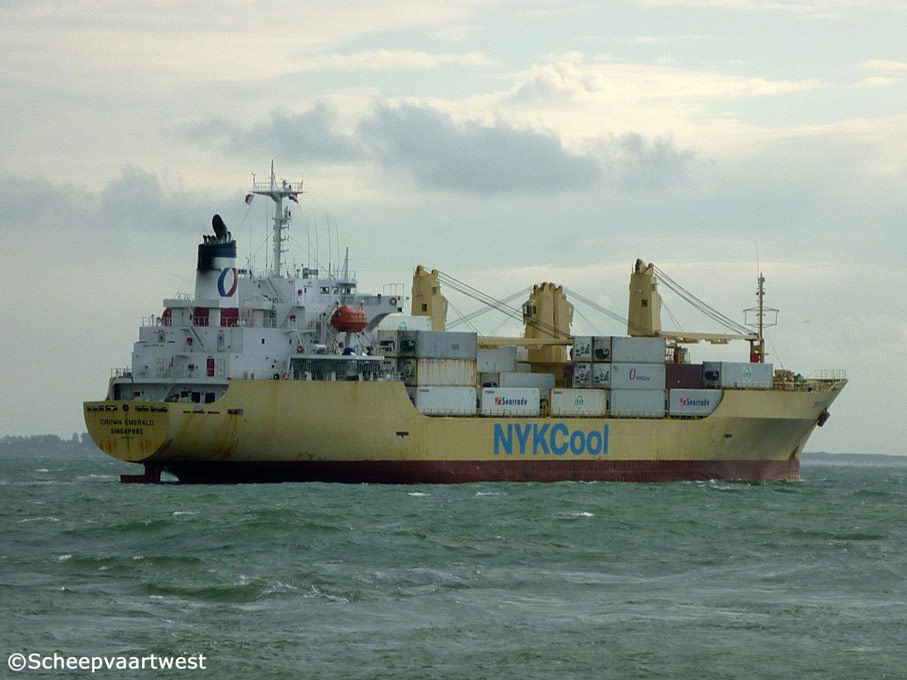

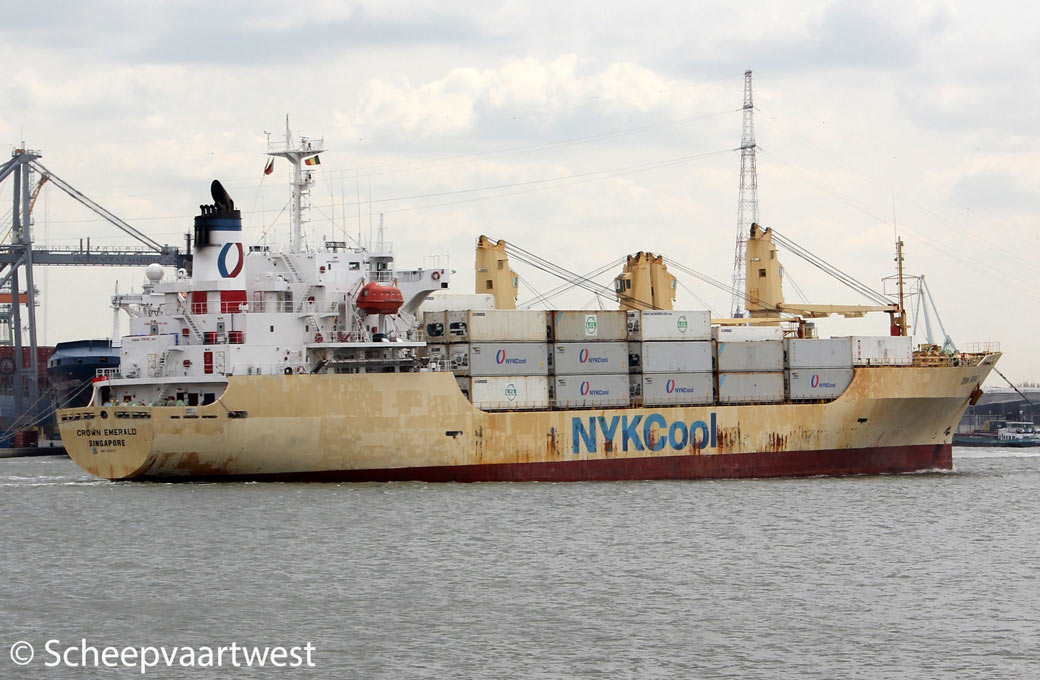

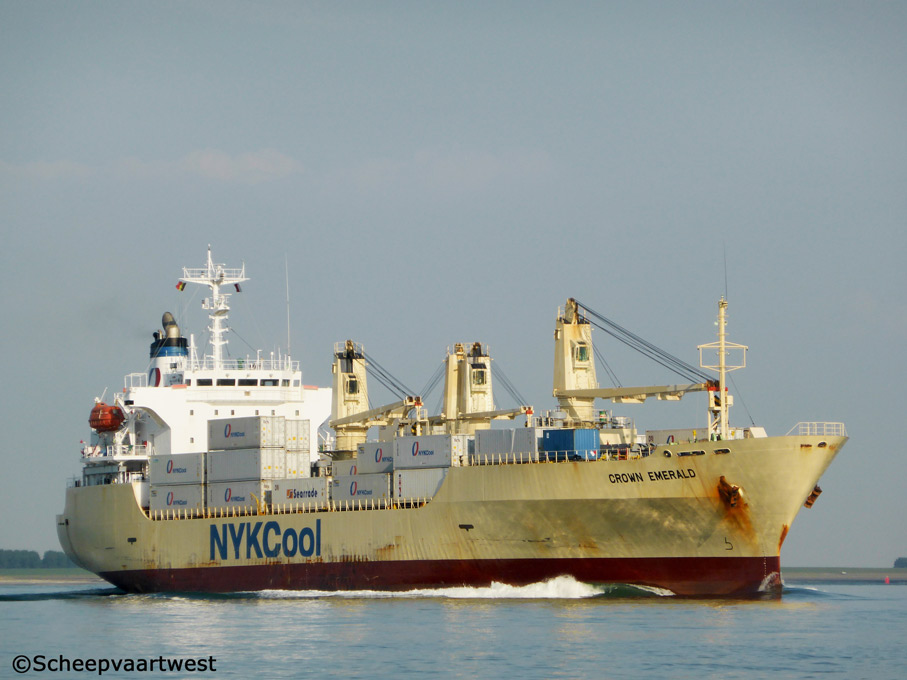

CROWN EMERALD |
|
Type |
Refrigerated cargo carrier - Designed for carriage of containers |
|
IMO-number |
9128037 |
|
Call sign |
9V7867 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore |
|
GT |
10.519 t |
|
DWT |
10.351 t |
|
NT |
5.406 t |
|
Number of 20ft containers |
200 |
|
Reefer plugs |
69 |
|
Length |
151,99 m overall |
|
Breadth |
23,00 m |
|
Draught |
8,67 m |
|
Moulded L x B x D |
139,40 x 23,00 x 13,00 m |
|
Registered L x B x D |
141,15 x 23,00 x 13,00 m |
|
Freeboard |
Summer: 4.363 mm |
|
Depth |
13,00 m moulded |
|
Speed |
Max.: 22,5 knots |
|
Built |
1996 |
|
Keel laid |
04.09.1995 |
|
Launch date |
22.12.1995 |
|
Date of completion |
27.03.1996 |
|
Builder |
Iwagi Zosen Co., Ltd. |
|
Yard number |
SZ-164 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.300 mm diesel engine - 11.915 kW at 105,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 550 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Vertical boiler -7,9 bar Evaporation: 3,10 t/h Manufacturer: Aalborg Industries Ltd. (Kajiwara Iron Works Co., Ltd.) |
|
Generators |
4x Main diesel generatorsets 3.750 kVA |
|
Number of holds |
4 |
|
Cargo capacity |
Refrigerated: 15.508 m³ / 547 680 ft³ |
|
Deck area |
6.227 m² |
|
Minimum temp |
-30°C |
|
Tank capacities |
Fuel oil: 1.806 m³ Fresh water: 381 m³ Water ballast: 923 m³ |
|
Cargo gear |
2x Cranes - SWL 35,0 t each 2x Cranes - SWL 8,0 t each |
|
Manager |
Wallem Shipmanagement Limited |
|
Operator |
NykCool |
|
Registered owner |
Metro Cool Shipping Pte. Ltd. |
|
Renamed |
Crown Emma Barbados- Call sign: 8PLI |
|
Latest data adjustment |
05 May 2015 |
