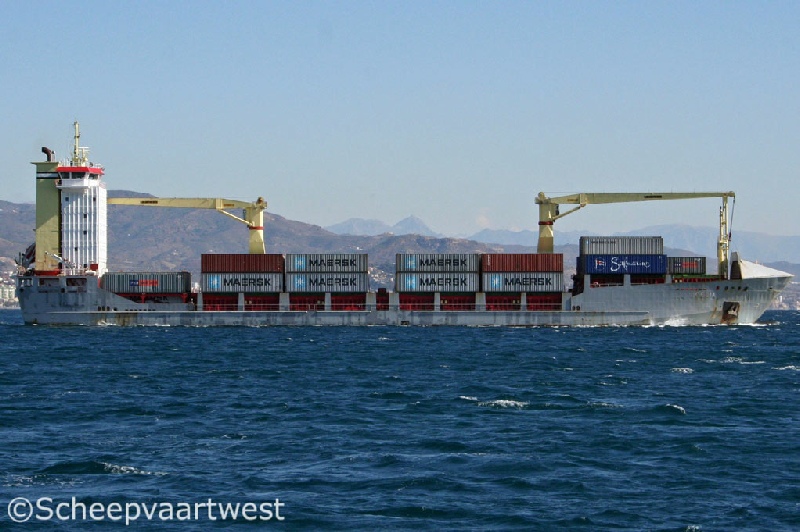

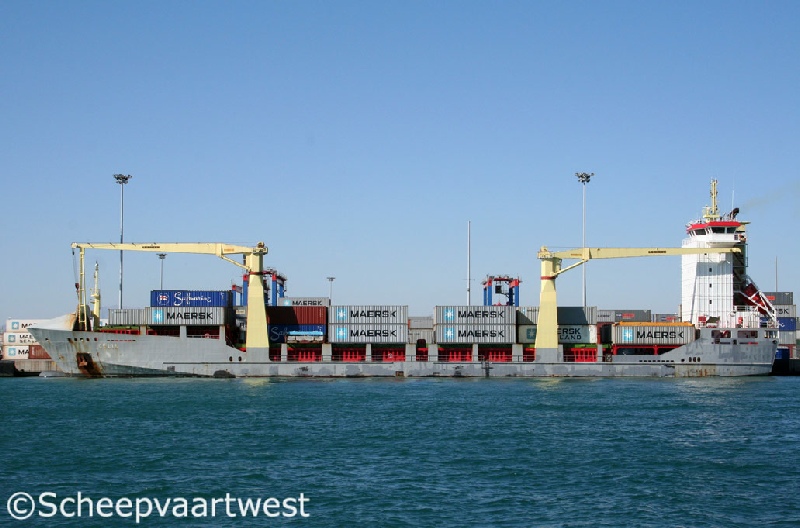

| Malaga, Spain 12 February 2012 |
 |
| Malaga, Spain 12/02/12 |
|
Name |
CELIA |
|
Type |
Multi-Purpose dry cargo ship - Equipped for transport of containers |
|
IMO-number |
9184237 |
|
Call sign |
V2BK7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.264 t |
|
DWT |
Summer: 8.252 t |
|
NT |
3.125 t |
|
Number of 20ft containers |
In hold: 238 On deck: 407 Total: 645 |
|
Number of 40ft containers |
90 |
|
Containers capacity 14 t |
400 |
|
Reefer capacity |
In holds: 48 On deck: 52 Total: 100 |
|
Length |
118,28 m overall 108,17 m registered |
|
Breadth |
18,40 m |
|
Draught |
8,138 m |
|
Depth |
10,00 m moulded |
|
Speed |
16,25 knots |
|
Built |
2005 |
|
Keel laid |
10.12.2001 |
|
Launch date |
01.10.2005 |
|
Date of completion |
08.12.2005 |
|
Builder |
Madenci Gemi Sanayi Ltd. Sti. |
|
Yard number |
15 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7 S 35 MC Mk 7 - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine - 5.180 kW at 173,0 rpm Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propeller |
1x Controllable pitch propeller - aft at 173 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 69,2 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 16,2 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production |
|
Electric installations |
2x Plant 440 V - 550 kVA 1x Plant 440 V - 950 kVA 1x Plant 440 V - 131 kVA |
|
Shaft generator |
1x 950 kVA |
|
Generators |
2x Main diesel generatorsets each 550 kVA |
|
Emergency generator |
1x Diesel generatorset 131 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster 500 kW- forward |
|
Cargo capacity |
Grain: 10.575 m³ Bales: 10.152 m³ |
|
Number of holds |
3 Hold 1: 19,87 x 12,80 x 13,60 m Hold 2: 25,88 x 15,20 x 10,79 m Hold 3: 25,88 x 15,20 x 10,79 m |
|
Hatches |
10x Folding hydraulic hatch covers, Macgregor type |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain Length: 522,50 m |
|
Lifting devices |
2x Liebherr cargo cranes each - SWL 40,0 t, portside |
|
Manager |
Intership Verwaltungsgesellschaft mbH |
|
Registered owner |
MS "CELIA" Schiffahrtsges. mbH & Co. Reederei KG |
