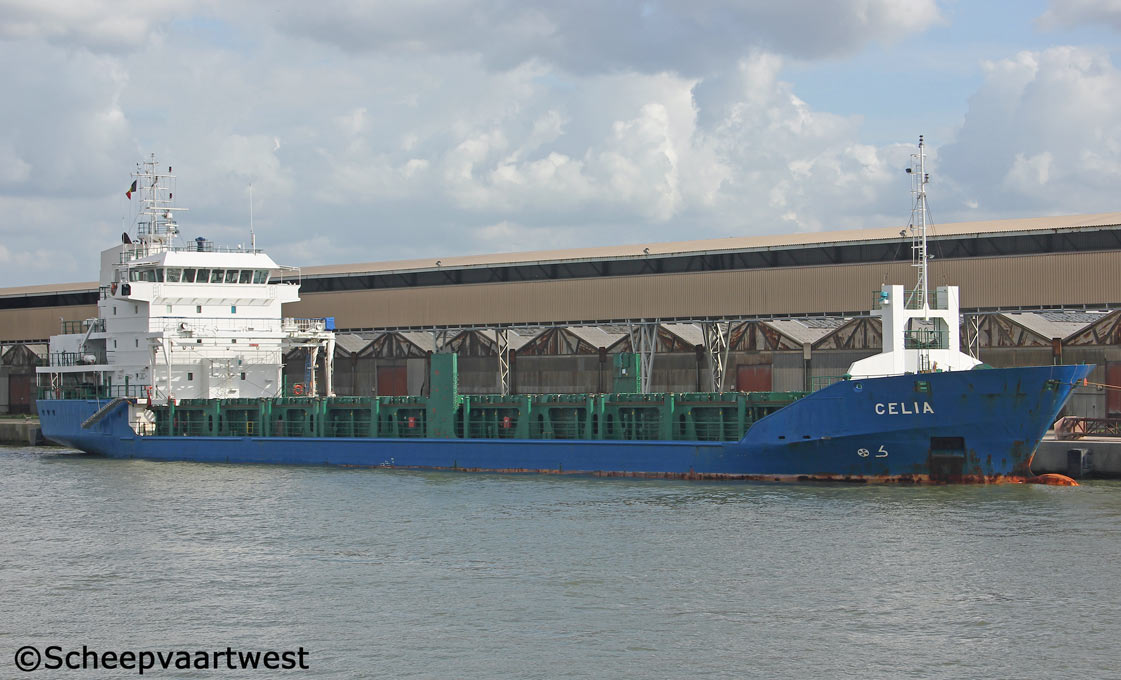

Celia - IMO 9344394

Antwerpen 07 May 2015

Name

CELIA

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9344394

Call sign

V2DD5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.610 t

DWT

Summer: 4.815 t

DWCC

Summer: 4.550 t

Winter: 4.400 t

NT

1.783 t

Number of 20ft containers

267

Length

100,62 m overall

95,39 m registered

Breadth

15,20 m registered

Draught

5,62 m

Forecastle

7,01 m

Poop

15,10 m

Depth

7,30 m moulded

Speed

12,3 knots

Built

2007

Keel laid

17.12.2004

Launch date

21.09.2007

Date of completion

20.12.2007

Builder

Rousse Industry A.D.
5, Matei Stoikov Street
7000 Ruse
Bulgaria

Yard number

875

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

5

Movable bulkhead

2

Continuous decks

1

Main engine

1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.400 kW / 3.260 hp at 750 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 185 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Year of manufacture: 2007

Manufacturer: A.C.V. Nederland B.V.
Kaartenmakerstraat 5
2984 CB Ridderkerk
The Netherlands

Electric installations

2x Plants each 400/380 V - 270 kVA

1x Plant 400 V - 550 kVA

1x Plant 400 V - 88 kVA

1x Plant 24 V - 140 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 180 Ah

2x Plants each 24 V - 180 Ah

Shaft generator

1x 550 kVA

Generators

2x Main diesel generatorsets each 270 kVA

Emergency generator

1x Diesel generatorset 88 kVA

Batteries

2x Batteries for automation each 180 Ah

1x Battery for start emergency engine 180 Ah

1x Battery for UPS radio 140 Ah

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar
1x Receiver 125 litres - 30,0 bar
1x Receiver 30 litres - 30,0 bar
1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster 220 kW, forward

Number of holds

2

Cargo hold capacity

Grain: 230.000 ft³

Bale: 229.000 ft³

Max. permitted loads

Tanktop: 12,5 t/m²

Hatches: 1,80 t/m²

Anchor equipment

3x Anchors weight each 2.460 kg

Chain length: 467,50 m

Crew size

12

Manager

Schiffahrtskontor Baltik GmbH & Co. KG
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Registered owner

MS "CELIA" Schiffahrtsgesellschaft mbH & Co. KG
Haus Auckland Hafenstr. 6b
26789 Leer
Federal Republic of Germany

Latest data adjustment

20 July 2015
