| Westerschelde 20 December 2015 |
 |
|
| Westerschelde 20/12/15 | |
|
Name |

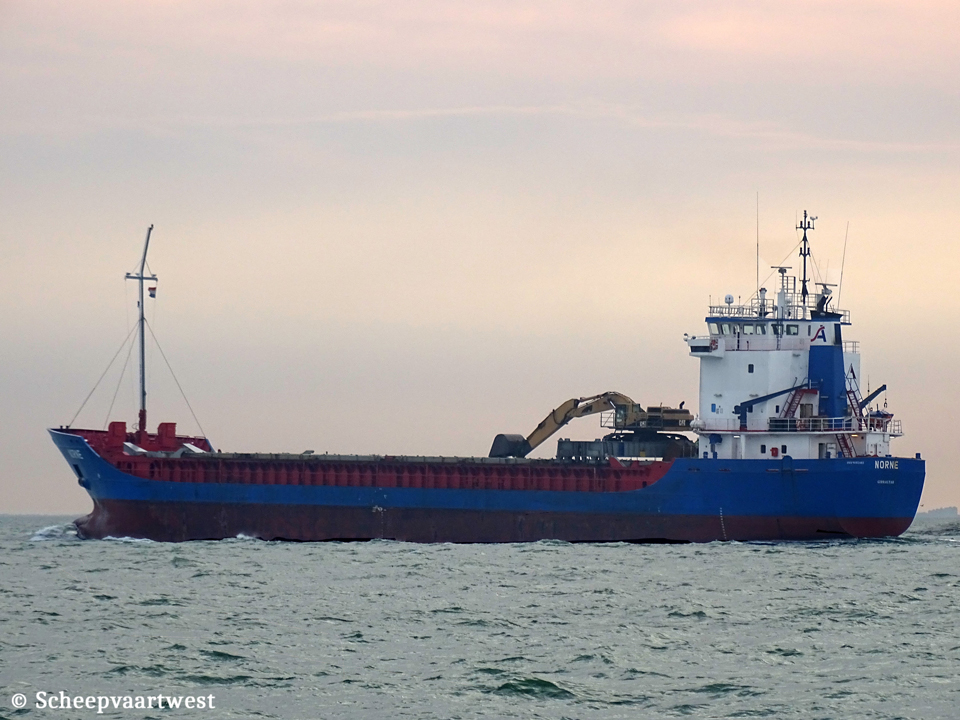

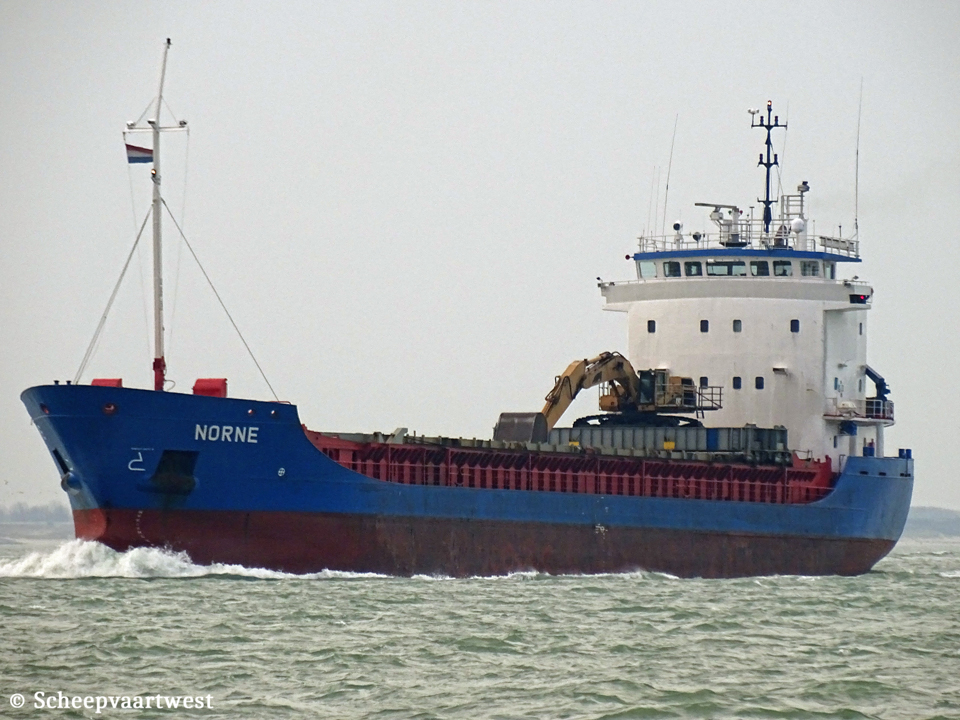

NORNE |
|
Type |
General cargo ship -Tanktop strengthened for coil loading - Equipped for carriage of containers - Strengthened for heavy cargo - Self discharge |
|
IMO-number |
9082403 |
|
Call sign |
LAYD7 |
|
Flag |
Norway |
|
Port of registry |
Haugesund |
|
Previous flags |
Gibraltar, Gibraltar - Call sign: ZDGO2 |
|
GT |
3.443 t |
|
DWT |
4.818 t |
|
NT |
1.829 t |
|
Number of 20ft containers |
262 |
|
Length |
93,42 m overall 84,90 m between perpendiculars |
|
Breadth |
15,06 m extreme |
|
Draught |
Summer: 6,27 m |
|
Depth |
8,00 m moulded |
|
Speed |
11,5 knots |
|
Built |
1997 |
|
Keel laid |
14/03/1995 |
|
Launch date |
24/02/1996 |
|
Date of completion |
31/05/1996 |
|
Builder |
Severnav Shipyard S.A. Turnu-Severin Romania |
|
Yard number |
126 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä Vasa 6R32E - 4 stroke single acting 6 cylinder 320 x 350 mm combustion engine 2.460 kW / 3.342 bhp at 750 rpm Builder: Wärtsilä Finland Oy, Turku - Finland |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x 612 DSIG diesel generatorset 1x 620 DSG diesel generatorset |
|
Bow thruster |
1x 400 kW |
|
Number of holds |
2 |
|
Cargo hold capacity |
Grain/bale: 6.520 m³ |
|
Number of hatches |
2 Hatch 1: 32,00 x 12,70 m Hatch 2: 27,00 x 12,70 m |
|
Tank capacities |
Ballast: 1.925 m³ |
|
Anchor equipment |
Length: 480,00 m Diameter: 40 mm |
|
Excavator |
1x Hitachi ZX670LCH-5 crane 4x Grab: each 8,0 m³ Outreach 15,40 m |
|
Crew size |
10 |
|
Commercial manager |
Arriva Shipowning AS Bjoavegen 389 5582 Ølensvåg Norway |
|
ISM manager |
Karmøy Skipsconsult Management AS Postvegen 25 4280 Skudeneshavn Norway |
|
Previous managers |
|
|
Registered owner |
Arriva Shipowning AS Bjoavegen 389 5582 Ølensvåg Norway |
|
Previous names & owners |
|
|
Latest data adjustment |
19 November 2023 |
