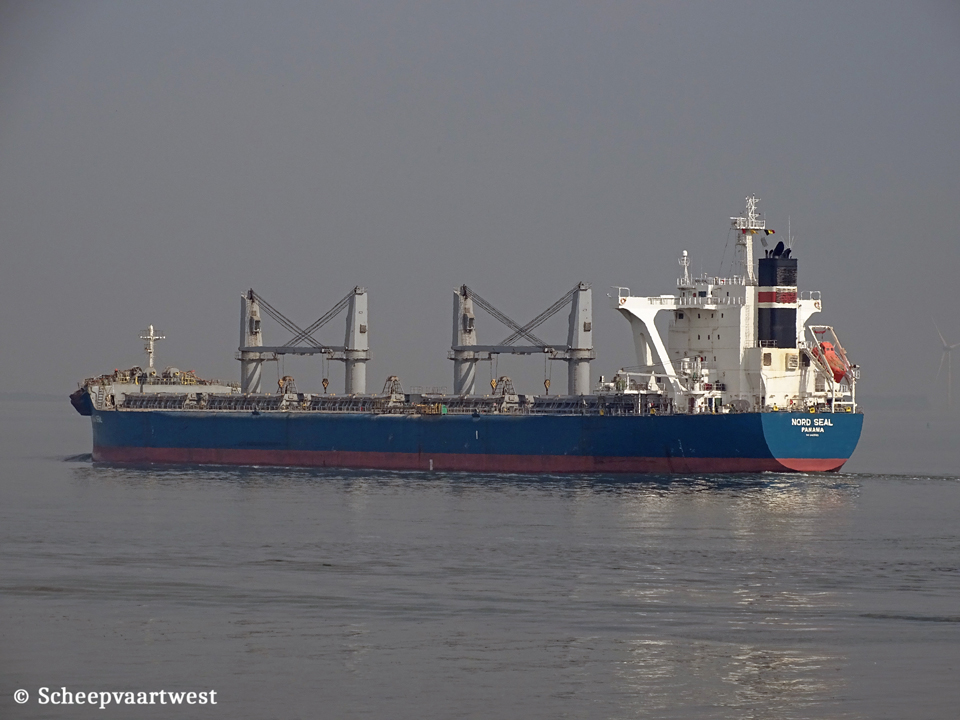

Nord Seal - IMO 9583029

Name

NORD SEAL

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9583029

Call sign

3EKV9

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

Republic of Singapore, Singapore City - Call sign: 9V3781

GT

32.540 t

DWT

57.631 t

NT

19.282 t

Length

190,00 m

Breadth

32,26 m mopulded

Draught

Summer: 12,81 m

Moulded L x B x D

186,20 x 32,26 x 18,00 m

Registered L x B x D

186,35 x 32,26 x 18,00 m

Freeboard

Summer: 5.228 mm

Depth

18,00 m moulded

Speed

Service: 14,5 knots

Max: 15,8 knots

Built

2016

Keel laid

10/12/2014

Launch date

27/11/2015

Date of completion

15/03/2016

Builder

Tsuneishi Shipbuilding Co., Ltd.

Fukuyama, Hiroshima

Japan

Yard number

1519

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

Mitsui/MAN-B&W 7S50ME-B9.3 - 2 stroke 7 cylinder 500 x 2.214 mm combustion engine Mcr 8.470 kW / 11.516 hp at 99,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 520 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler (Composite) - 0,70 MPa

Evaporation: 2,10 ton/h

Manufacturer: Miura Co., Ltd.

Generators

5x Generatorsets total 2.700 kVA

Number of holds

5

Cargo hold capacity

Bale : 69.573,60 m³

Grain: 72.087,00 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.139,60 m³

Fresh water: 380,00 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

25

ISM & commercial manager

World Marine Co. Ltd.

Kanpai Building 9F 22-27, Higashi Gotanda 5-Chome,

Shinagawa-ku

Tokyo 141-0022

Japan

Registered owner

Lua Line S.A./Okino Kaiun Co. Ltd.

Care of World Marine Co., Ltd.

9th Floor, Kanpai Building, 22-27, Higashigotanda 5-chome, Shinagawa-ku

Tokyo, 141-0022

Japan

Latest data adjustment

14 October 2023
