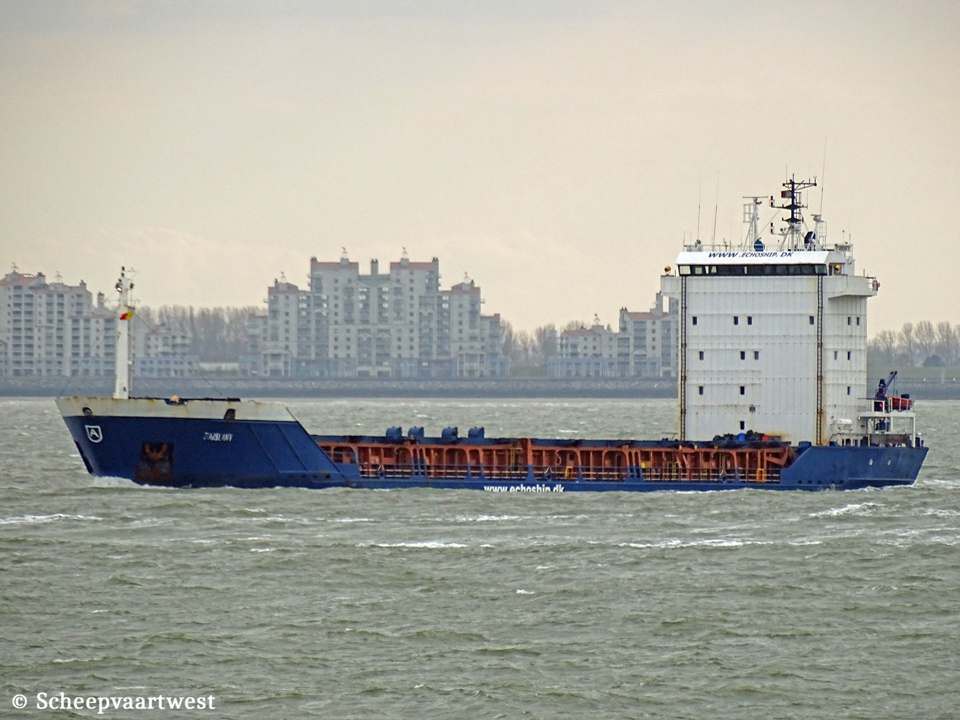

| Westerschelde 18 April 2016 |
 |
|
| Westerschelde 18/04/16 | |
|
Name |
F ARSLAN V |
|
Previous names |
11/1996 - 12/1996 Calderon 12/1996 - 03/1997 Rheintal |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9139115 |
|
Call sign |
V2MA5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GRT |
3.824 t |
|
DWT |
5.278 t |
|
NRT |
1.980 t |
|
Number of 20ft containers |
387 |
|
Container capacity 14t |
240 |
|
Reefer capacity |
50 |
|
Length |
100,53 m overall |
|
Breadth |
16,50 m moulded |
|
Draught |
Summer: 5,90 m |
|
Moulded L x B x D |
93,37 x 16,50 x 7,50 m |
|
Registered L x Bx D |
93,37 x 16,50 x 7,50 m |
|
Keel to mast end |
32,10 m |
|
Freeboard |
Summer: 1.213 mm |
|
Depth |
7,50 m moulded |
|
Speed |
Max: 15,7 knots Service: 11,1 knots |
|
Built |
1996 |
|
Keel laid |
15/06/1996 |
|
Launch date |
31/08/1996 |
|
Date of completion |
01/11/1996 |
|
Builder |
ENVC - Estaleiros Navais De Viana Do Castelo, S.A. Viana do Castelo Portugal |
|
Yard number |
198 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8M32 - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.520 kW / 4.786 hp at 600 rpm Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 344 mm |
|
Propellers |
1x Controllable pitch propeller - aft at 197 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 55,0 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 15,2 m² |
|
Electric installations |
1x Plant 400/220 V - 300 kVA 1x Plant 400/220 V - 300 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 300 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
2x Main diesel generatorsets each 300 kVA |
|
Emergency generator |
1x Diesel generatorset 300 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 100 litres - 15,0 bar 1x Receiver 20 litres - 10,0 bar 1x Receiver 100 litres - 7,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 350 kW, forward |
|
Number of holds |
2 Hold 1: 25,60 x 13,20 m Hold 2: 32,00 x 13,20 m |
|
Cargo hold capacity |
Grain: 6.634,2 m³ |
|
Tiber capacity |
5.800 m |
|
Number of hatches |
2 |
|
Tank capacities |
Fuel oil: 391 m³ Fresh water: 50,68 m³ Water ballast: 1.705 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Crew size |
15 |
|
ISM manager |
Pasa International Technical Daire 19, Kat 4, Nail Bilen Caddesi 1, Incili Pinar Mah, Sehitkamil 27500 Gaziantep Turkey |
|
Previous managers |
Burak Schiffahrts GmbH & Co KG Eckernfoerder Landstrasse 65, Suedstadt 24941 Flensburg Germany |
|
Registered owner |
Firat Shipping Co., Ltd. Care of Tunaryan Schifffahrts GmbH & Co KG Eckernfoerder Landstrasse 65, Suedstadt 24941 Flensburg Germany |
|
Renamed |
07/2021 Helen H Republic of Panama, Panama City - Call sign: 3E3933 Owner: Helen Shipping Co. Manager: Hydar Shipping Co., Damietta - Egypt |
|
Latest data adjustment |
21 July 2023 |
