| Westerschelde 28 January 2017 |
|
Name |

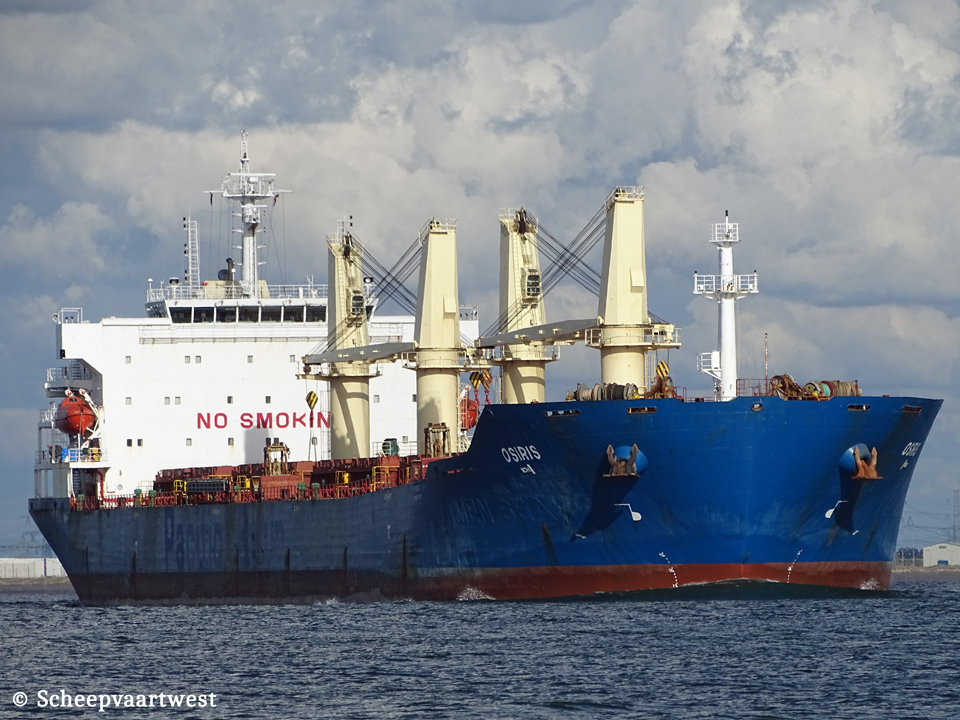

OSIRIS |
|
Previous names |
09/2004 - 02/2008 Xiamen Sea 02/2008 - 01/2017 Pacific Sea |
|
Type |
Geared / Grab fitted bulk carrier - Strengthened for heavy cargo loading Handymax |
|
IMO-number |
9293674 |
|
Call sign |
9HA4491 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2004 - 2017 Hong Kong - Call sign: VRAE6 |
|
GRT |
31.144 t |
|
DWT |
53.589 t |
|
NRT |
18.384 t |
|
Displacement |
63.719 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,49 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,20 m |
|
Registered L x B x D |
183,04 x 32,26 x 17,20 m |
|
Freeboard |
Summer: 4.728 mm |
|
Depth |
17,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Keel laid |
30/10/2003 |
|
Date of completion |
15/09/2004 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. China |
|
Yard number |
XSI401A |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hudong/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW at 127,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 510 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 1,0 MPa Evaporation: 2,50 t/h Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
4x Generatorsets total 2/374 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 63.628,83 m³ Grain: 65.748,15 m³ |
|
Tank capacities |
Fuel oil: 2.291,80 m³ Fresh water: 400,31 m³ |
|
Cargo gear |
4x Deck cranes |
|
Crew size |
28 |
|
Manager |
Vulcanus Technical Maritime Enterprises SA Boumpoulinas 47 Pireas 185 35 Greece |
|
Registered owner |
Aida Navigation Ltd. c/o Vulcanus Technical Maritim 47-49, Boumpoulinas Street 185 35 Piraeus Greece |
|
Latest data adjustment |
13 April 2023 |
