| Vlissingen 06 March 2020 |
 |
 |
|
| Vlissingen 06/03/20 | Vlissingen 06/03/20 | |
|
Name |

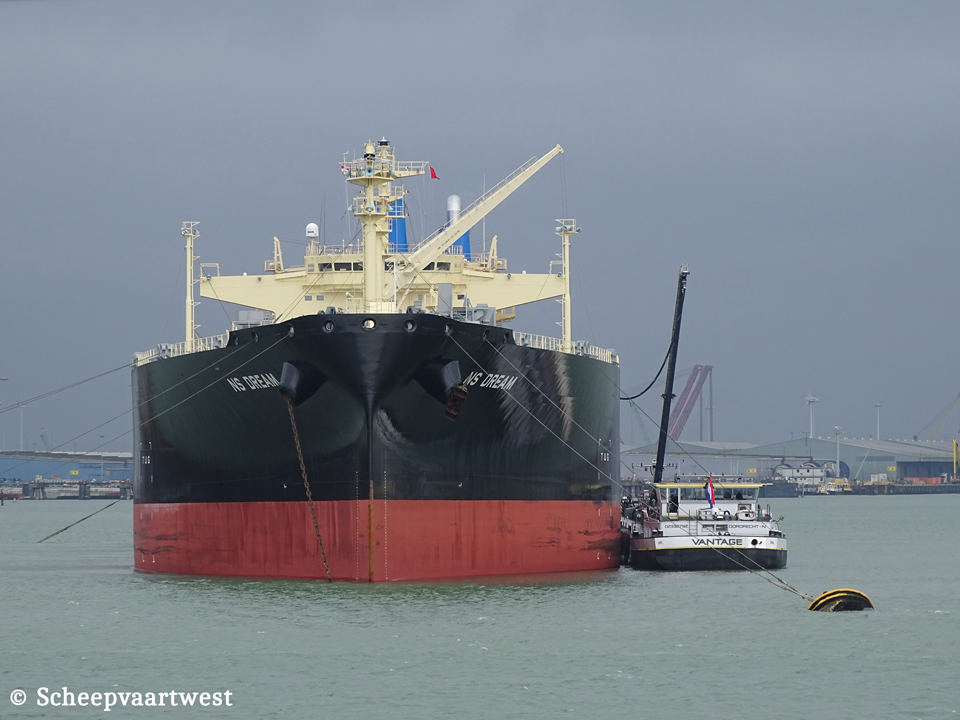

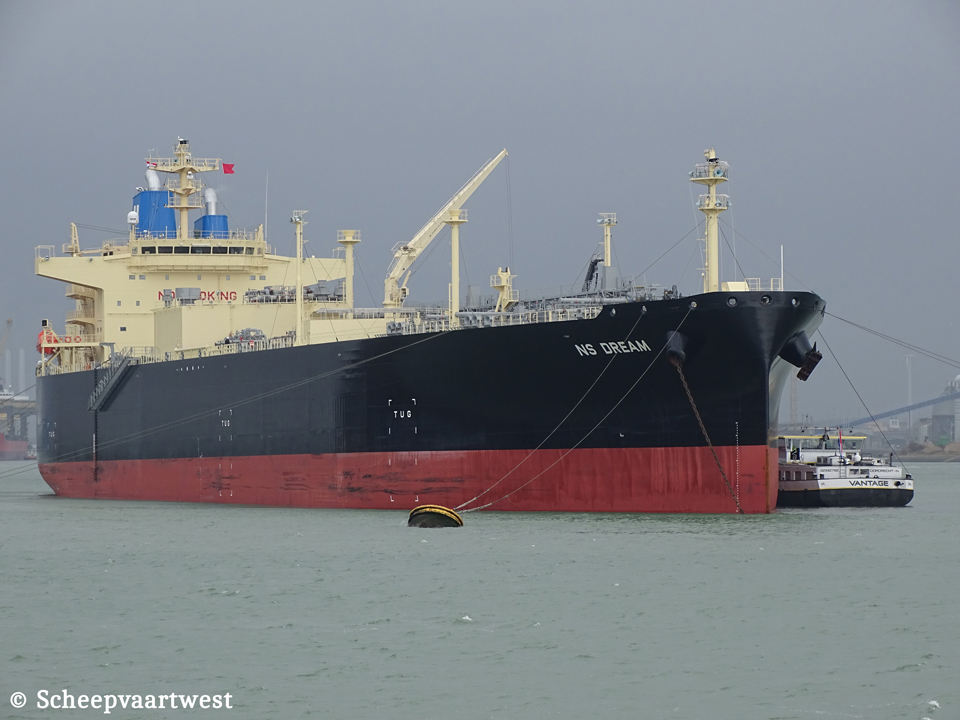

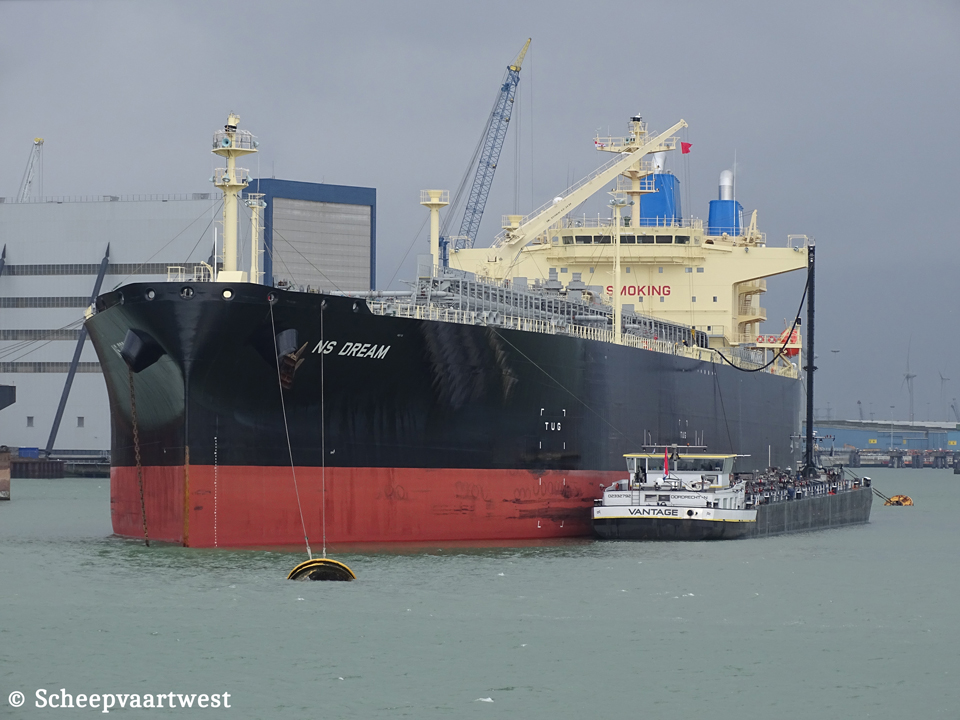

NS DREAM |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9800506 |
|
Call sign |
3FSF2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
47.236 t |
|
DWT |
Summer: 54.052 t |
|
NRT |
14.171 t |
|
Length |
229,90 m overall |
|
Breadth |
37,20 m moulded |
|
Draught |
Summer: 11,23 m |
|
Moulded L x B x D |
226,00 x 37,20 x 21,00 m |
|
Registered L x B x D |
226,00 x 37,20 x 21,00 m |
|
Keel to mast end |
48,33 m |
|
Freeboard |
Summer: 9.818 mm |
|
Depth |
21,00 m moulded |
|
Speed |
Max: 16,8 knots |
|
Built |
2019 |
|
Keel laid |
28/12/2015 |
|
Launch date |
13/02/2019 |
|
Date of completion |
28/06/2019 |
|
Builder |
Kawasaki Heavy Industries, Ltd., Ship & Offshore Structure Company Sakaide Shipyard Sakaide Japan |
|
Yard number |
1739 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN-B&W/Kawasaki 7S60ME-C8.2 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine Mcr 13.100 kW - 17.811 hp at 89,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. & Offshore Structure Company Kobe Shipyard - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 4,37 t/h Manufacturer: Alfa Laval Qingdao Ltd |
|
Generators |
4x Generators total 4.680 kVA |
|
Cargo tank capacity |
Liquid: 82.388,13 m³ |
|
Number of pumps |
8x Cargo pumps each 600 m³/h |
|
Maximum pressure |
0,025 MPa |
|
Minimum temperature |
-46°C |
|
Tank capacities |
Fuel oil: 3.018 m³ Fresh water: 400 m³ |
|
Crew size |
29 |
|
Commercial manager |
Mayflower Line SA Panama City Republic of Panama |
|
ISM manager |
Wilhelmsen Ship Management Sdn. Bhd. 19th Floor, 1 Sentral, Jalan Rakyat, Kuala Lumpur Sentral 50470 Kuala Lumpur Malaysia |
|
Registered owner |
Mayflower Line SA Panama City Republic of Panama |
|
Latest data adjustment |
16 January 2023 |
