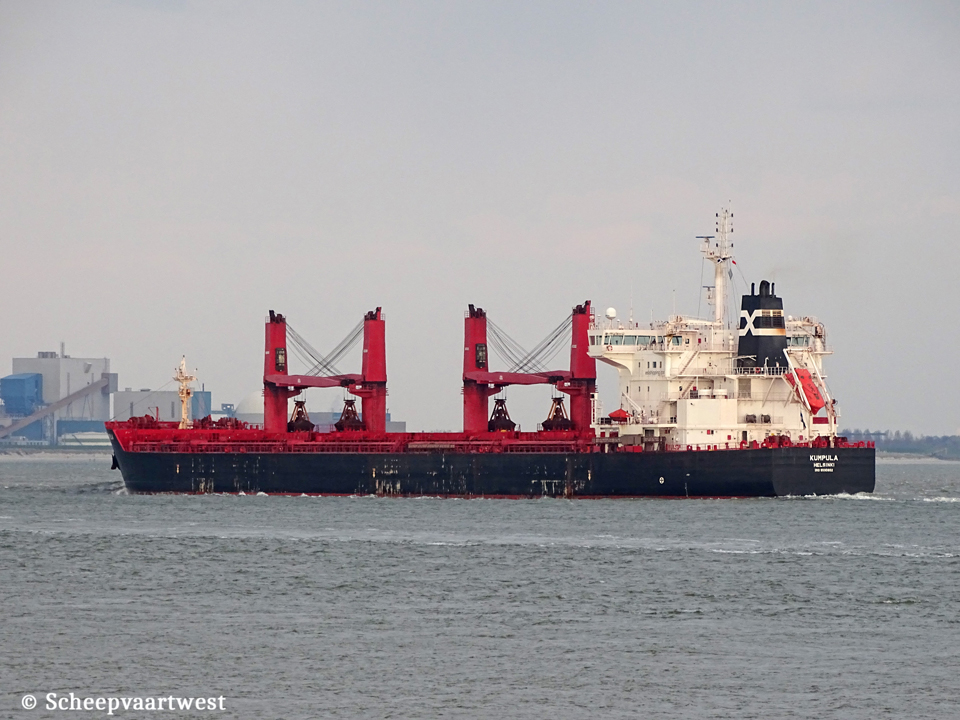

Kumpula - IMO 9590802

Name

KUMPULA

Type

Bulk carrier

IMO-number

9590802

Call sign

OJPC

Flag

Finland

Port of registry

Helsinki

Previous flags

56.348 t

GT

33.958 t

DWT

1.258 t

Length

197,08 m overall

189,04 m between perpendiculars

Breadth

32,26 m moulded

32,60 m extreme

Draught

Summer: 11,10 m

Air draft

52,50 m from keel

Depth

18,50 m

Speed

12,5 knots

Built

2012

Keel laid

08/11/2011

Launch date

27/02/2012

Date of completion

29/05/2012

Builder

Hyundai-Vinashin Shipyard Co.. Ltd.

Vietnam

Yard number

S043

Hull material

Steel

Main engine

1x MAN 7S50MC-C - 7 cylinder 500 x 2.000 m combustion engine Mcr 11.620 at 127,0 rpm

Propellers

1x Controllable pitch propeller

Builder: Rolls-Royce AB, Kristinehamn

Boilers

1x Auxiliary boiler. oil/gas fired - Aalborg CHB-2000

1x Auxiliary boiler. composite - Saacke CMB-VS-1.3-1.2/7

Generators

3x Hyundai/Himsen 5H21/32 main diesel generatorsets each 960 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Thruster

1x Hyundai HSC-16K - 800 kW, forward

1x Hyundai HSC-16K - 800 kW, stern

Number of holds

5x Double skin cargo holds

Hold 1: 29,40 x 29,66 x 18,90 m

Hold 2: 30,24 x 29,66 x 18,90 m

Hold 3: 30,24 x 29,66 x 18,90 m

Hold 4: 30,24 x 29,66 x 18,90 m

Hold 5: 30,24 x 29,66 x 18,90 m

Cargo hold capacity

Hold 1: 12.032 m³ / 424.895 ft³

Hold 2: 14.737 m³ / 520.435 ft³

Hold 3: 14.209 m³ / 501.793 ft³

Hold 4: 14.758 m³ / 521.159 ft³

Hold 5: 14.319 m³ / 505.681 ft³

Total: 70.055 m³ / 2.476.963 ft³

Hatch type

Electro hydraulic hatches folding type

Max permitted loads

Tanktop:

Hold 1-3-5: 23,5 t/m²

Hlod 2 - 4: 18,7 t/m²

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Electro-hydraulic cranes - SWL 27.5 t

SWL 25,0 t with 12,5 m³ grab

Manager

ESL Shipping Oy

Lintulahdenkuja 10

FI-00500 Helsinki

Finland

Registered owner

ESL Shipping Oy

Lintulahdenkuja 10

FI-00500 Helsinki

Finland

Latest data adjustment

17 August 2022
