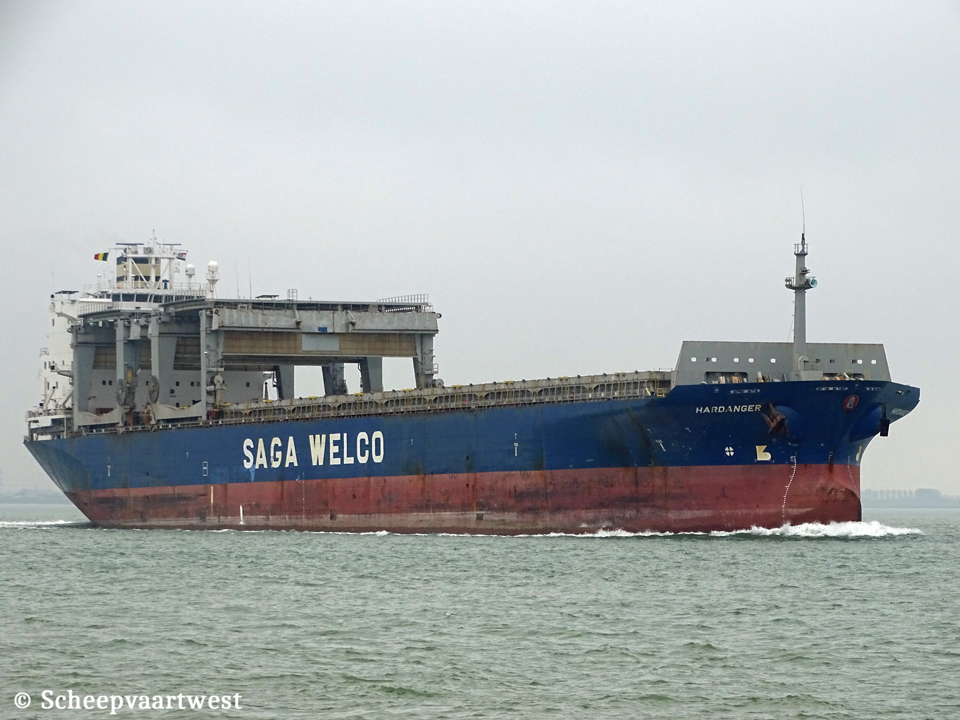

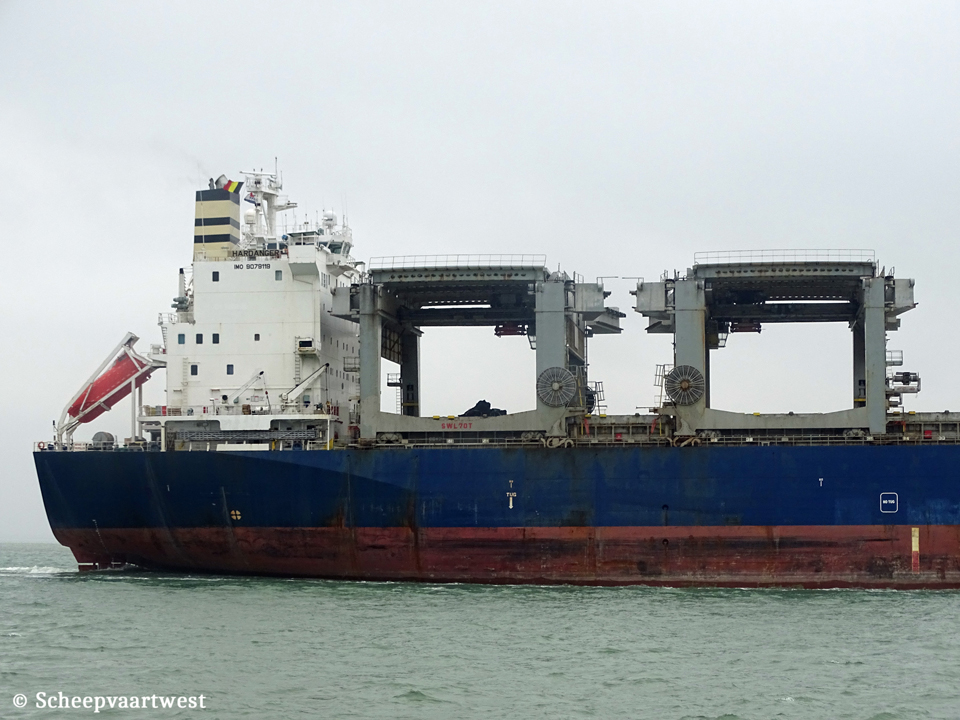

| Westerschelde 02 March 2019 |
 |
| Westerschelde 02/03/19 |
|
Name |
HARDANGER |
|
Previous names |
1995 - 2009 Star Hardanger |
|
Type |
General cargo / Container ship |
|
IMO-number |
9079119 |
|
Call sign |
V7A5145 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
1995 - 2009 Norway, Bergen - Call sign: LAXD4 2009 - 2021 Republic of Singapore, Singapore City - Call sign: 9VAW6 |
|
GT |
37.150 t |
|
DWT |
50.198 t |
|
NT |
14.886 t |
|
Number of 20ft containers |
2.148 |
|
Length |
213,40 m overall 203,50 m between perpendiculars |
|
Breadth |
31,03 m extreme |
|
Draught |
Summer: 12,31 m |
|
Keel to mast end |
46,00 m |
|
Depth |
19,00 m |
|
Speed |
Max: 16,0 knots |
|
Built |
1995 |
|
Keel laid |
29/11/1994 |
|
Launch date |
08/03/1995 |
|
Date of completion |
29/05/1995 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo South Korea |
|
Yard number |
1085 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 8 |
|
Main engine |
1x MAN-B&W 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 10.354 kW / 14.077 hp at 105,0 rpm Builder: Korea Heavy Industries & Construction Co. Ltd, Changwon - South Korea |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated AQ2 - 7,9 bar 1x Auxiliary boiler, oil/gas fired AQ12 - 7,09 bar Manufacturer: Aalborg |
|
Generators |
1x MAN-B&W 6L23/30 main diesel generatorset 720 kW 2x MAN-B&W 7L28/32H main diesel generatorsets each 1.300 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset |
|
Total electric power |
3.320 kW - 450-220 Volt 60 Herz |
|
Bow thruster |
1x Ulstein 800 TV - 1.470 kW, forward 1x Ulstein 150 TV-B - 735 kW, aft |
|
Number of holds |
12 |
|
Cargo hold capacity |
Hold 1: 4.033 m³ / 142.484 ft³ Hold 2: 5.478 m³ / 193.271 ft³ Hold 3: 6.335 m³ / 223.729 ft³ Hold 4: 6.335 m³ / 223.729 ft³ Hold 5: 6.335 m³ / 223.729 ft³ Hold 6: 6.335 m³ / 223.729 ft³ Hold 7: 6.335 m³ / 223.729 ft³ Hold 8: 6.335 m³ / 223.729 ft³ Hold 9: 6.335 m³ / 223.729 ft³ Hold 10: 5.779 m³ / 204.115 ft³ Hold 11: 4.938 m³ / 174.401 ft³ Hold 12: 2.908 m³ / 102.705 ft³ Total: 67.492 m³ / 2.383.468 ft³ |
|
Tank capacities |
Ballast: 20.898,3 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
2x Gantry crane - SWL 40,0 t each |
|
Commercial manager |
Saga Welco AS Tollbodgaten 22 3111 Tonsberg Norway |
|
ISM Manager |
Zeaborn Ship Management (Singapore) Pte. 11-03, HarbourFront Centre, 1, Maritime Square Singapore 099253 Republic of Singapore |
|
Latest data adjustment |
03 April 2022 |
