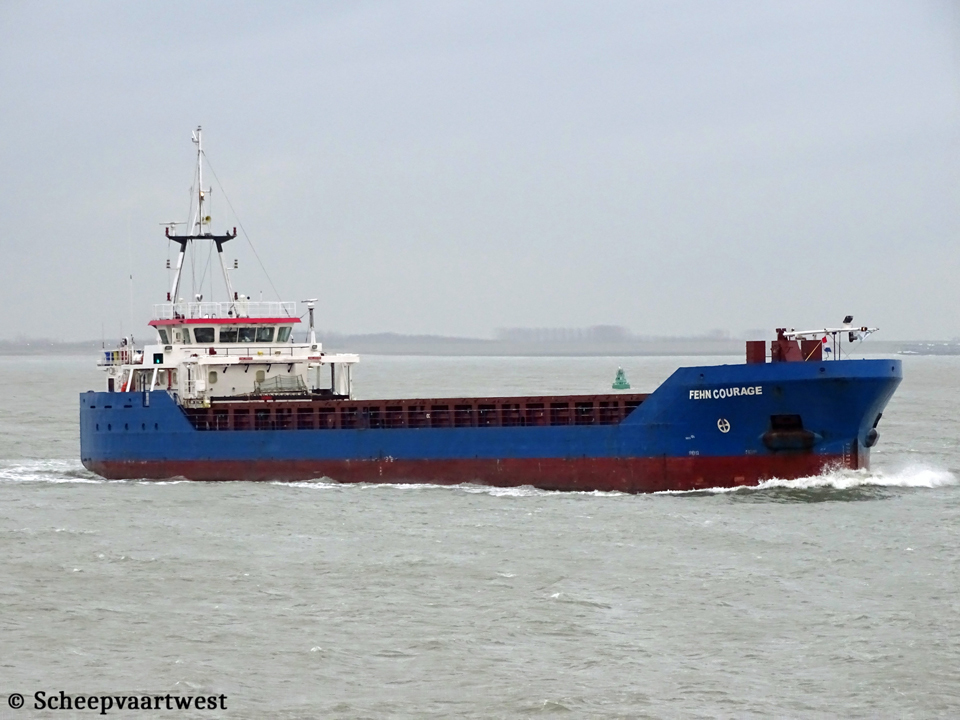

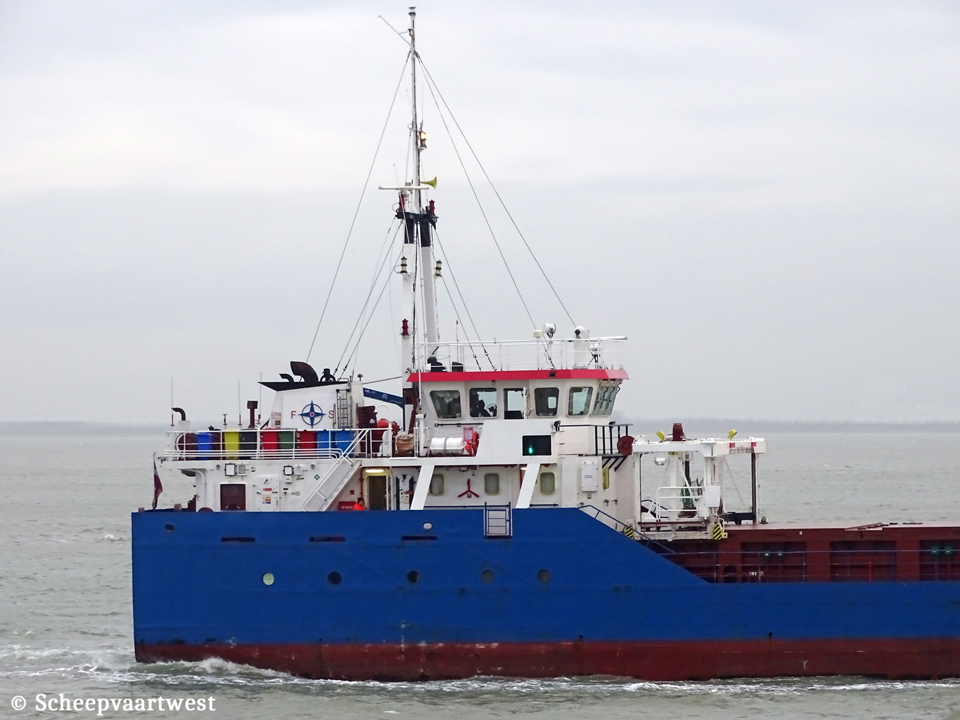

| Westerschelde 12 January 2019 |
 |
| Westerschelde 12/01/19 |
|
Name |
FEHN COURAGE |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9556818 |
|
Call sign |
YLLL |
|
Flag |
Latvia |
|
Port of registry |
Riga |
|
Previous flags |
2010 - 2015 Portugal, Madeira - Call sign: CQNN |
|
GT |
1.905 t |
|
DWT |
Summer: 2.610 t |
|
NT |
878 t |
|
Length |
87,91 m overall 84,98 m between perpendiculars |
|
Breadth |
11,41 m extreme |
|
Draught |
Summer: 4,10 m |
|
Air draft |
abt. 21,50 m with mast up in ballast abt. 11,50 m with mast down in ballast |
|
Depth |
5,80 m |
|
Speed |
10,6 knots |
|
Built |
2010 |
|
Keel laid |
05/12/2008 |
|
Launch date |
20/10/2009 |
|
Date of completion |
20/12/2010 |
|
Builder |
Wuxue Kaiyangxing Shipbuilding Co., Ltd. Wuhan China |
|
Yard number |
KYX07-801 |
|
Hull material |
Stel |
|
Hull type |
Single hull |
|
Main engine |
1x ABC 6M DZC - 6 cylinder combustion engine 1.325 kW at 1.000 rpm Manufacturer: Anglo Belgian Corporation NV, Gent - Belgium |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x MAN D2866 E main diesel generatorsets each 160 kW |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 90 kW |
|
Number of holds |
1 61,60 x 9,00 x 6,16 m |
|
Cargo hold capacity |
Grain: 120.600 ft³ |
|
Hold ventilation |
6x Rir circulations per hour (empty hold) |
|
Number of hatches |
1 61,60 x 9,00 m |
|
Hatch cover type |
Pontoon |
|
Max permitted loads |
Main deck: 1,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.616,8 m³ MGO: 131,9 m³ Fresh water: 43,0 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 30 mm |
|
Manager |
Fehn Ship Management GmbH & Co. KG Hafenstraße 15 26789 Leer Germany |
|
Registered owner |
Ems Chartering GmbH & Co. KG Hafenstraße 15 26789 Leer Germany |
|
Latest data adjustment |
07 February 2022 |
