| Westerschelde30 March 2019 |
|
Name |

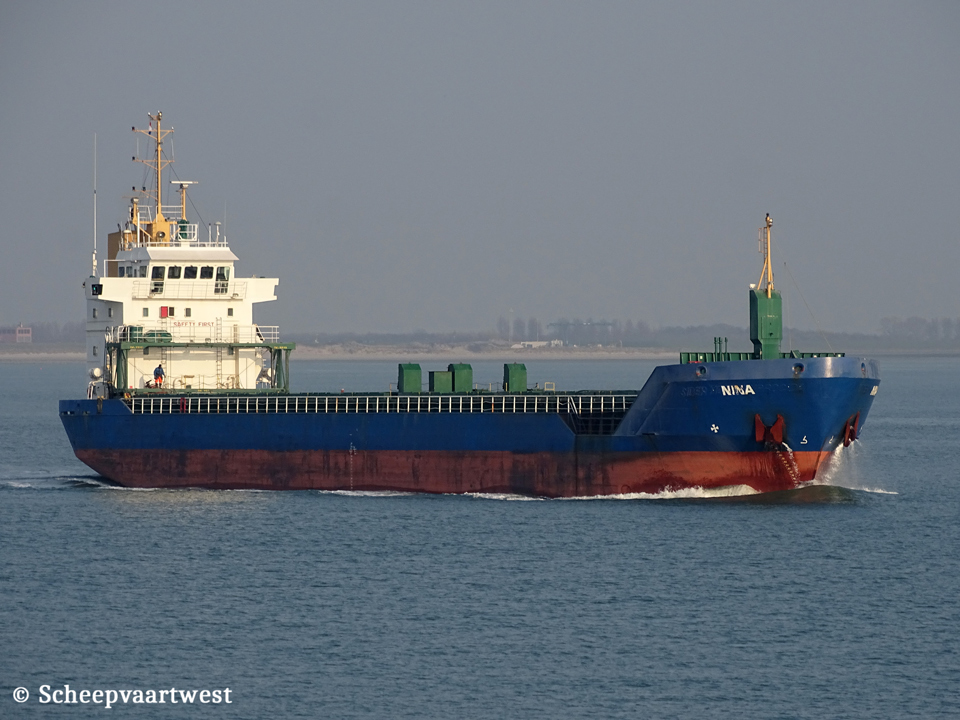

NINA |
|
Previous names |
2003 - 2003 Ile Dr Yeu 2003 - 2009 Sider Montediprocida 2009 - 2017 Monte |
|
Type |
Multi-purpose dry carrier - Strengthened for heavy cargo - Equipped for the carriage of container |
|
IMO-number |
9277278 |
|
Call sign |
5BTL4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
Germany - Call sign: DCIJ2 Antigua & Barbuda, St. John’s - Call sign: V2FS2 |
|
GT |
3.289 t |
|
DWT |
Summer: 5.754 t |
|
NT |
1.879 t |
|
Number of 20ft containers |
In hold: 135 On hatch 92 Total: 227 |
|
Length |
104,55 m overall 99,78 m between perpendiculars |
|
Breadth |
13,60 m moulded |
|
Draught |
Summer: 6,18 m |
|
Air draft |
23,00 m |
|
Depth |
7,20 m moulded |
|
Speed |
13,0 knots |
|
Built |
2003 |
|
Keel laid |
30/06/1998 |
|
Launch date |
03/05/2003 |
|
Date of completion |
28/05/2003 |
|
Builder |
Bodewes Scheepswerf Volharding Foxhol B.V. The Netherlands |
|
Yard number |
521 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
2x Moveable grain bulkhead with 7 stowage positions |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.447 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 175,0 rpm |
|
Shaft generator |
1x 264 kW |
|
Generators |
2x Scania D9 95 main diesel generatorsets each 210 kW - 50 Hz |
|
Emergency & harbour gen. |
1x Sisu diesel generatorset 110 kVA - 50 Hz |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x 225 kW |
|
Number of holds |
2 Hold 1: 37,74 x 11,00 x 8,35 m Hold 2: 37,74 x 11,00 x 8,35 m |
|
Cargo hold capacity |
Hold 1: 3.340 m³ Hold 2: 3.454 m³ Total: 6.794 m³ |
|
Hold ventilation |
6 times elec. driven |
|
Number of hatches |
2 |
|
Hatches type |
Steel pontoon hatches with 1 gantry crane |
|
Max permitted load |
Tanktop: 15,0 t/m² Hatch covers: 1,60 t/m² |
|
Tank capacities |
Ballast: 2.426,74 m³ MGO: 246,22 m³ Potable water: 53,56 m³ |
|
Anchor equipment |
Length: 567,50 m Diameter: 36 mm |
|
Accommodation |
For captain and crew of a total 10 persons with heating, ventilation and air-conditioning |
|
Commercial manager |
Lohmann Bereederungen GmbH & Co. KG Boschstrasse 15 49733 Haren (Ems) Germany |
|
ISM manager |
Hermann Lohmann Schiffahrtsverwaltung GmbH Fleetwinkel 6 49733 Haren (Ems) Germany |
|
Registered owner |
Hermann Lohmann Schiffahrts GmbH & Co. KG MS "NINA" Care of Hermann Lohmann Bereederungen GmbH & Co KG Boschstrasse 15 49733 Haren (Ems) Germany |
|
Latest data adjustment |
30 November 2021 |
