Malaga, Spain 14 December 2020 |
|
Name |

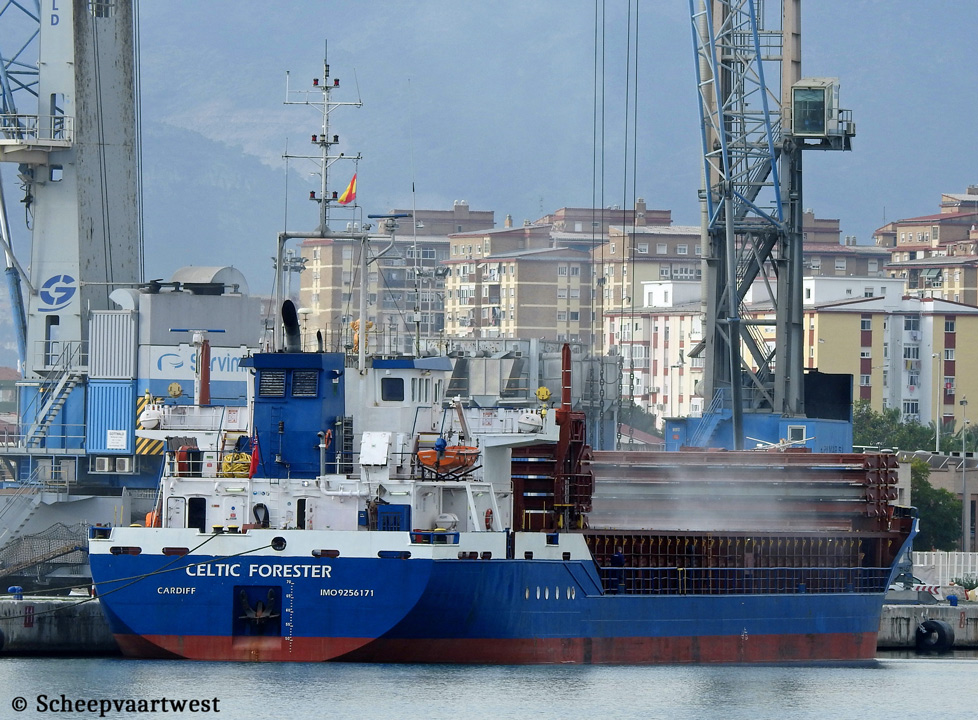

CELTIC FORESTER |
|
Previous names |
2003 - 2012 Annerdiep 2012 - 2019 Modulus 5 |
|
Type |
General cargo ship - Dangerous goods fitted - Heavy cargo fitted |
|
IMO-number |
9256171 |
|
Call sign |
MEWG2 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
2003 - 2012 Cyprus, Limassol - Cal sign: P3QA9 2012- 2019 Russia, Taganrog - Call sign: UBBJ3 |
|
GT |
2.983 t |
|
DWT |
4.323 t |
|
DWCC |
Summer: 4.100 t Winter: 4.000 t |
|
NT |
1.646 t |
|
Displacement |
5.700 t |
|
Number of 20ft containers |
126 |
|
Length |
89,98 m overall 84,98 m between perpendiculars |
|
Breadth |
15,30 m extreme 15,20 m moulded |
|
Draft |
Summer: 5,10 m Winter: 4,99 m 3,40 m in ballast |
|
Air draft |
22,80 m masts up 13,60 m masts down |
|
Depth |
6,60 m |
|
Speed |
12,0knots |
|
Built |
2003 |
|
Keel laid |
27/11/2000 |
|
Date of completion |
12/09/2003 |
|
Builder casco |
Severnav Drobeta Turnu Severin Romania |
|
Builder completion |
Royal Bodewes Shipyards B.V. Hoogezand The Netherlands |
|
Yard number |
613 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
5 |
|
Movable bulkheads |
2x Bulkheads (2 panels each) or 4x bulkheads (one panel each) erection possible in 4 different positions |
|
Main engine |
1x MaK 6M25 - 6 cylinder combustion engine 1.800 kW / 2.448 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Lips controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Hot Water) |
|
Shaft generator |
1x 350 kW - 400 Volt, 50 Hz at 1.500 rpm |
|
Generators |
1x Scania D9 95M main diesel generatorset 144 kVA - 400 Volt, 50 Hz at 1.500 rpm Builder: Scania Industrial & Marine Engines |
|
Emergency generator |
1x Scania D9 95M diesel generatorset 144 kVA - 400 Volt, 50 Hz at 1.500 rpm Builder: Scania Industrial & Marine Engines |
|
Bow thruster |
1x Vets - 300 kW |
|
Number of holds |
1 61,50 x 12,65 x 7,99 m Hold narrows forward over last 8,10 metres to 8,00 m |
|
Cargo hold capacity |
Grain: 5.943 m³ / 213.000 ft³ |
|
Hold ventilation |
6x Air changes per hour |
|
Number of hatches |
8x Pontoons moved with gantry crane 61,50 x 12,60 m |
|
Hatch type |
Roden Staal closed pontoon system |
|
Max permitted loads |
Hatch covers: 1,6 t/m² Tantop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 209 m³ Gas oil: 39 m³ Freshwater: 60 m³ Water ballast: 1.996,2 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 34 mm |
|
Cargo gear |
Gearless |
|
Crew size |
9 |
|
Manager |
Charles M Willie & Co (Shipping) Ltd. 6 Ocean Way Cardiff CF24 5HG United Kingdom |
|
Registered owner |
Charles M Willie & Co (Shipping) Ltd. |
|
Latest data adjustment |
14 December 2020 |
