Malaga - Spain 18 March 2018 |
|
Name |

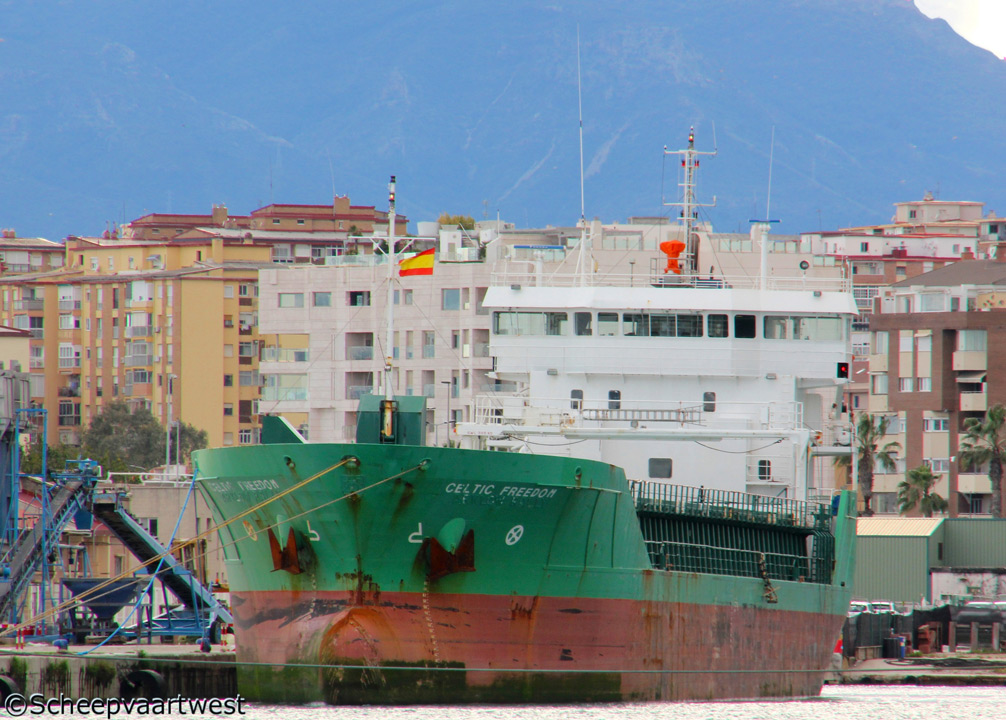

CELTIC FREEDOM |
|
Previous names |
2002 - 10/2017 Arklow Rally |
|
Type |
General cargo ship - heavycargo - Bottom strengthened for loading & discharging aground |
|
IMO-number |
9250414 |
|
Call sign |
MCEF7 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
2002 - 2017 The Netherlands, Rotterdam - Call sign: PBEG |
|
GT |
2.999 t |
|
DWT |
5.065 t |
|
DWCC |
Summer: 4.820 t Winter: 4.700 t |
|
NT |
1.671 t |
|
Displacement |
6.500 t |
|
Number of 20ft containers |
138 |
|
Length |
89,99 m overall 84,85 m between perpendiculars |
|
Breadth |
14,45 m moulded |
|
Draught |
6,31 m 3,00 m in ballast |
|
Air draft |
Min 19,10 m at draft of 3,90 m |
|
Freeboard |
1.054 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2002 |
|
Launch date |
02/03/2002 |
|
Date of completion |
12/04/2002 |
|
Builder |
Veka Shipyard Lemmer B.V. |
|
Yard number |
699 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x In 9 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6M25 - 4 stroke single acting 6 cylinder 225 x 400 mm combustion engine 1.800 kW / 2.446 hp at 750 mm Built: 2001 Builder: MaK / Caterpillar Motoren GmbH, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 435 kVA |
|
Generators |
1x Main diesel generatorsets each 175 kVA - 140 kW - 204 hp at 1.500 rpm |
|
Bow thruster |
260 kW |
|
Number of holds |
1x Narrows fore and aft 48,00 x 11,50 x 8,35 m full box hold |
|
Total capacity of holds |
5.922 m³ / 214.119 ft³ 211.717 ft³ with bulkheads midships |
|
Number of hatches |
1 62,40 x 11,50 m clear opening |
|
Hatch type |
Roden staal pontoon type |
|
Max permitted loads |
Hatch covers: 1,6 t/m² Tank Top: 15,0 t/m² |
|
Tank capacities |
Fuel IFO380: 190 m³ Gas oil: 190 m³ Fresh water: 40,8 m³ Lub oil: 13 m³ Ballast: 1.938 m³ |
|
Manager |
Charles M. Willie & Co. (Shipping)Wales Ltd. |
|
Previous managers |
04/2002 - 10/2017 Arklow Shipping Nederland B.V., Rotterdam - The Netherlands |
|
Owner |
Charles M. Willie & Co. (Shipping)Wales Ltd. |
|
Previous owners |
04/2002 - 07/2015 C.V. Scheepvaartonderneming Arklow 1, Rotterdam - The Netherlands 07/2015 - 20/2017 S&P Bulk XI AS, Rotterdam - The Netherlands |
|
Latest data adjustment |
07 April 2018 |
