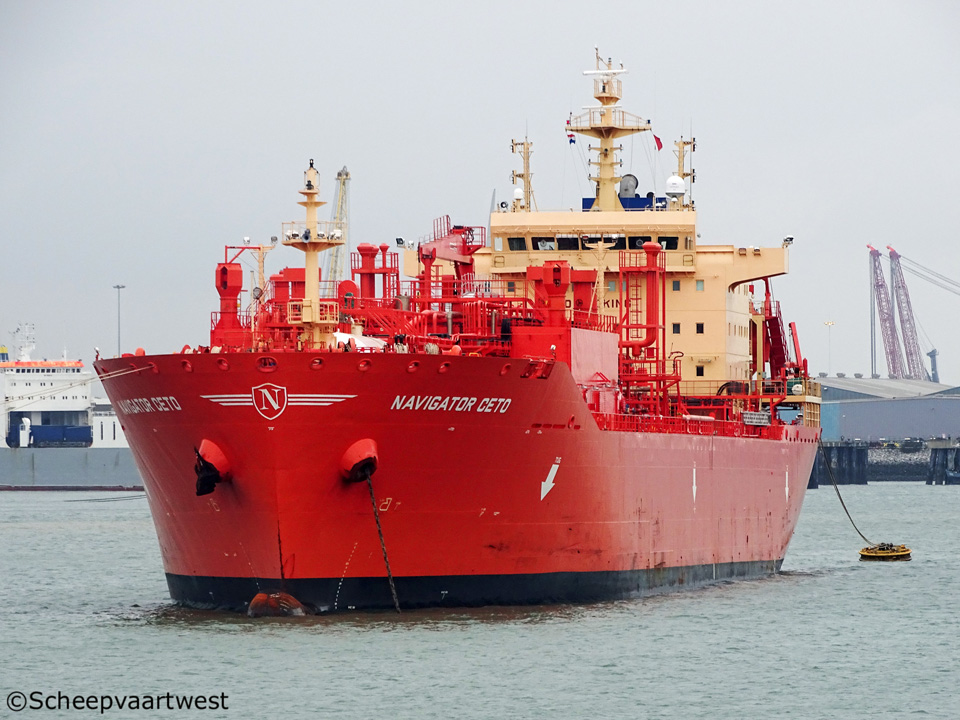

Westerschelde 05 July 2018 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 25/10/17 | Westerschelde 25/10/17 | WS 25/10/17 | Westerschelde 03/07/16 | Vlissingen 25/10/17 | Doel, Belgium 29/07/19 |
|
Name |
NAVIGATOR CETO |
|
Type |
Liquefied gas carrier - LPG |
|
Products |
Ammonia - Butadiene - Butane - Propane - Propylene - V.C.M. |
|
IMO-number |
9704532 |
|
Call sign |
D5HE5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t |
|
DWT |
Summer: 16.601,5 t |
|
NT |
5.163 t |
|
Length |
158,85 m overall 152,83 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draft |
9,40 m 6,75 m ballast |
|
Depth |
16,70 m |
|
Speed |
16,0 knots |
|
Built |
2016 |
|
Keel laid |
18/05/2015 |
|
Launch date |
19/09/2015 |
|
Date of completion |
15/01/2016 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. China |
|
Yard number |
H2556 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x Hudong MAN B&W 6S50ME-C8.2 - 2 stroke 6 cylinder combustion engine 7.170 kW at 114 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x MAN 5L21/31 main diesel generatorsets each 950 kW |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of tanks |
4x Bi-lobe tanks |
|
Tank capacity |
22.000 m³ |
|
Deck tank capacity |
195 m³ |
|
Cargo pumps |
8x Svanehoy electric powered motor deepwell pumps |
|
Tank capacities |
Ballast: 7.463,3 m³ HFO: 1.278 m³ MGO: 437 m³ Fresh water: 217 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Manager |
Northern Marine Management Ltd. |
|
Operator |
Navigator Gas The Verde 10 Bressenden Place London, SW1E5DH United Kingdom |
|
Registered owner |
Navigator Ceto LLC |
|
Latest data adjustment |
21 January 2020 |
