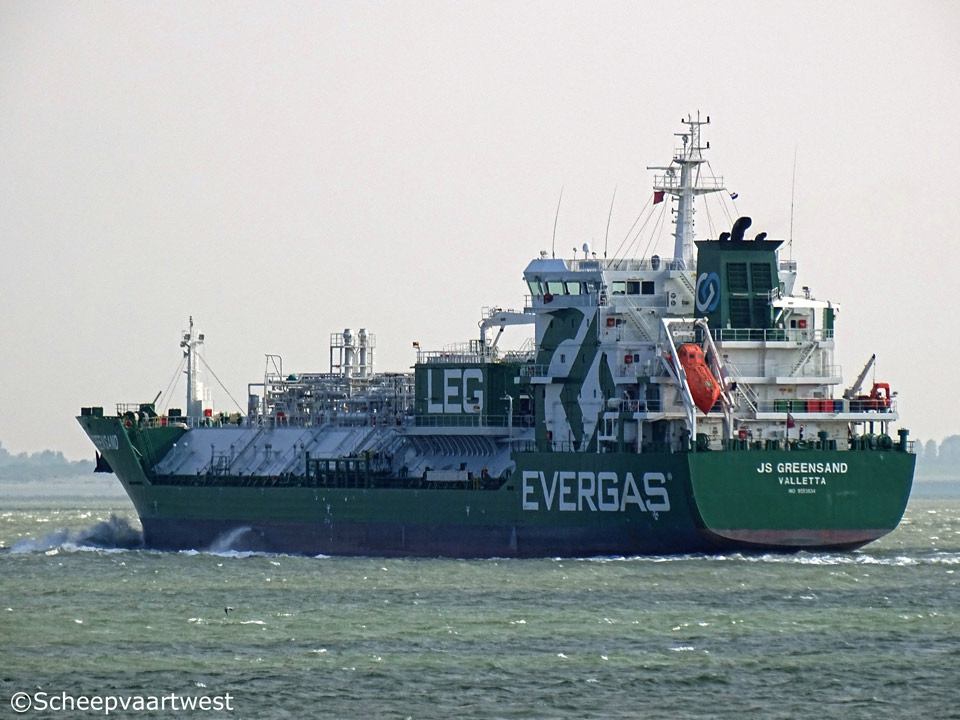

JS Greensand 01

Westerschelde 13 October 2015



Name

JS GREENSAND

Type

Liquefied gas tanker - Semi-refrigerated

Main products

Ammoniac - Butane - Etylene - Liquefied petroleum gases - Propylene oxyde - Vinyl-Chloride monomer

IMO-number

9553634

Call sign

9HA3759

Flag

Malta

Port of registry

Valletta

GT

12.743 t

Suez: 14.003,06

DWT

Summer: 15.016,5 t

NT

3.823 t

Suez: 11.179,50 t

Panama: 10.706 t

Light displacement

7.083,5 t

Loaded displacement

22.100,0

Length

142,98 m overall

134,98 m between perpendiculars

Breadth

21,60 m extreme

Draught

Summer: 9,50 m

Air draught

35,67 m normal ballast

Keel to highest point

42,27 m

Depth

12,10 m extreme

Speed

15,5 knots

Max.: 17,2 knots

Built

2014

Keel laid

12.10.2013

Launch date

03.01.2014

Date of completion

03.11.2014

Builder

Nantong Sinopacific Offshore & Engineering Co., Ltd.
Qidong
China

Yard number

S1012

Hull material

Mild steel

Hull type

Double hull

Main engine

1x Hyundai-MAN B&W 5S46ME-B8.2 - 2 stroke 5 cylinder 460 x 1.932 mm diesel engine 5.800 kW / 7.880 hp at 110,0 rpm

Built: 2013

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Screw propeller solid - aft at 110,0 rpm

Boilers

1x CHM 150,00 m² - 9,0 bar

Generators

3x MAN 7L23/30H main diesel generatorsets each 1.313 kVA - 1.050 kW - 1.522 hp at 900 rpm

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 188 hp at 1.800 rpm

Bow thruster

1x Suzhou STT 002 FP - 750 kW

Number of cargo tanks

3

Total capacity of tanks

12.052,16 m³ - 100%

11.811,12 m³ - 98%

Pumps

2x Centrifugal, Allweiler, MA 80-315/01 ballast pumps each 500 m³/h

1x Hamworthy Svanehoj DW 200/200-3-K discharging pump 400 m³/h

2x Hamworthy Svanehoj NMB 150c boosterpumps each 400 m³/h

Manifolds

Distance bridge front - mid point manifold: 38,00 m

Distance bow to mid-point manifold: 74,00 m

Centre of manifold to stern: 68,50 m

Tank capacities

Fuel oil: 1.264 t

Diesel oil: 363 t

Fresh water: 293 t

Lub oil: 27 t

Water ballast: 2.284 t

Lifting equipment

1x Crane midship - SWL 5,0 t

Maximum outreach: 16,00 m

1x Store crane - SWL 2,0 t aft

Commercial manager

Evergas Management A/S
Kalvebod Brygge 39-41
1560 Copenhagen
Denmark

Technical manager

Evergas Ship Management Pte. Ltd.
16 Raffles Quay, #43-01
Hong Leong Building
Singapore 048581
Republic of Singapore

Owner

SNC Manoel
17 Cours Valmy
Puteaux 92800
France

Latest data adjustment

03 March 2017
