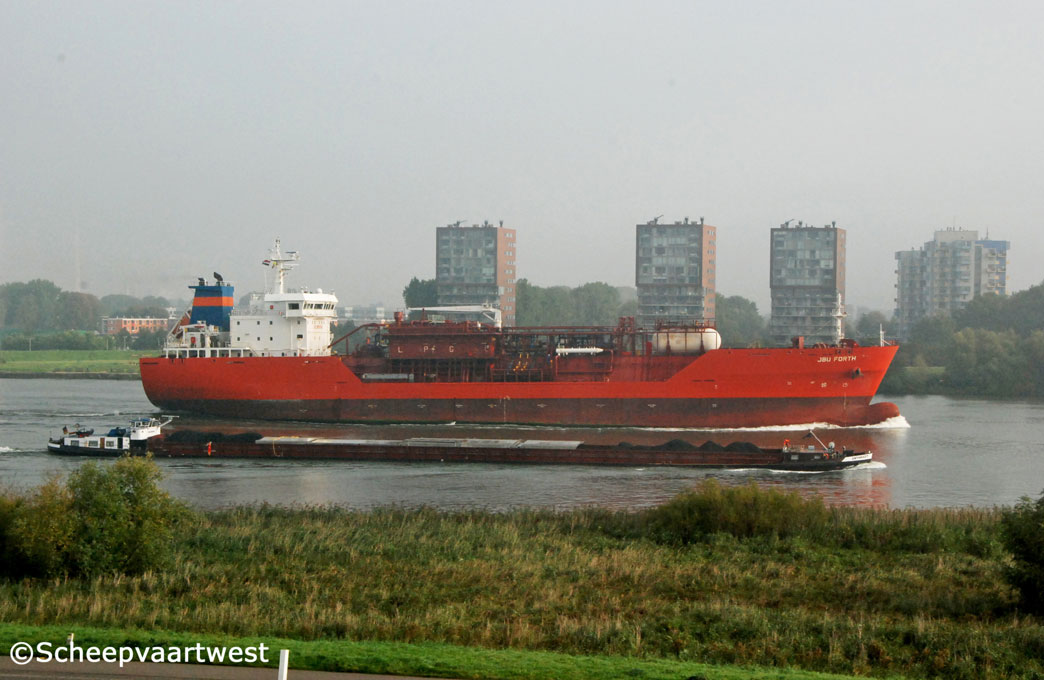

Spijkenisse (Oude Maas) 01 October 2014 |
 |
|
| Westerschelde 01/01/16 | |
|
Name |
JBU FORTH |
|
Type |
Liquefied gas carrier |
|
IMO-number |
9368194 |
|
Call sign |
3ETE7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
9.735 t |
|
DWT |
Summer: 11.738 t |
|
NT |
2.920 t |
|
Length |
126,70 m overall 118,89 m between perpendiculars |
|
Breadth |
20,40 m |
|
Draught |
Summer: 9,33 m |
|
Moulded L x B x D |
119,30 x 20,40 x 11,80 m |
|
Registered L x B x D |
120,55 x 20,40 x 11,80 m |
|
Keel to mast end |
36,40 m |
|
Freeboard |
3.316 mm |
|
Depth |
11,80 m moulded |
|
Speed |
16,0 knots |
|
Built |
2008 |
|
Keel laid |
10/09/2007 |
|
Launch date |
25/02/2008 |
|
Date of completion |
26/09/2008 |
|
Builder |
Sekwang Heavy Industries Ulsan Co. Ltd. Ulsan South Korea |
|
Yard number |
1158 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W 6L48/60B - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine 7.200 kW / 9.789 hp at 500 rpm Built: 2007 Manufacturer: MAN Diesel A/S Frederikshavn - Denmark |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 480 mm |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO Miura 30,60 m² - 7,0 bar 1x CHR Miura 118,00 m² - 7,0 bar Manufacturer :Miura Co., Ltd. |
|
Shaft generator |
1x 1.100 kW |
|
Generators |
3x Main diesel generatorsets each 950 kVA - 760 kW - 1.196 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 190 hp |
|
Bow thruster |
1x 590 kW |
|
Number of tanks |
2 |
|
Cargo capacity |
Liquid: 10.135,66 m³ |
|
Pressure |
Max.: 0,55 Mpa |
|
Temperature |
Min.: -104°C |
|
Number of pumps |
2x Cargo pumps each 500 m³/h |
|
Tank capacities |
Fuel oil: 1.129,4 m³ Fresh water: 149 m² Water ballast: 2.803 m³ |
|
Crew |
17 |
|
Manager |
Selandia Ship Management (Singapore) Pte Ltd. Republic of Singapore |
|
Operator |
JB Ugland Shipping Ltd. Singapore City Republic of Singapore |
|
Registered owner |
Michina Marina S. A. |
|
Sister ships |
JBU Maas - IMO 9366940 JBU Schelde - IMO 9374911 |
|
Renamed |
2016 Kamilla Kosan 2016 - 2022 United Kingdom - Call sign: MAFV3 2022 Republic of Singapore, Singapore City - Call sign: 9V7293 Owner: BW EPic Kosan Vessels Pte Ltd. - republic of Singapore Manaer: BW Epic Kosan Denmark |
|
Latest data adjustment |
12 February 2024 |
