| Westerschelde 29 January 2015 |
 |
 |
 |
 |
 |
 |
|||||

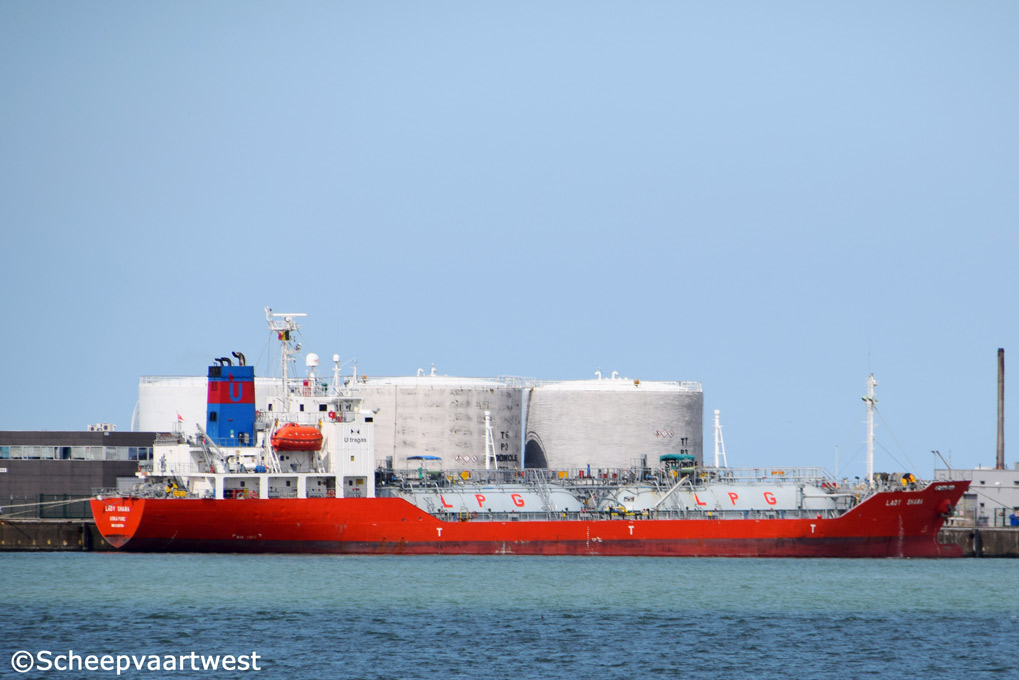

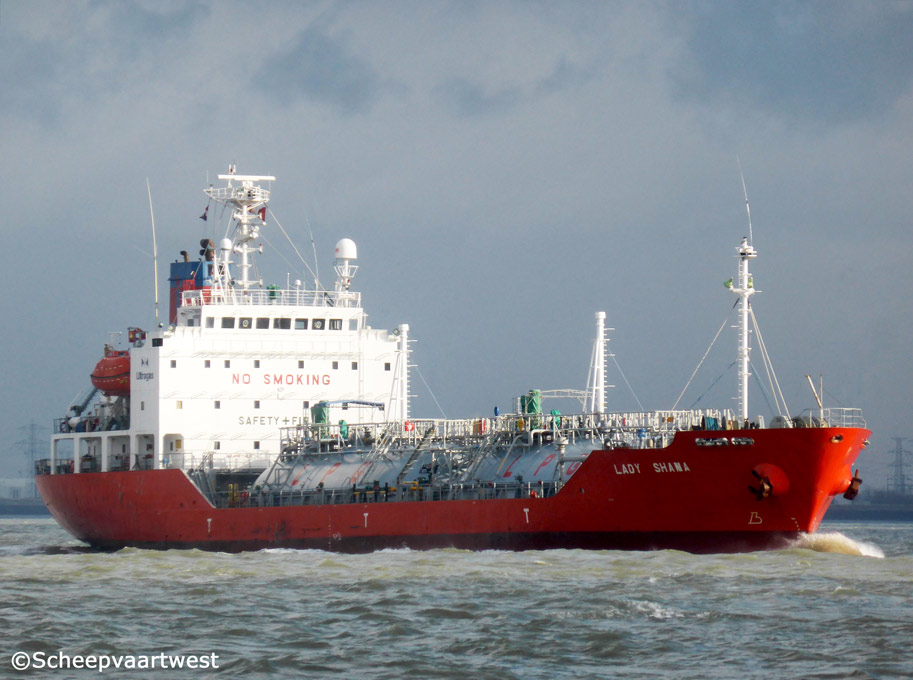

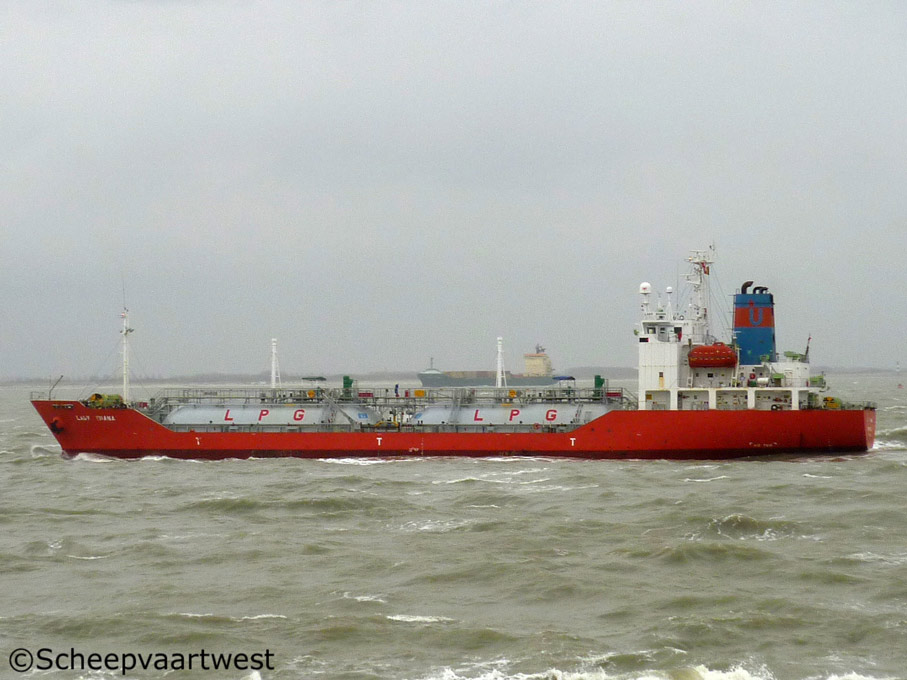

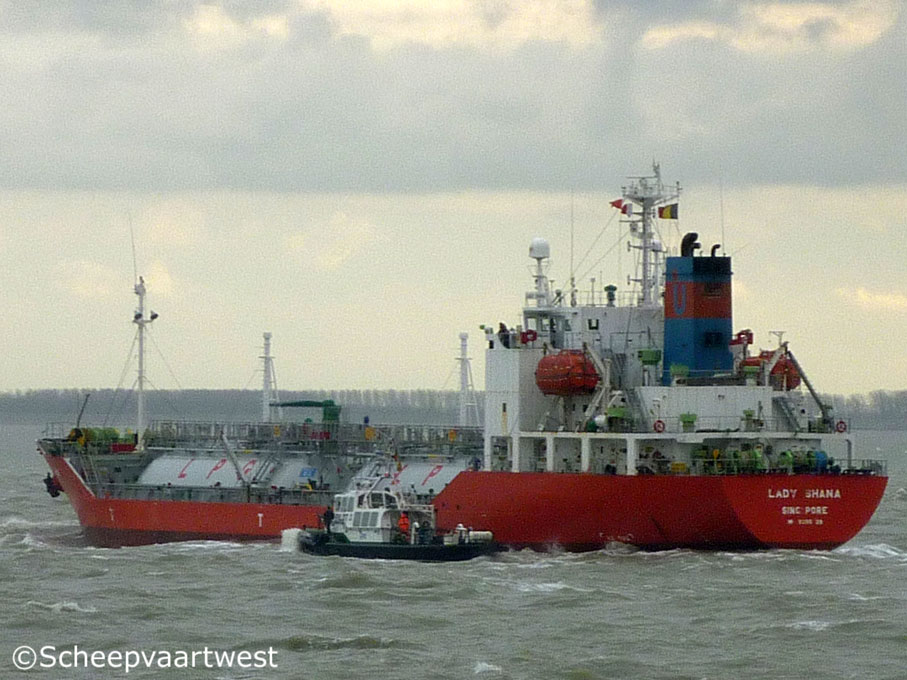

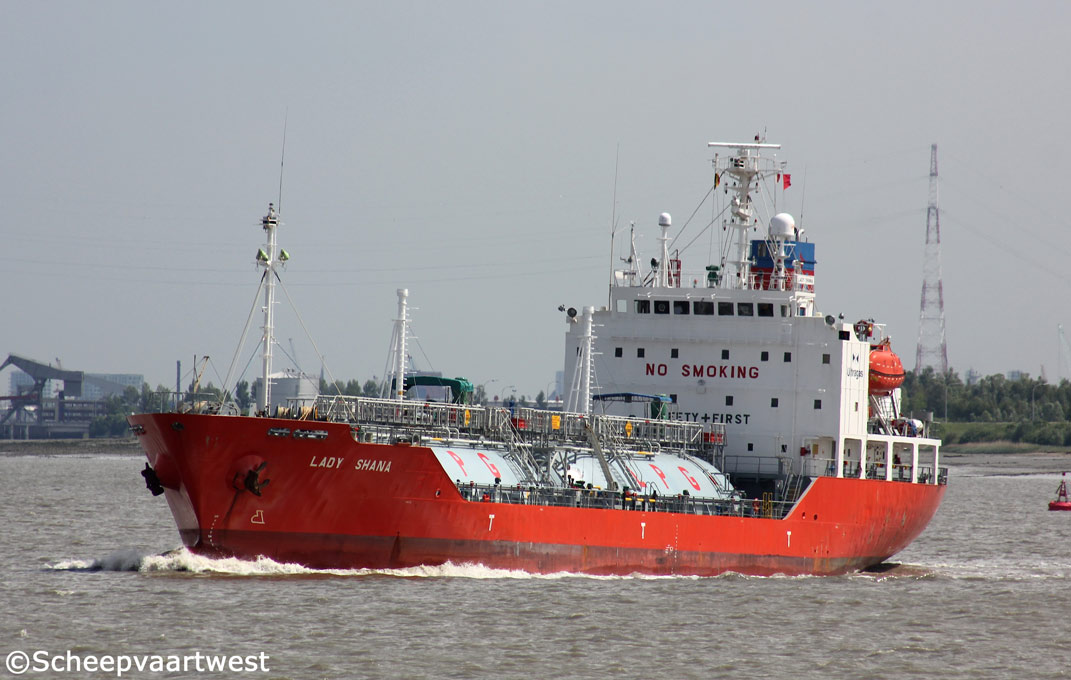

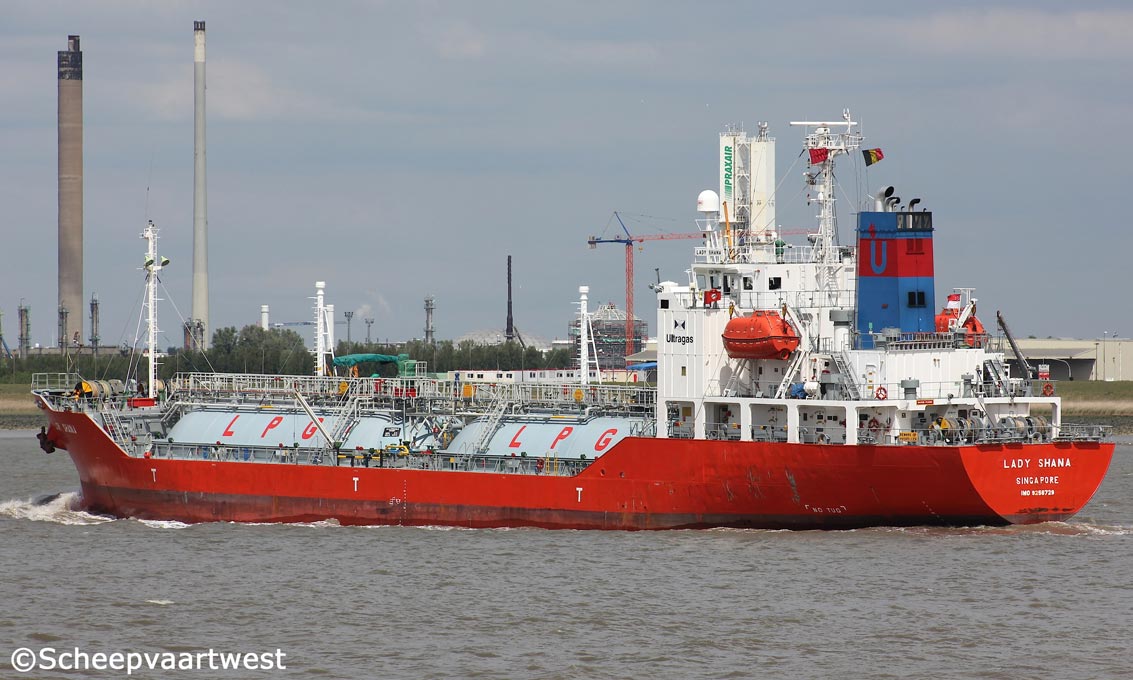

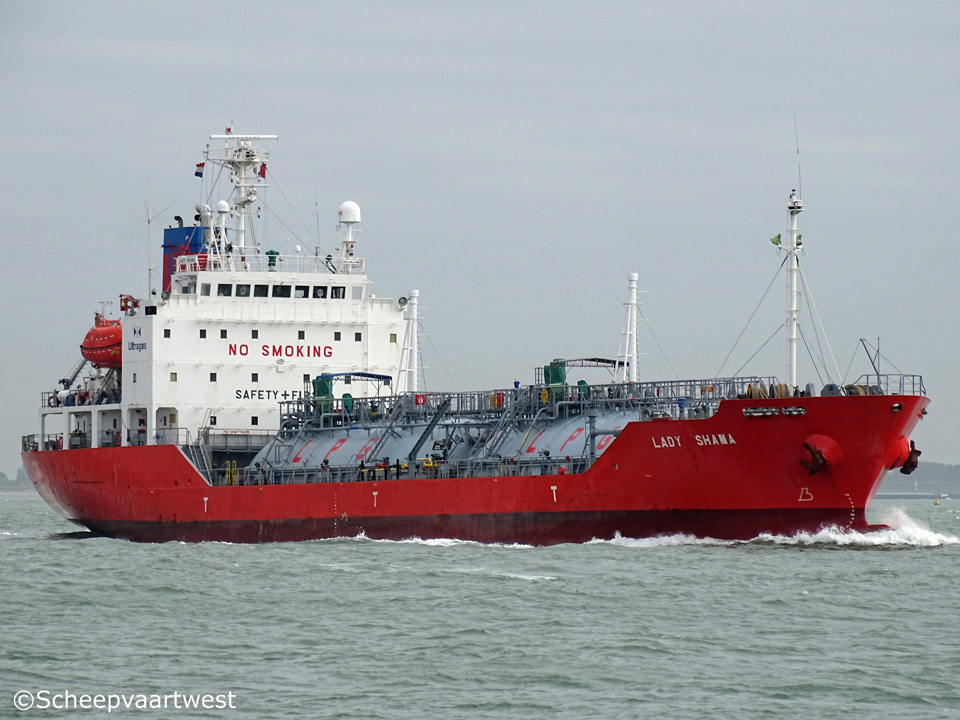

| Westerschelde 12/01/12 | Westerschelde 12/01/12 | Antwerpen 25/05/15 | Antwerpen 25/05/15 | Antwerpen 25/05/15 | Zeebrugge 31/07/15 |
 |
| Westerschelde 22/10/15 |
|
Name |
LADY SHANA |
|
Previous names |
2001 - 08.2004 Cassiopeia Gas |
|
Type |
Liquefied gas tanker - Pressurised |
|
IMO-number |
9256729 |
|
Call sign |
9VJJ4 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore |
|
GT |
3.435 t |
|
DWT |
3.856,39 t |
|
NT |
1.031 t |
|
Displacement |
5.949,70 t |
|
Length |
97.69 m overall |
|
Breadth |
16,00 m |
|
Draught |
5,413 m |
|
Moulded L x B x D |
89,90 x 16,00 x 7,20 m |
|
Registered L x B x D |
90,36 x 16,00 x 7,20 m |
|
Freeboard |
1.817 mm |
|
Depth |
7,213 m |
|
Speed |
Trial: 15,8 knots |
|
Built |
2001 |
|
Keel laid |
18.04.2001 |
|
Launch date |
10.07.2001 |
|
Date of completion |
10.10.2001 |
|
Builder |
Shitanoe Shipbuilding Co., Ltd. |
|
Yard number |
1218 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x 2 stroke single acting 5 cylinder 330 x 1.050 mm diesel engine - 2.700 kW at 210,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Generators |
3x Main diesel generatorsets each 1.010 kVA |
|
Number of tanks |
2 |
|
Cargo tank capacity |
Tank 1: 1.758,204 m³ Tank 2: 1.758,204 m³ Total: 3.516,444 m³ |
|
Max. pressure |
1,77 Mpa / 18,0 kg/cm² |
|
Pumps |
2x Deepwell each 200 m³/h |
|
Tank capacities |
Fuel oil: 489 m³ Fresh water: 171 m³ Water Ballast: 1.669 m³ |
|
Commercial manager |
Unigas International Ltd. Rotterdam |
|
Technical manager |
Star Management Associates |
|
Operator |
Unigas International B.V. Grotiushuis, 6th floor |
|
Registered owner |
White River Shipping Co., Pte., Ltd. |
|
Renamed |
Lady Dme Republic of Panama - Call sign: HOYR Manager: Blue Energy & Maritime Company Limited |
|
Latest data Adjustment |
25 July 2017 |
