| Westerschelde 18 September 2015 |
|
Name |

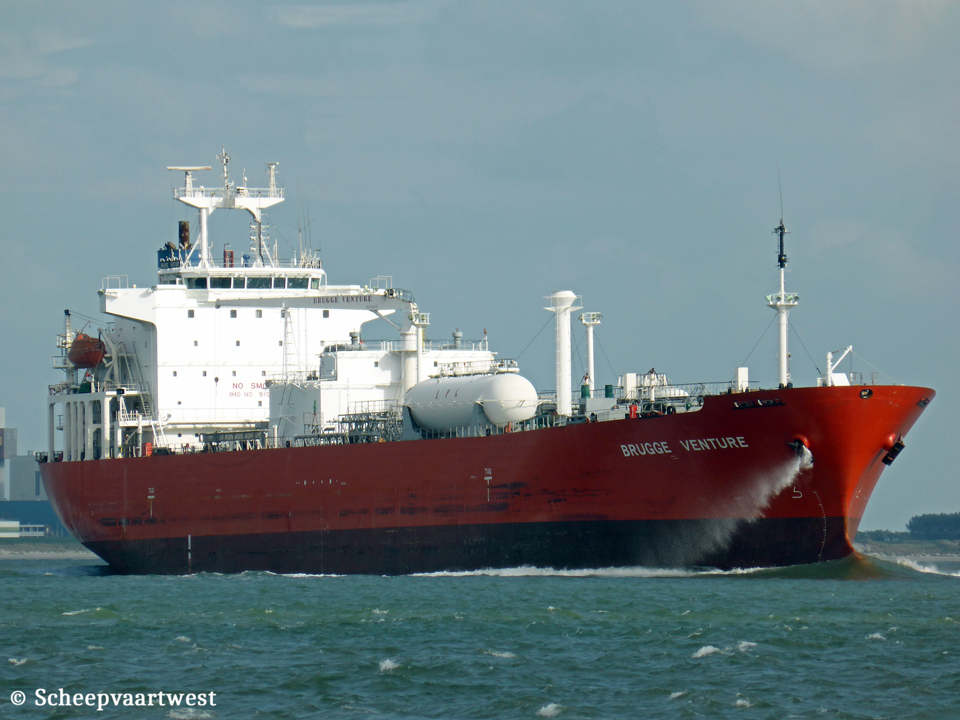

BRUGGE VENTURE |
|
Type |
Liquefies gas tanker - LPG |
|
IMO-number |
9132789 |
|
Call sign |
VRYE8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
Previous flags |
1997 - 1997 Malta, Valletta 1997 - 2000 Liberia, Monrovia 2000 - 2022 Malta, Valletta |
|
GT |
22.352 t Suez: 24.006,17 t |
|
DWT |
Summer: 26.777 t Winter: 25.863 t |
|
NT |
6.945 t Suez: 20.187,79 t Panama: 18.630 t |
|
Displacement |
Summer: 37.661 t Winter: 36.747 t |
|
Length |
169,90 m overall 162,00 m Between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,13 m Winter: 10,89 m |
|
Keel to mast end |
46,40 m |
|
Air draft |
Lightship: 4,65 m Normal ballast: 39,40 m At loaded summer deadweight: 35,27 m |
|
Freeboard |
Summer: 7.120 mm Winter: 7.350 mm |
|
Depth |
18,21 m moulded |
|
Speed |
Ballast Max: 17,5 knots - Economic: 14,4 knots Laden: Max: 16,5 knots - Economic: 13,4 knots |
|
Built |
1997 |
|
Keel laid |
09/09/1996 |
|
Date of completion |
06/05/1997 |
|
Builder |
Mitsubishi Nagasaki Shipyard & Machinery Works Nagasaki Japan |
|
Yard number |
2113 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 7UEC50LSII - 7 cylinder combustion engine 9.628 kW / 13.090 hp |
|
Propellers |
1x Fixed propeller |
|
Generators |
4x Wärtsilä 4L20 diesel generatorsets each 615 kW |
|
Cargo tank capacity 98% |
34.710 m³ |
|
Min temp |
-50°C |
|
Number of pumps |
6x Electric motor deepwell cargo pumps each 400 m³/h 2x Centrifugal ballast pumps each400 m³/h |
|
Manifolds |
Bow to centre manifold: 83,50 m Stern to centre manifold: 86,40 m Distance bridge front to centre manifold: 55,50 m Distance between cargo manifolds centres : 2.000 mm Distance ships rail to manifold: 3.000 mm Distance manifold to ships side: 3.000 mm Top of rail to centre manifolds: 1.100 mm Distance main deck to centre of manifold: 2.180 mm |
|
Tank capacities |
Fuel oil: 1.987 m³ Diesel oil: 280 m³ Gas oil: 62 m³ |
|
Crew size |
30 |
|
Manager |
Exmar Antwerpen Belgium |
|
Registered owner |
Blackbeard Sg Ltd. |
|
Renamed |
2017 Colca Peru, Callao - Call sign: OA2016 Registered owner: Transoceanica Naviera SA, Lima - Peru Manager: Transoceanica Naviera SA, Lima - Peru |
|
Latest data adjustment |
13 February 2024 |
