| Westerschelde 17 July 2017 |
|
Name |

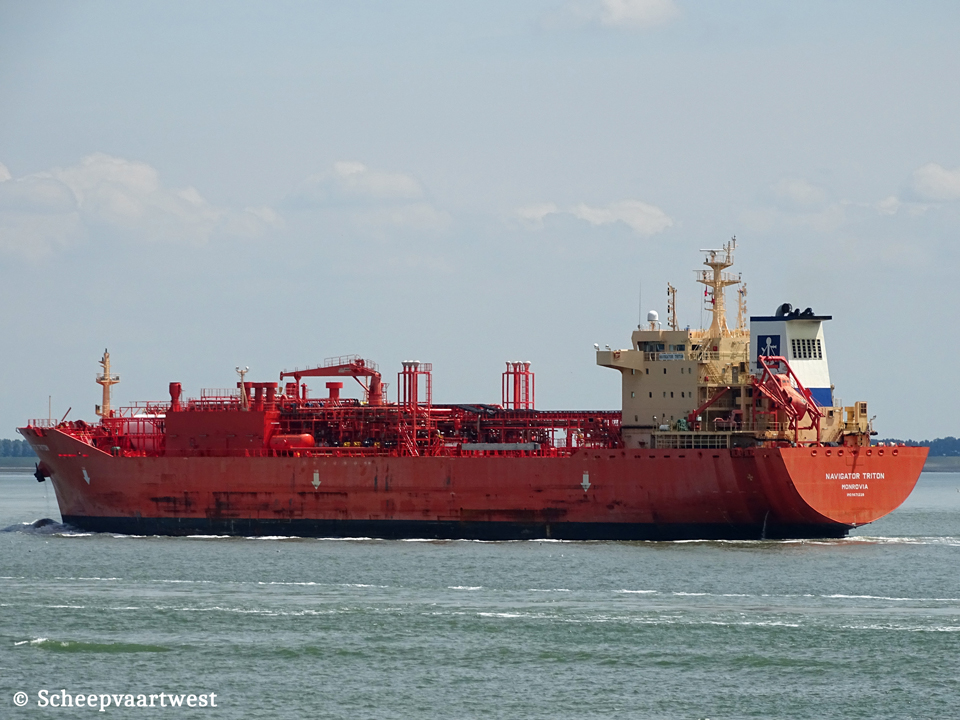

NAVIGATOR TRITON |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9671228 |
|
Call sign |
D5FZ5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t |
|
DWT |
16.928,6 t |
|
NT |
5.163 t |
|
Length |
159,96 m overall 152,76 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draught |
Summer: 9,41 m |
|
Keel to mast end |
42,73 m |
|
Depth |
16,70 m |
|
Speed |
Max: 16,0 knots |
|
Built |
2015 |
|
Keel laid |
07/03/2014 |
|
Launch date |
26/05/2014 |
|
Date of completion |
09/01/2015 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2533 |
|
Hull material |
Steel |
|
Hull type |
Partly double bottom |
|
Main engine |
1x Hudong/MAN-B&W 6S50ME-C8.2 - 2 strokle 6 cylinder 500 x 2.000 mm combustion engine 7.170 kW / 9.748 hp at 114,0 rpm |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, composite - Aalborg OC |
|
Generators |
2x MAN 6L21/31 main diesel generatorsets 2x MAN 5L21/31 main diesel generatorsets |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M ) diesel generatorset |
|
Number of tanks |
4x Bi-lobe tanks |
|
Cargo tank capacity |
Liquid: 20.580 m³ |
|
Deck tank |
200 m³ |
|
Number of pumps |
8x Cargo pumps each 250 m³/h |
|
Tank capacities |
HFO: 1.282 m³ MGO: 444 m³ Ballast: 7.465 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Commercial manager |
Navigator Gas Ship Management (Denmark) ApS Smakkedalen 4 2820 Gentofte Denmark |
|
ISM manager |
Northern Marine Management Ltd. Alba House, 2, Central Avenue, Clydebank Business Park Clydebank, G81 2QR United Kingdom |
|
Registered owner |
Navigator Triton LLC (Foreign Maritime Entity) Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
19 June 2023 |
