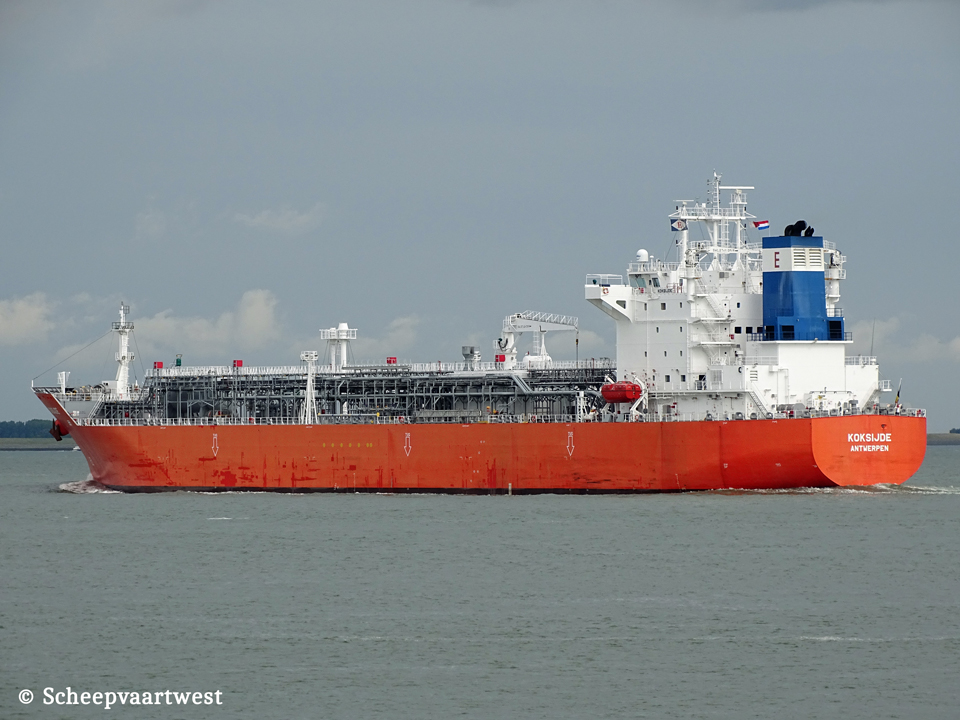

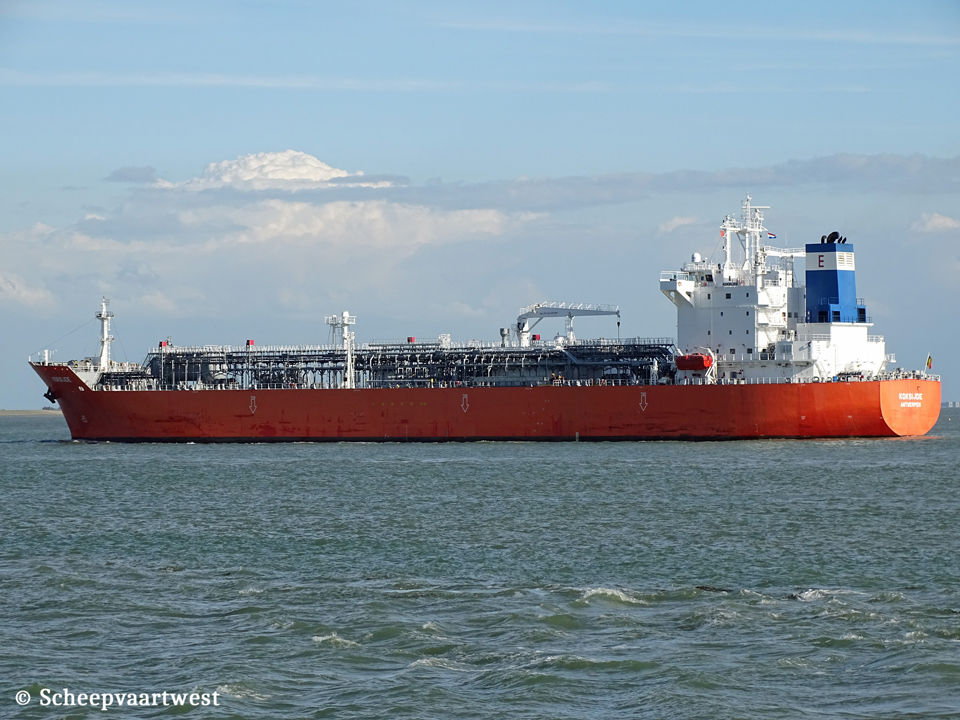

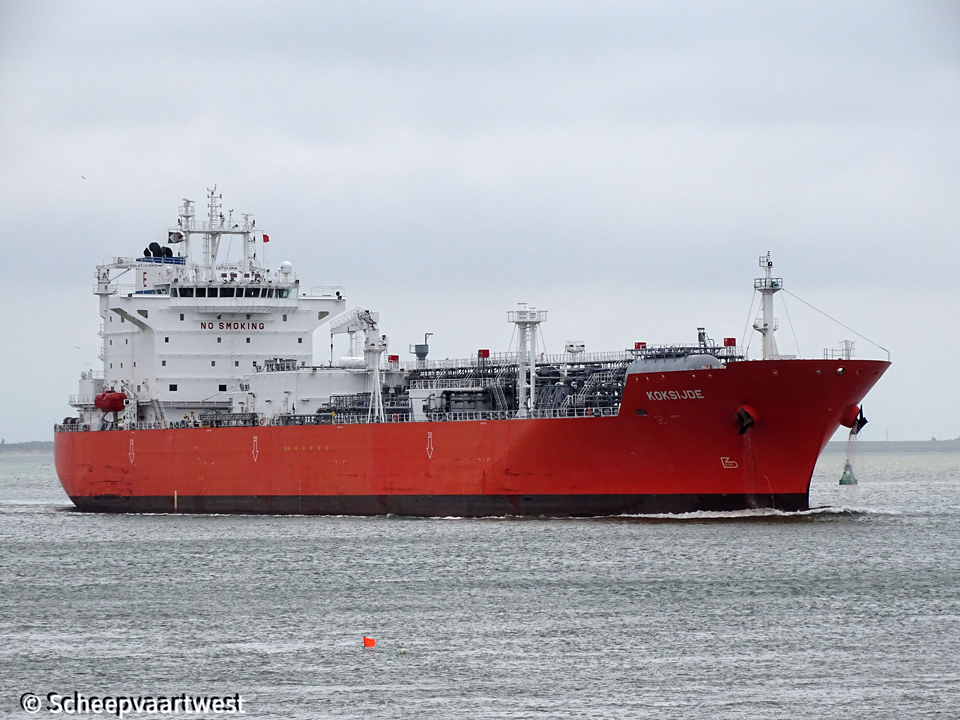

Westerschelde 08 June 2020 |
 |
 |
|
| Westerschelde 06/09/20 | Westerschelde 03/08/20 | |
|
Name |
KOKSIJDE |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9719305 |
|
Call sign |
ONJH |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
25.952 t |
|
DWT |
Summer: 29.649 t |
|
NT |
7.785 t |
|
Length |
181,70 m overall 171,40 m between perpendiculars |
|
Breadth |
29,43 m extreme |
|
Draught |
Summer: 10,42 m |
|
Keel to mast end |
47,81 m |
|
Depth |
18,00 m moulded |
|
Speed |
Max: 16,20 knots Service: 15,5 knots |
|
Built |
2018 |
|
Keel laid |
21/12/2015 |
|
Date of completion |
22/05/2018 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Subic Bay The Philippines |
|
Yard number |
136 |
|
Hull material |
Higher tensile steel |
|
Hull type |
Double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Doosan 6S50ME-B9 - 2 stroke single acting 8 cylinder 500 x 2214 mm combustion engine 8.560 kW / 11.638 hp at 107,0 rpm Manufacturer: Doosan Engine Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller aft at 107,0 rpm |
|
Generators |
3x MAN-B&W 8L23/30H - 4 stroke 8 cylinder 225 x 300 mm diesel engines each 1.400 kW connected with generators each 1.330 eKW - 450 Volt 60 Hz Manufacturer: Doosan Engine Co Ltd - South Korea |
|
Cargo tank capacity |
Liquid gas: 37.844 m³ |
|
Pumps |
6x Cargo pumps each 465 m³/h |
|
Crew size |
18 |
|
Commercial manager |
Exmar Shipmanagement NV De Gerlachekaai 20 2000 Antwerp Belgium |
|
ISM manager |
Exmar Marine SA De Gerlachekaai 20 2000 Antwerpen Belgium |
|
Registered owner |
Exmar Shipping BV Care of Exmar Marine SA De Gerlachekaai 20 2000 Antwerpen Belgium |
|
Latest data adjustment |
09 January 2023 |
