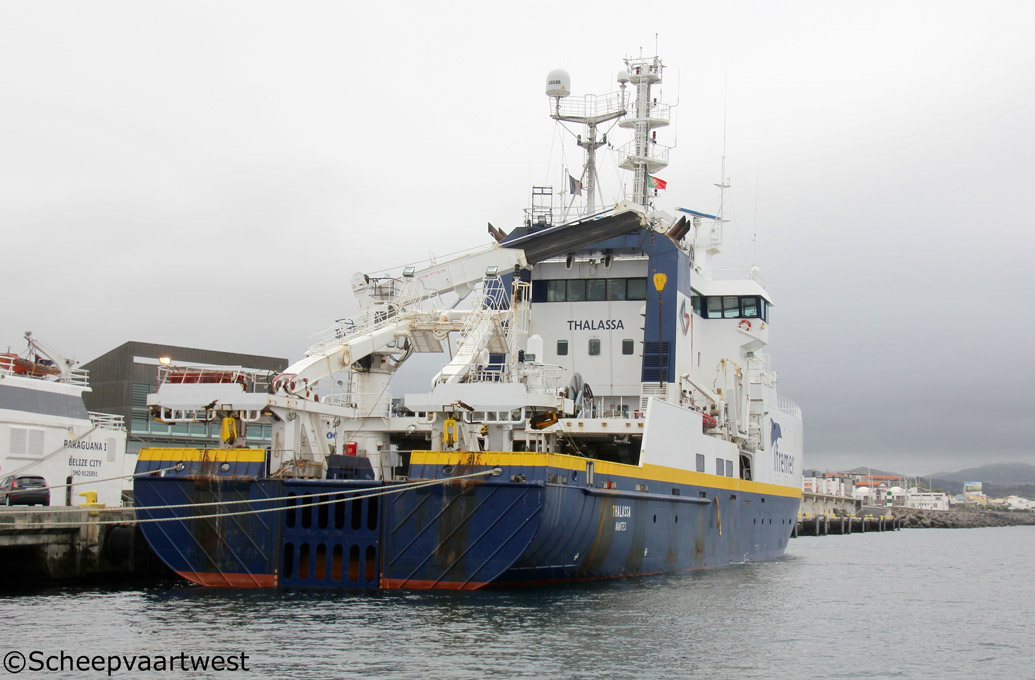

Ponta Delgada, Azores 09 June 2016 |
 |
 |
 |
||

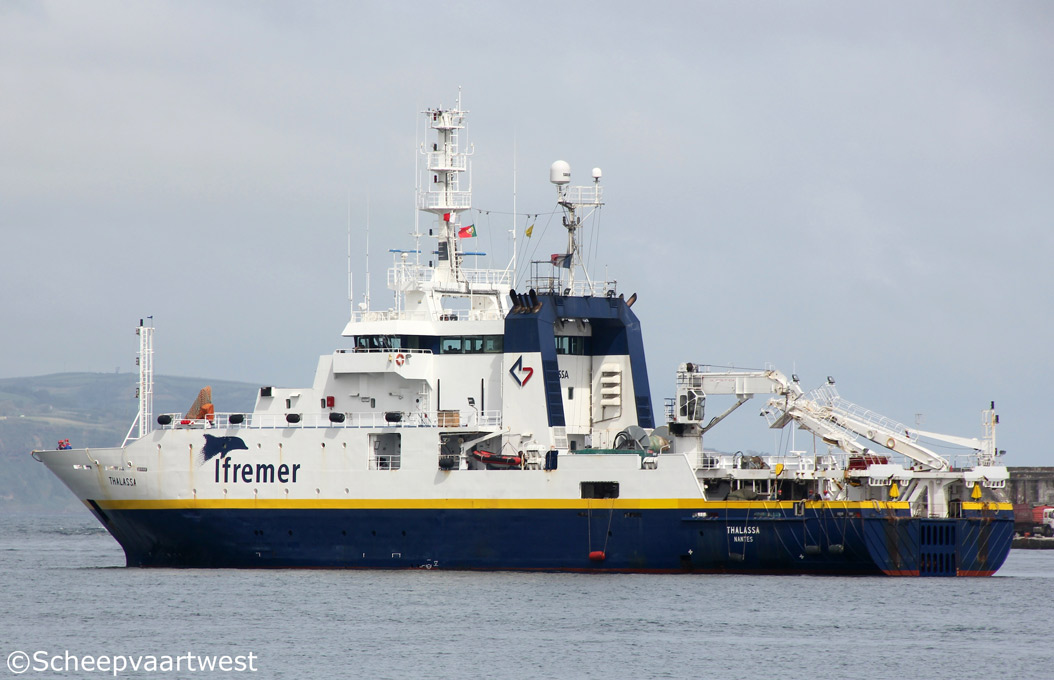

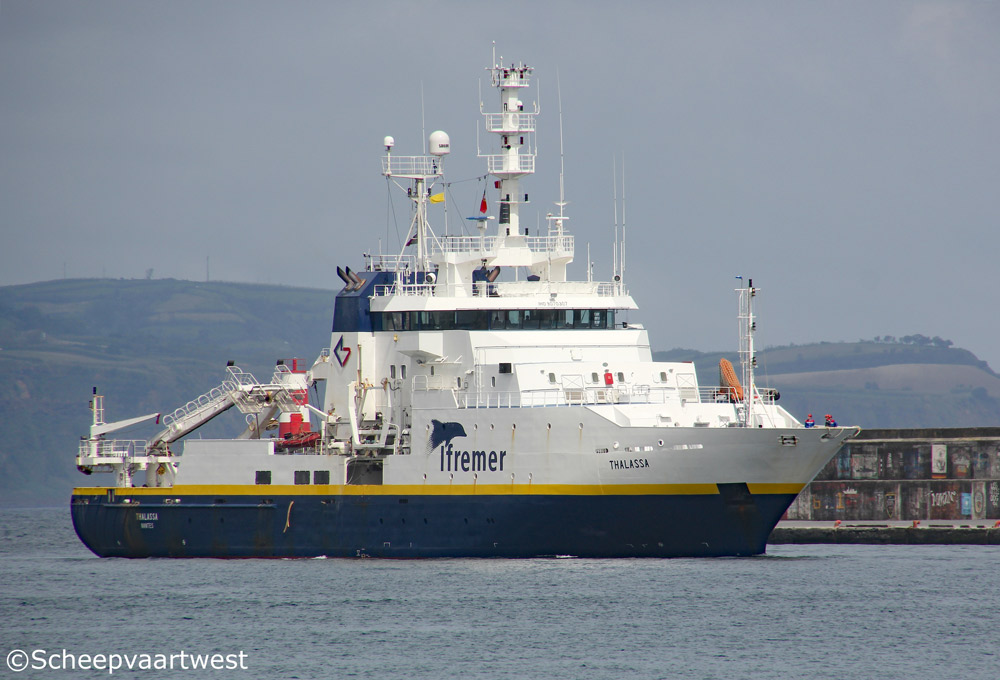

| Ponta Delgada 09/06/16 | Ponta Delgada 20/06/16 | Ponta Delgada 10/06/18 | ||
|
Name |
THALASSA |
|
Type |
Fishing vessel - Research vessel |
|
IMO-number |
9070307 |
|
Call sign |
FNFP |
|
Flag |
France |
|
Port of registry |
Nantes Saint Nazaire |
|
GT |
2.803 t |
|
DWT |
955 t |
|
NT |
840 t |
|
Displacement |
Max.: 3.022 t |
|
Length |
73,65 m overall 64,94 m between perpendiculars |
|
Breadth |
14,90 m overall |
|
Draught |
6,02 m |
|
Freeboard |
430 mm |
|
Depth |
6,45 m |
|
Speed |
Max.: 14,7 knots Service: 11,0 knots |
|
Built |
1996 |
|
Date of completion |
03.05.1996 |
|
Builder |
MIM DIeppe (Manche Industrie Marine) |
|
Yard number |
620 |
|
Material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
6 |
|
Main engine |
4x MWM-Deutz TBD 604-BV12 - 4 stroke 12 cylinder 170 x 195 mm diesel engines total 2.000 kW / 2.717 hp at 1.500 rpm |
|
Electrical propulsion engine |
2.000 kW at 150 rpm |
|
Propelling system |
1x Screw propeller solid - aft at 150 rpm 6 blades |
|
Propelling type |
Electrical |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generators |
4x 1.250 kVA - 1.000 kW |
|
Bow thrusters |
1x Brünvoll 440 kW, forward 1x Brünvoll 264 kW, aft |
|
Deck machinery |
Swinging double-clearance stern A-frame (ALM) -in fixed position (for fishing) by the bogie - SWL 22 t -in mobile position (for oceanography) with the swinging beam and lifting winch - SWL 10 t ALM -lifting winch, Ø 52 mm soft line - SWL 10 t ALM/23 m 2x side points to attach deep-water pulleys - SWL 15 t ALM Articulated side A-frame for bathysounder hydrology - SWL 5 t ALM -hydrological winch with Ø 10,8 mm stainless steel cable - SWL 5 t / 8.000 m - -bathysounder winch with Ø 10,8 mm electrical conductor core cable - SWL 5 t / 8.000 m 2x Drum winches, Ø 26 mm steel cable - SWL 15 t / 4.500 m -Marelec SYNCHROMAR II system used to check tension and length reeled out 2x Trawl reels of 12 m³ and 16 m³ - SWL 30 t netsonde winch, electrical conductor core cable Ø 12 mm - SWL 1 t /2.000 m 1x Dredging winch, Ø 12 mm steel cable - SWL 2,5 t / 600 m Plankton crane (aft starboard) - SWL 1 t 2x Travocéan type moon pools for through the hull launchs of scientific equipment (Ø 300 mm and Ø 500 mm) ALM telescoping quarterdeck crane - SWM 10 t at 10 m, 4 t at 18,50 m |
|
Lifting equipment |
Forecastle crane: SWL 1,25 t at 8,63 m |
|
Tank capacities |
Fuel oil: 460 m³ fresh water: 190 m³ |
|
Scientific equipments |
Fishery echo sounders: Multibeam ME 70 - 70 to 120 kHz - Simrad Fishery echo sounders: Simple beam ER 60 - 18/38/70/120/200/333 kHz - Simrad Omnidirectional fishing sonar SR 240 - 24 kHz - Simrad Trawl explorer - Marport Marport trawl sensors - 42/75 kHz Doppler current profilers 150 kHz BB and 38 kHz NB - RDI Thermosalinograph SBE 21 - Seabird Bathythermograph MK 12 - Sippican Central clock - SofyM90 - ACEB Weather station MILOS 500 - Vaisala |
|
Scientific quarters |
4 Laboratories : 84 m² Hydrology : 24 m² Physics : 18 m² Chemistry : 15 m² Biology : 27 m² Scientific HQ and processing room : 70 m² Mission HQ : 35 m² Automated sorting room : 130 m² Location for five 20 ft lab containers |
|
Navigation and positioning |
Integrated navigation computer - CINNA Electronic map - MAXSEA - Informatique et Mer 2x GPS différential - NR 103 - DASSAULT SERCEL 1x receiver Syledis - VEGA - Sercel 2x radars ARPA 340 - Racal-Decca 2x gyro compasses - SGB 1000S - Brown Electromagnetic log - Galatée MK3 - BEN Navigation sounder GDS 101 - Skipper Automatic pilot 828 - Necco Marine Systems Dynamic positioning - DPS 901 - Cegelec Project Meteofax receiver |
|
Radio communications |
Radio station SMDSM Sailor 2x INMARSAT Standard B ABB NERA 1x VHF - RT 4800 E/R - Sailor Radio Telephone ITINERIS 8W |
|
Owner |
Ifremer - Institut Francais De Rech. .Exploit. De La Mer |
|
Latest data adjustment |
18 July 2016 |
