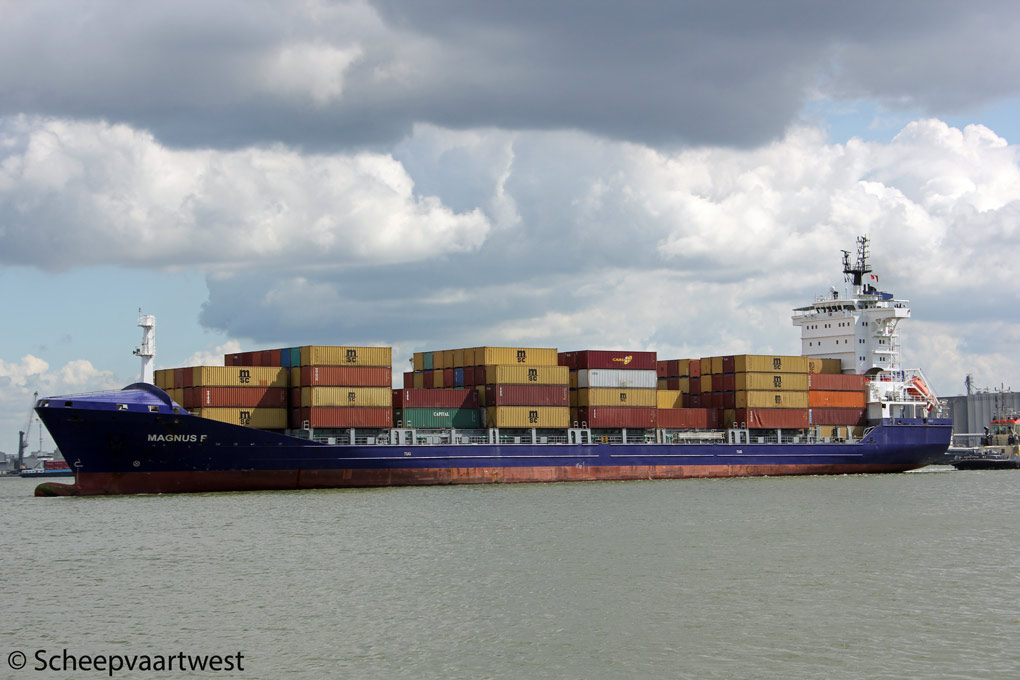

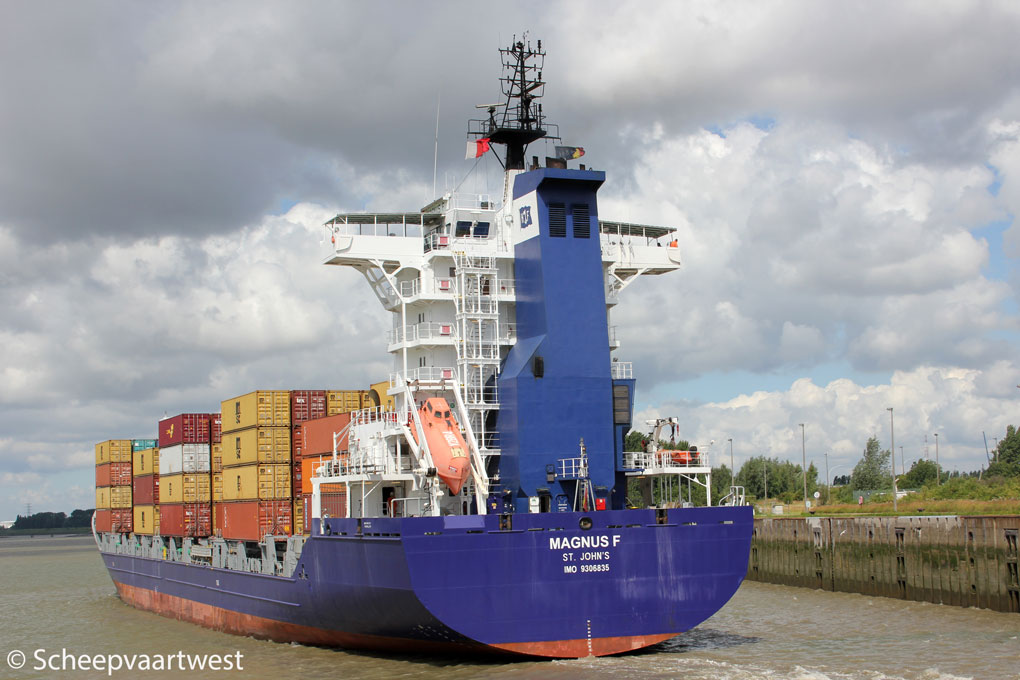

| Westerschelde 31 October 2012 |
 |
 |
 |
 |
 |
 |
|||||

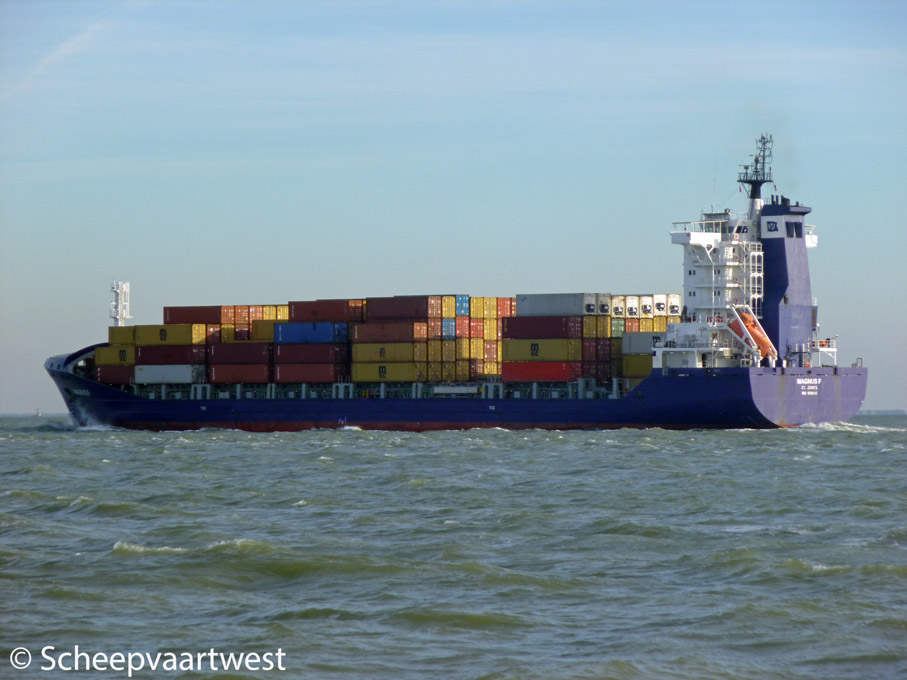

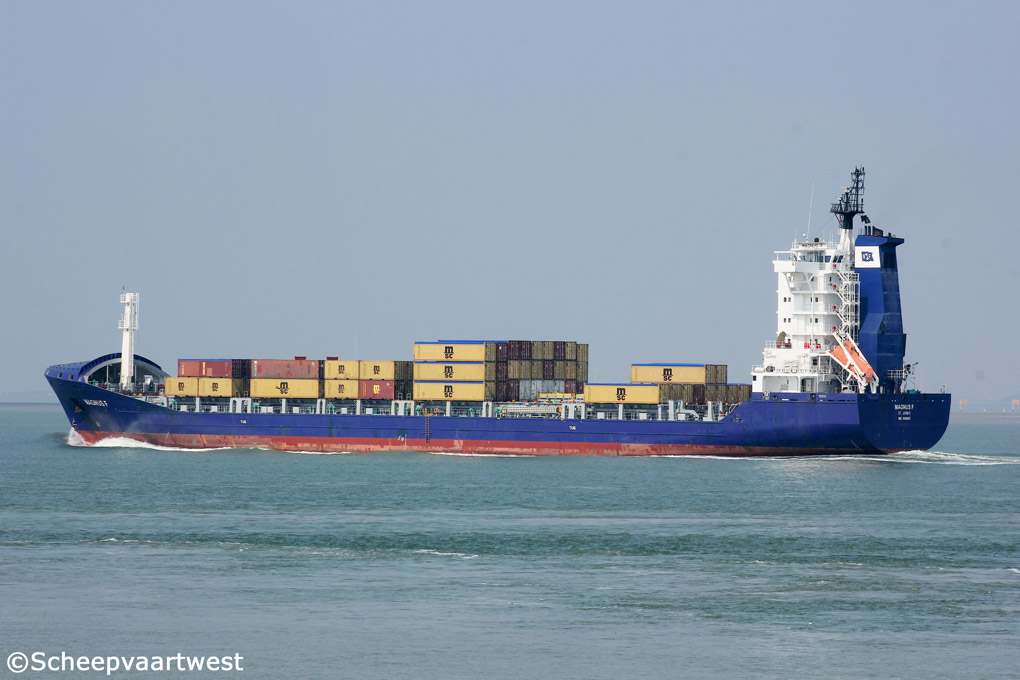

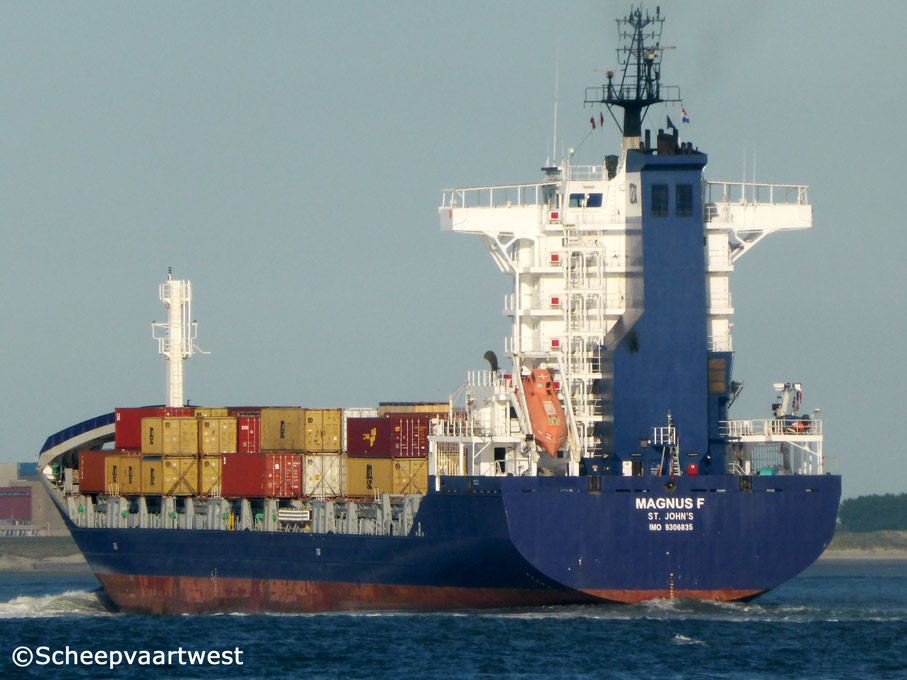

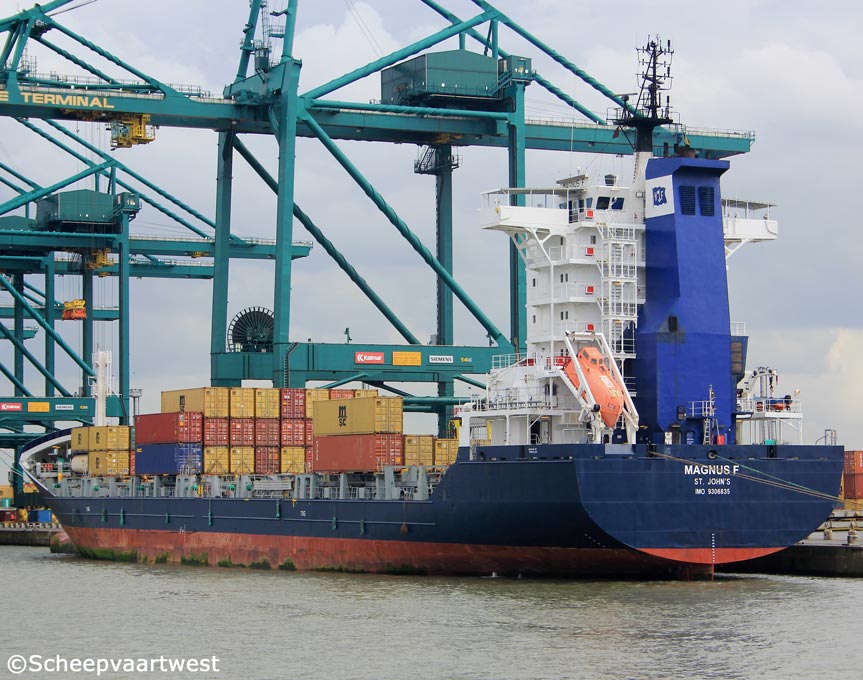

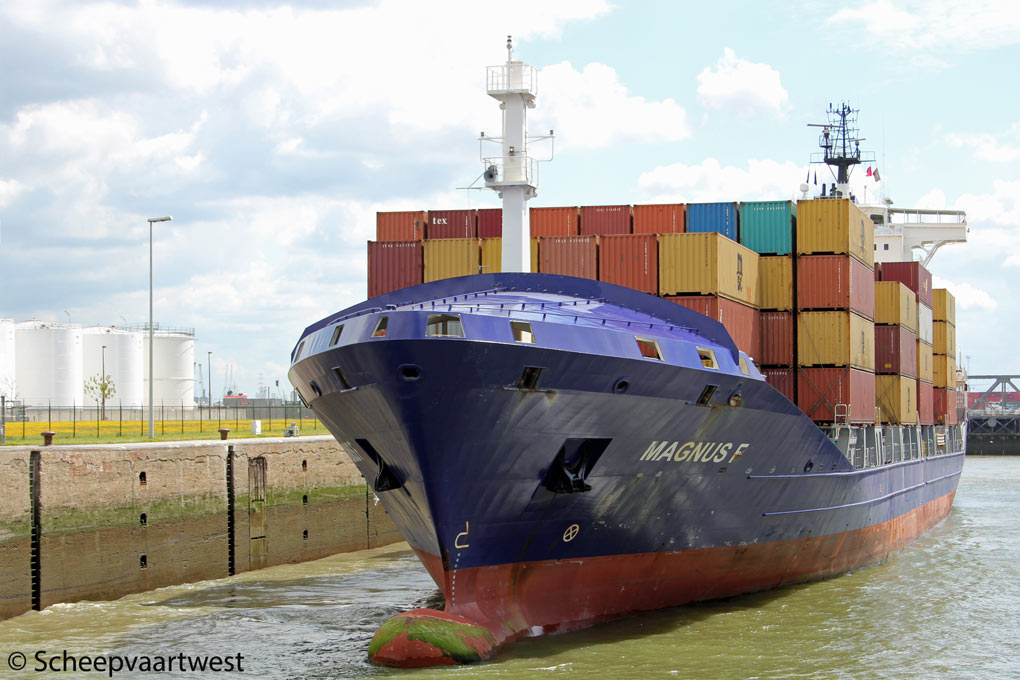

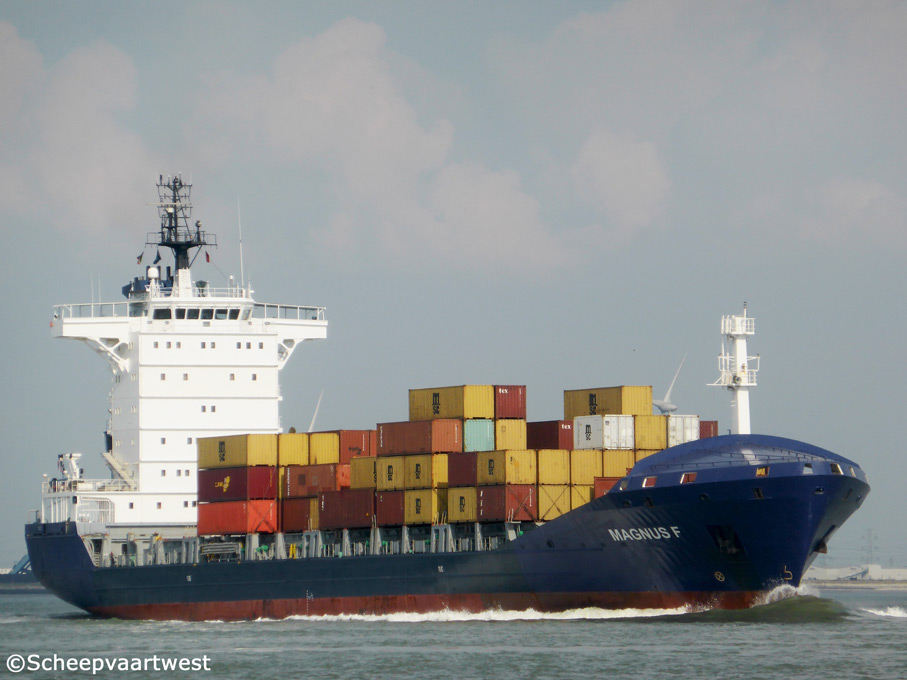

| Westerschelde 07/10/11 | Antwerpen 13/08/13 | Antwerpen 13/08/13 | Antwerpen 13/08/13 | Westerschelde 11/06/14 | Westerschelde 04/09/14 |
 |
 |
 |
||

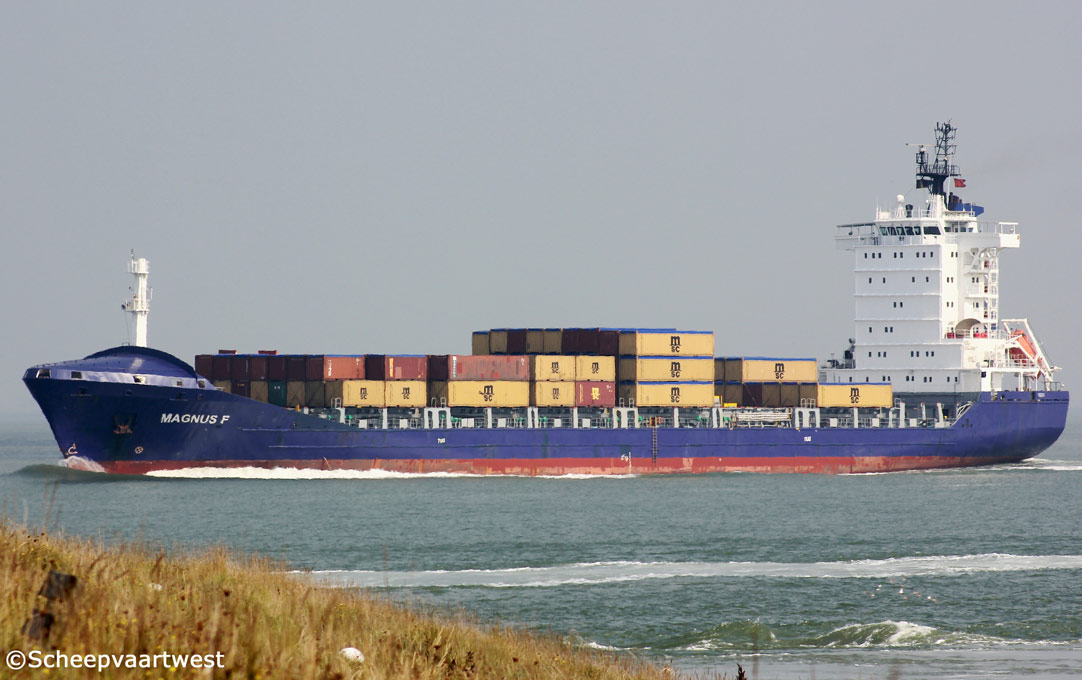

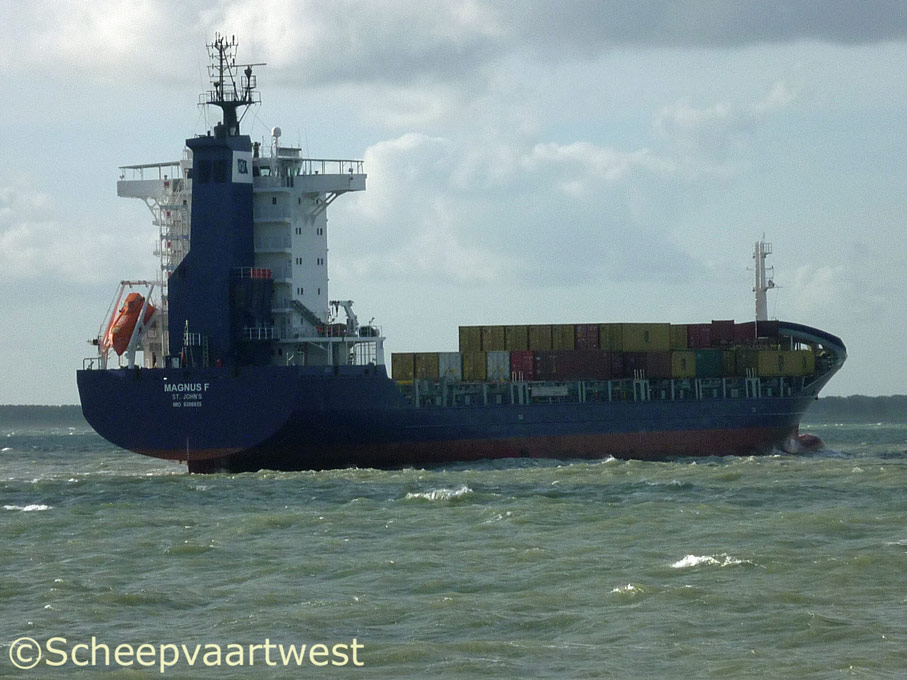

| Westerschelde 04/09/14 | Westerschelde 24/07/14 | Antwerpen 07/05/15 |
|
Name |
MAGNUS F |
|
Previous names |
2006 - 09/2010 TS Moji 09/2007 - 03/2011 El Bravo |
|
Type |
Containership |
|
IMO-number |
9306835 |
|
Call sign |
V2BR4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.931 t |
|
DWT |
14.080,4 t |
|
NT |
5.032 t |
|
Number of 20ft container |
In hold: 334 On deck: 784 Total: 1.118 |
|
Container capacity 14t |
700 |
|
Reefer capacity |
220 |
|
Length |
147,82 m over all 141.,37 m registered |
|
Breadth |
23,25 m registered |
|
Draught |
8,506 m |
|
Forecastle |
11,17 m |
|
Poop |
13,30 m |
|
Depth |
11,50 m moulded |
|
Speed |
19,6 knots |
|
Built |
2006 |
|
Keel laid |
06/12/2004 |
|
Launch date |
04/11/2005 |
|
Date of completion |
04/04/2006 |
|
Builder |
China Chang Jiang National Shipping Group Corporation Jinling Shipyard 55, Yanjiang Road 210015 Nanjing , Jiangsu People's Republic of China |
|
Yard number |
JLZ 030402 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W 7L58/64 - 4 Stroke single acting 7 cylinder 580 x 640 mm combustion engine 9.730 kW / 13.229 hp at 428 rpm Year of manufacture: 2005 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 130 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 98,8 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 28,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Aalborg B.V. Ohmweg 8 3208 KE Spijkenisse The Netherlands |
|
Electric installations |
1x Plant 450/220 V - 713 kVA 1x Plant 450/220 V - 713 kVA 1x Plant 450/220 V - 713 kVA 1x Plant 450 V - 1.750 kVA 1x Plant 450 V - 687,5 kVA 1x Plant 24 V - 120 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Shaft generator |
1x AVK - 1.750 kVA / 1.400 ekW - 440 Volt |
|
Generators |
3x MAN-B&W 6L16/24 - 4 stroke 6 cylinder 160 x 240 mm diesel engine each 660 kW connected with generators each 713 kVA / 570 ekW - 440 Volt |
|
Emergency + harbour gen. |
1x Diesel generatorset 687,5 kVA / 550 kW |
|
Batteries |
1x Battery for automation 300 Ah |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram - 700 kW / 952 bhp, forward |
|
Cargo hold capacity |
Grain/bale: 16.000 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m Diameter: 60 mm |
|
Gear |
Gearless |
|
Crew size |
14 |
|
Manager |
Freese Shipping GmbH & Co. KG |
|
Owner |
MS "MAGNUS F" Kai Freese GmbH & Co. KG An der Werft 4 21680 Stade Federal Republic of Germany |
|
Renamed |
09/2020 Astrid L Antigua & Barbuda, St. John’s - Call sign: V2BR4 Manager: Hermann Lohmann Schiffahrtsverwaltung GmbH Owner: Hermann Lohmann Schiffahrts GmbH & Co. KG MS "ASTRID L" |
|
Last update |
01 January 2021 |
