Westerschelde 27 July 2016 |
|
Name |

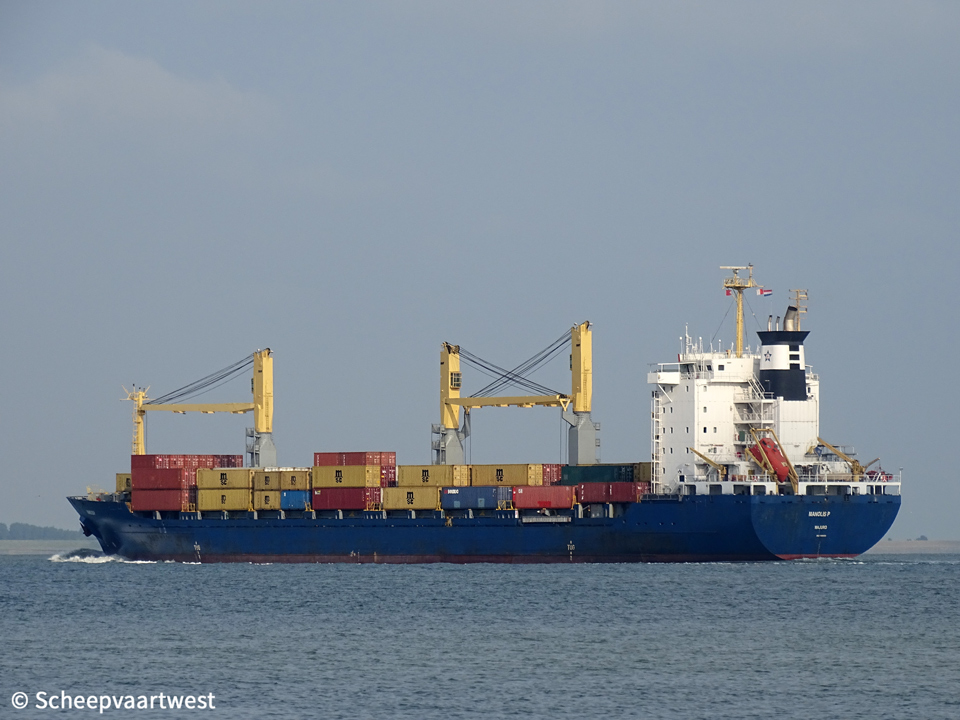

MANOLIS P |
|
Previous names |
1995 build as: CCNI Anakena 03/1995 - 01/1996 Birte Ritscher 01/1996 - 05/1996 CCNI Anakena 05/1996 - 04/1998 Zim Argentina 04/1998 - 12/1998 TNX Express 12/1998 - 11/2000 Kaduna 11/2000 - 10/2002 Cala Piedad 10/2002 - 04/2007 Birte Ritscher |
|
Type |
Cellular containership |
|
IMO-number |
9101493 |
|
Call sign |
V7MF5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
14.962 t Suez: 15.463 t Panama: 15.650,98 t |
|
DWT |
Summer: 20.346 t |
|
NT |
7.579 t Suez: 12.138,95 t Panama: 11.256,25 t |
|
Displacement |
27.236 t |
|
Lightship |
6.890 t |
|
Number of 20ft containers |
In hold: 534 On deck: 918 Total: 1.452 |
|
Container capacity 14t |
1.000 |
|
Reefer capacity |
150 |
|
Length |
168,10 m overall 156,71 m between perpendiculars |
|
Breadth |
25,00 m extreme |
|
Draught |
Max: 9,84 m |
|
Depth |
9,83 m moulded |
|
Speed |
Max: 19,0 knots |
|
Built |
1995 |
|
Keel laid |
11/07/1994 |
|
Launch date |
11/11/1994 |
|
Date of completion |
31/03/1995 |
|
Builder |
Kvaerner Warnow Werft GmbH Rostock Germany |
|
Yard number |
431 |
|
Hull material |
Steel |
|
Main engine |
1x Sulzer/DMR 7RTA58 - 7 cylinder combustion engine 11.130 kW / 15.132 bhp at 127,0 rpm Builder: Rostock Dieselmotor |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x Type DG 2158/16 - 1.000 kW / 1.250 kVA |
|
Generators |
3x Krupp MaK 6M20 main diesel generatorsets each 884 kW |
|
Emergency generator |
1x MAN D2866E diesel generatorset |
|
Bow thruster |
750 kW |
|
Number of holds |
6 |
|
Hold capacity |
Grain: 26.102 m³ |
|
Hold ventilation |
Mechanical 6 changes/h |
|
Hatch coamings |
8 |
|
Hatch cover |
22 Pcs, Pontoon type |
|
Tank capacities |
Ballast: 5.652,5 m³ |
|
Anchor equipment |
Length: 606,80 m Diameter: 62 mm |
|
Cargo gear |
3x Deck cranes - SWL 40,0 t each Outreach: 28,00 m |
|
Manager |
Eurobulk Ltd. 4, Messogiou & Evropis Str. 15124 Maroussi Greece |
|
Registered owner |
Manolis Shipping Limited c/o Eurobulk Ltd. 4, Messogiou street & Evropis street Marousi 15124 Athens Greece |
|
Scrapped |
02/07/2020 Beached at Gadani - Pakistan |
|
Latest data adjustment |
24 August 2020 |
