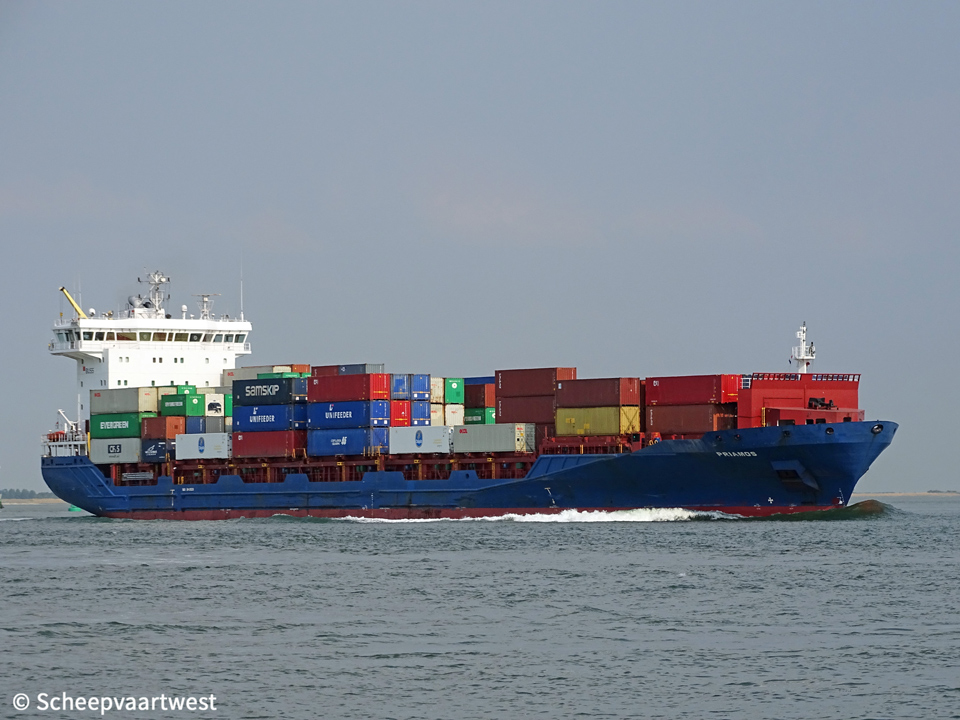

Priamos 01

Westerschelde 16 July 2018



Name

PRIAMOS

Previous names

Launch as: Grani

2011 - 06/2014 Mathis

Type

Cellular containership

IMO-number

9412531

Call sign

V2EV8

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

11.550

DWT

Summer: 12.300 t

NT

5.839 t

Number of 20ft containers

1.025

Container capacity 14t

635

Reefer capacity

231

Length

157,71 m overall

147,60 m between perpendiculars

Breadth

23,54 m extreme

23,20 m moulded

Draught

Max: 8,60 m

Forecastle

9,81 m

Poop

10,00 m

Bridge

27,62 m

Depth

11,50 m

Speed

Max: 18,3 knots

Built

2011

Keel laid

06/09/2008

Launch date

05/11/2010

Date of completion

10/01/2011

Builder

Fujian Mawei Shipbuilding Ltd.
Mawei
China

Yard number

VMW431-17

Hull material

Steel

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 9.000 kW / 12.240 bhp at 500 rpm

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Controllable pitch propeller - aft at 113,0 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 37,0 m²

Builder: PWT Prozess-Wärmeträgertechnik GmbH

1x Thermal oil heater, exhaust heated - 10,0 bar

Heating surface: 183,0 m²

Builder: Saacke Qingdao Marine Boiler Co., Ltd.

Shaft generator

1x 1.440 kW / 1.800 kVA

Generators

2x ZJMD/MAN B&W 7L28/32H diesel generatorsets each 1.370 kW / 1.715,5 kVA

Emergency generator

1x Cummins VTA 28-D(M) diesel generatorset 410 kW / 687,5 kVA

Batteries

2x Batteries for start emergency engine each 210 Ah

2x Batteries for UPS radio each 135 Ah

2x Batteries for automation each 102 Ah

2x Batteries for UPS navigation each 85 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

1x Transverse thruster 400 kW, aft

Number of holds

3

Number of hatches

3

Tank capacities

Ballast: 4.809,3 m³

Anchor equipment

3x Anchors weight each 5.250 kg

Length: 577,50 m

Diameter: 56 mm

Crew size

17

Manager

Leonhardt & Blumberg Shipmanagement GmbH & Co. KG
Neumühlen 13
22763 Hamburg
Germany

Registered owner

MS "PRIAMOS" Schiffahrtsgesellschaft mbH & Co. KG

Latest data adjustment

05 May 2019
